Tractor · 2014Unverified

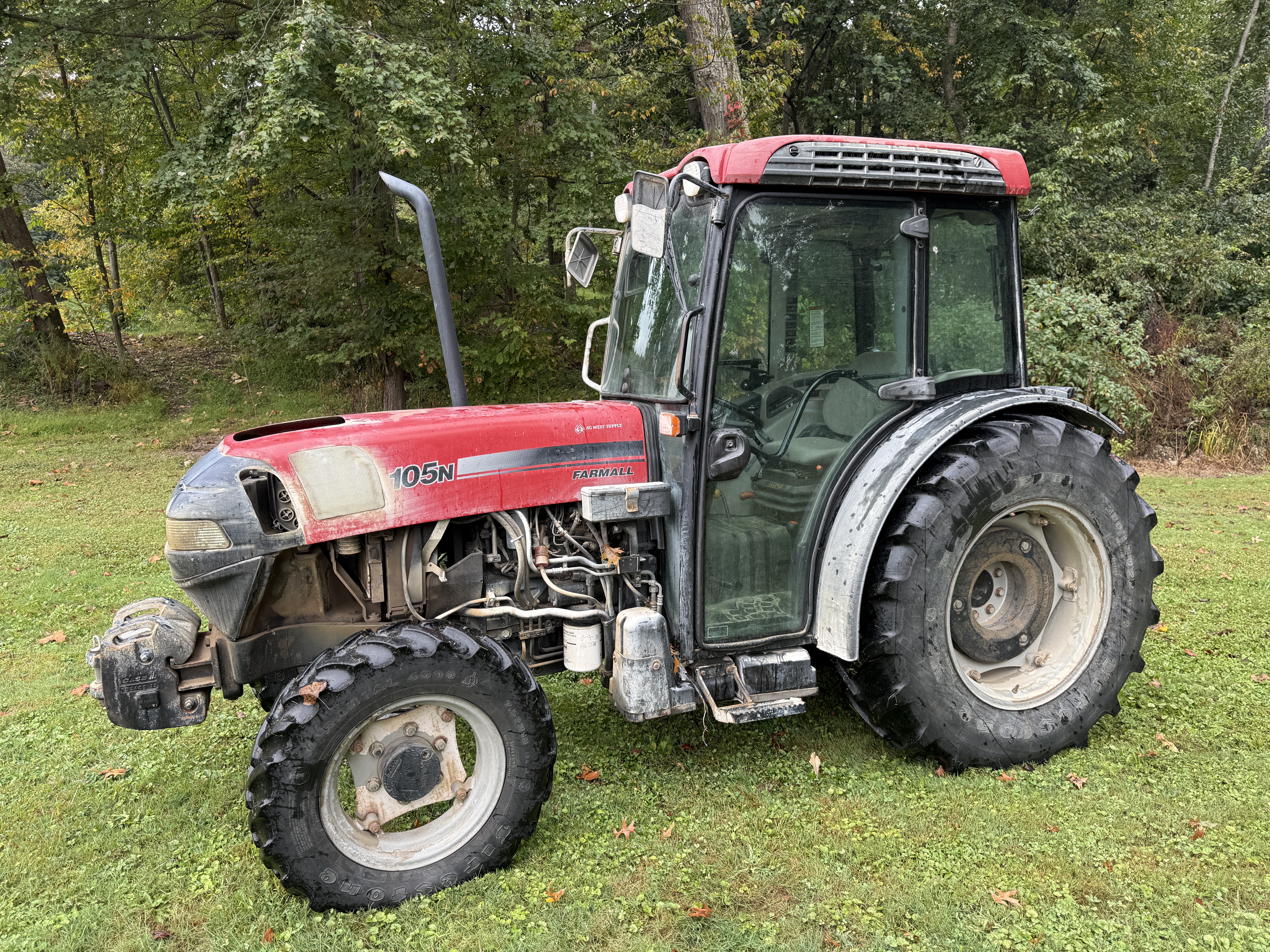

CaseIH Farmall 105N

Name: CaseIH Farmall 105N
Brand: CaseIH

CaseIH Farmall 105N — Farmall N Series · 106 hp. Reference specifications; pending source verification.

The CaseIH Farmall 105N is a tractor model rated at approximately 106 hp, a mid-range figure for its class. This model was in production from 2014 to 2016. It features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The operating weight of the CaseIH Farmall 105N is listed as 5820 to 6107 pounds, and it is suited to operations ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

106 hp

Weight

5820 to 6107 pounds

Catalogue coverage

Variants represented

Richest spec table

66 rows

Recorded power

106 hp

Recorded weight

2639 kg

Transmissions

16-speed mechanical shuttle

Production years

2014-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Orchard/Vineyard tractorReference

Original price was $53,125 in 2014 with ROPSReference

Four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulicReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post foldable mid ROPS. Cab optional with air-conditioning.Reference

Engine

FPT 4.5L 4-cyl dieselReference

Fuel tank75.7 LReference

Engine (gross)79.0 kWReference

FPTReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IIIReference

Power (gross)79.0 kWReference

Fuel systemmechanical direct injectionReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed mechanical shuttleReference

16-speed power shuttleReference

32-speed power shuttleReference

Typemechanical shuttleReference

Gears16 forward and reverseReference

Clutchdry discReference

Four speeds in four ranges with synchronized shuttle shifting.Reference

Typepower shuttleReference

Clutchwet discReference

Gears32 forward and 16 reverseReference

PTO & Hydraulics

PTO (claimed)68.6 kWReference

Typeopen centerReference

Rear valves2 or 3Reference

Pump flow64.0 lpmReference

Total flow99.9 lpmReference

Steering flow34.8 lpmReference

Rear TypeIIReference

Controllower link draft sensingReference

Rear lift (at 24"/610mm)1995 kgReference

Rear PTOindependentReference

Clutchhydraulic dry discReference

Rear PTO Type540Reference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase217 cmReference

Weight5820 to 6107 poundsReference

Front tire7.50R18Reference

Rear tire14.9R28Reference

Ag front7.50R18Reference

Ag rear14.9R28Reference

Ag rear380/85R28Reference

Width135 cmReference

Weight2639 kgReference

Weight2770 kgReference

Flange rear axleReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA800Reference

Battery volts12Reference

CaseIH Farmall 105N Height

Hood129 cmReference

ROPS232 cmReference

Cab230 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
