Tractor · 2008Unverified

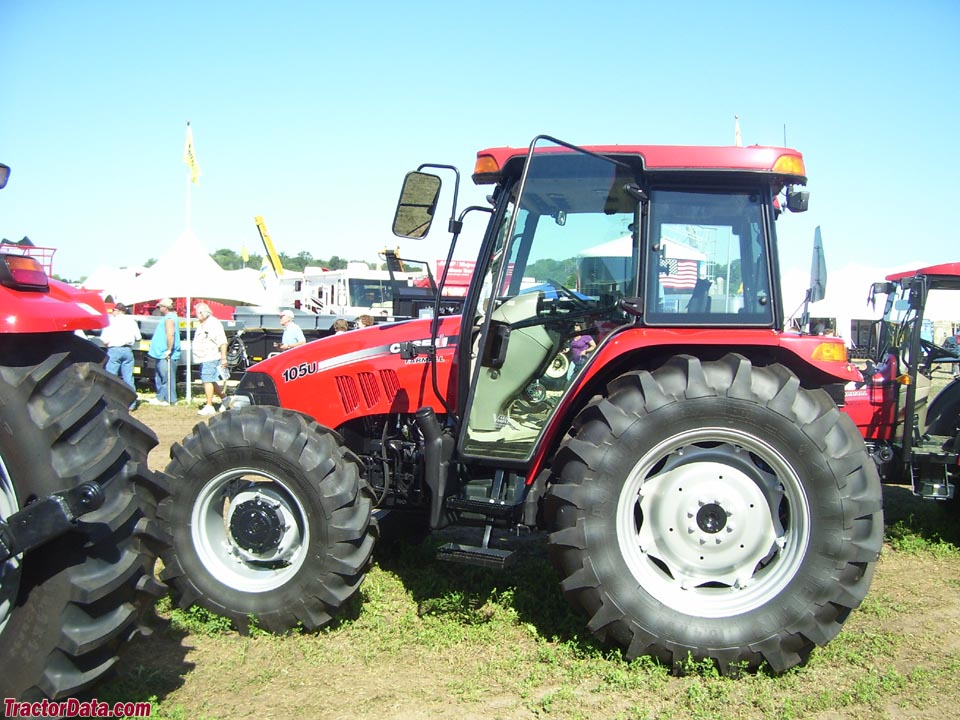

CaseIH Farmall 105U

Name: CaseIH Farmall 105U
Brand: CaseIH

CaseIH Farmall 105U — Model year 2008-20122013-2016 · 105 hp. Reference specifications; pending source verification.

The CaseIH Farmall 105U is a tractor with a rated power output of 105 hp, positioning it centrally within its class. Manufactured from 2008 to 2016, it is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which transmits power via mechanical front-wheel drive with a hydrostatic transmission. Weighing between 7.275 and 7936 pounds, this tractor is suitable for tasks covering areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

105 hp

Max power

70.4 kW

Weight

7.275 to 7936 pounds

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

105 hp

Transmissions

12-speed mechanical shuttle

Production years

2008-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Jesi, ItalyReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Straddle deck platform with ROPS; cab optionalReference

Engine

FPT 4.5L 4-cyl dieselReference

Fuel tank126.8 LReference

Engine (gross)78.3 kWReference

FPTReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier 3Reference

Power (gross)78.3 kWReference

Air cleanerdual dry elementsReference

Pre-heatinggrid heaterReference

Compression17:1Reference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Max power70.4 kWReference

Power at rated engine speed69.5 kWReference

Transmission

12-speed mechanical shuttleReference

20-speed mechanical shuttle with creeperReference

12-speed power shuttleReference

24-speed power shuttle with partial power shiftReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

Three ranges with four gears per range. Left-hand reverser requires use of clutch to change directionsReference

Typemechanical shuttle with creeperReference

Gears20 forward and 12 reverseReference

Typepower shuttleReference

Typepower shuttle with partial power shiftReference

Gears24 forward and reverseReference

Clutchwet discReference

12x12 power shuttle with high-low power shift.Reference

PTO & Hydraulics

PTO (claimed)67.1 kWReference

PTO (tested)70.4 kWReference

Typeopen centerReference

Valves2 rear, 1 mid (optional)Reference

Pump flow60.9 lpmReference

Total flow100.3 lpmReference

Steering flow39.4 lpmReference

Rear Type2Reference

Controlmechanical lower-link draft control, optional electronic draft control (EDC)Reference

Rear lift (at 24"/610mm)2605 kgReference

Rear lift (at 24"/610mm)2923 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed69.9 kWReference

Dimensions

Wheelbase234 cmReference

Weight7.275 to 7936 poundsReference

Shipping3099 kgReference

Shipping3400 kgReference

Shipping3 kgReference

Shipping3599 kgReference

CaseIH Farmall 105U attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA960Reference

Battery volts12Reference

Attachment overview

CaseIH L730 loaderReference

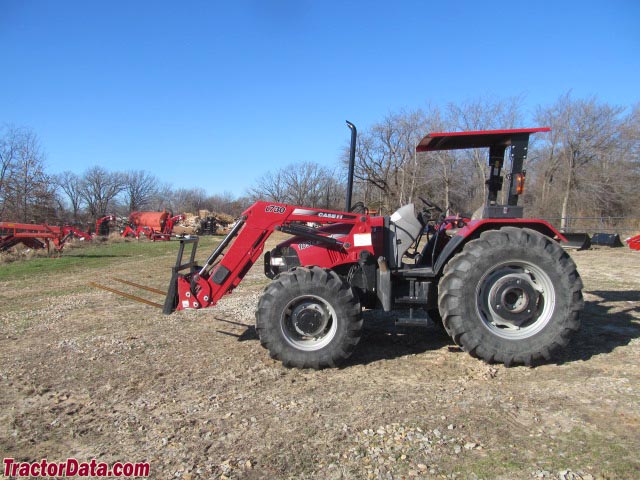

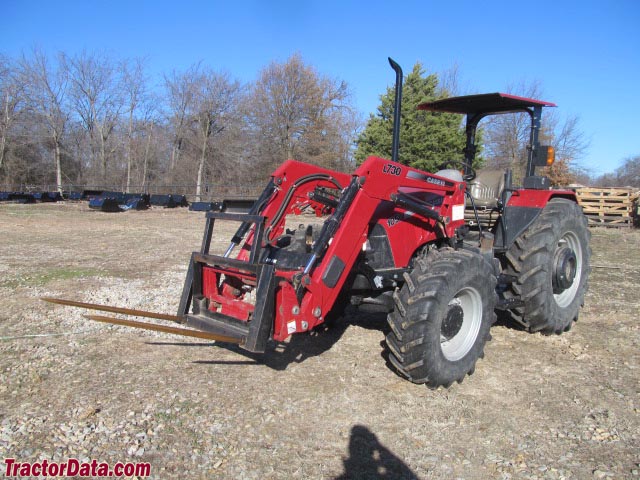

CaseIH L740 loaderReference

CaseIH Farmall 105U Height

ROPS276 cmReference

Cab256 cmReference

Exhaust298 cmReference

Test results

Diesel 12-speed 4WDDecember 2008 - February 2009, Link: OCED Tractor Test 2526 fileReference

PTO performanceReference

Fuel use22.0 l/hourReference

Fuel use22.3 l/hourReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
