Tractor · 2014Unverified

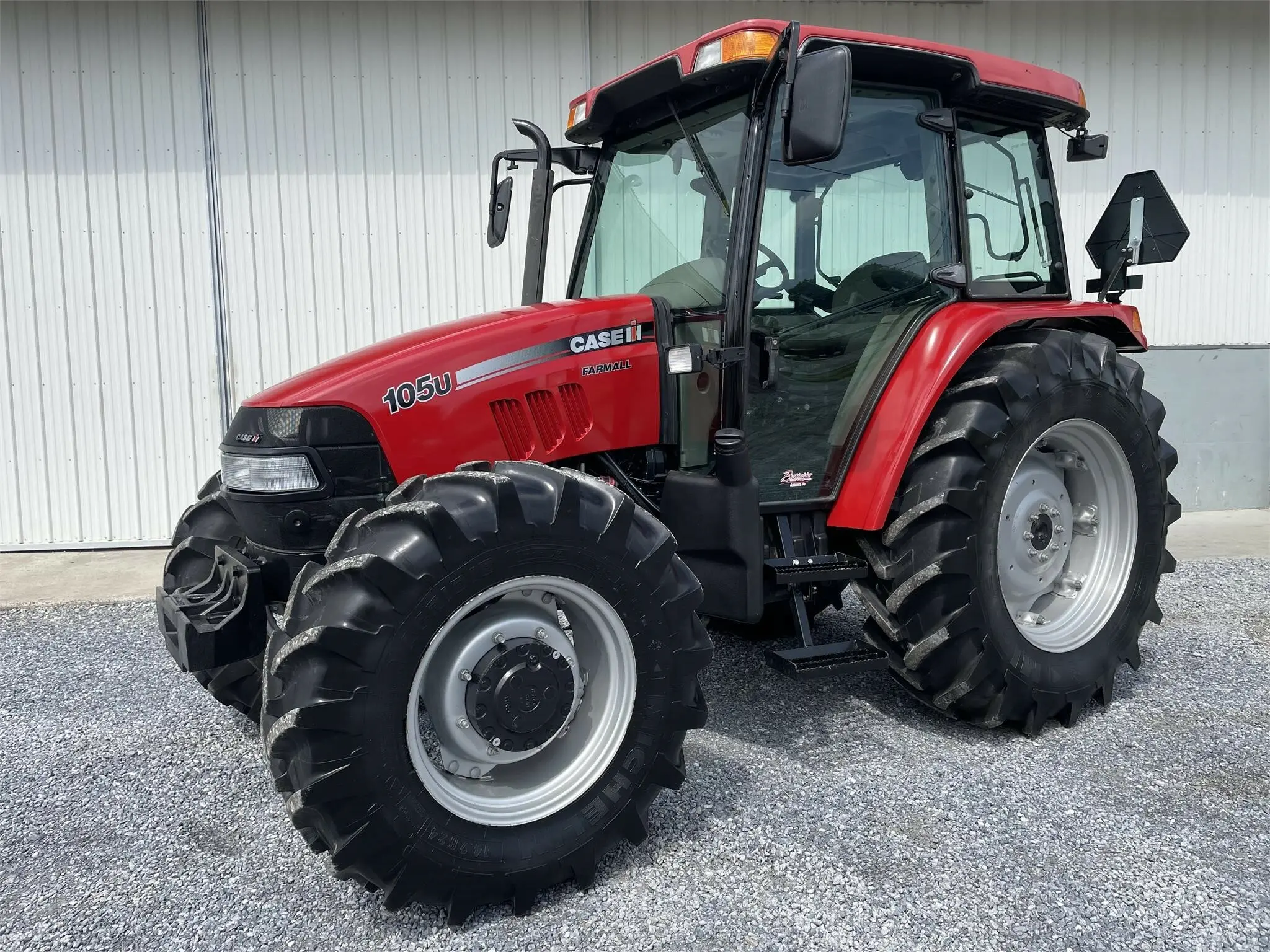

CaseIH Farmall 105V
CaseIH Farmall 105V — Farmall Series · 106 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
106 hp
Weight
5979 to 6151 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Original price$53,125 (2014 Mech Shuttle ROPS )Reference
Original price$67,691 (2014 32-speed Cab )Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post foldable mid ROPS. Cab optional.Reference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank73.1 LReference
Engine (gross)79.0 kWReference
FPTReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIIReference
Power (gross)79.0 kWReference
Fuel systemmechanical direct injectionReference
Air cleanerdry dual elementReference
Pre-heatinggrid heaterReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed mechanical shuttleReference
16-speed power shuttleReference
32-speed power shuttleReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Clutch280mm mechnical dry discReference
Typepower shuttleReference
Clutch133mm electro-hydraulic wet discsReference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
PTO (claimed)68.6 kWReference
Typeopen centerReference
Pressure190.0 barReference
Rear valves2 or 3Reference
Pump flow64.0 lpmReference
Total flow99.9 lpmReference
Steering flow34.8 lpmReference
Rear TypeIIReference
Controlmechanical draft controlReference
Rear lift (at 24"/610mm)1834 kgReference
Rear PTOindependentReference
Clutchhydraulic dry discReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase217 cmReference
Weight5979 to 6151 poundsReference
Front tire200/70R16Reference
Rear tire360/70R24Reference
Ag front200/70R16Reference
Ag rear360/70R24Reference
Width107 cmReference
Weight2712 kgReference
Weight2790 kgReference
Flange rear axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA800Reference
Battery volts12Reference
CaseIH Farmall 105V Height
Hood129 cmReference
ROPS225 cmReference
Cab214 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
