Tractor · 2012Unverified

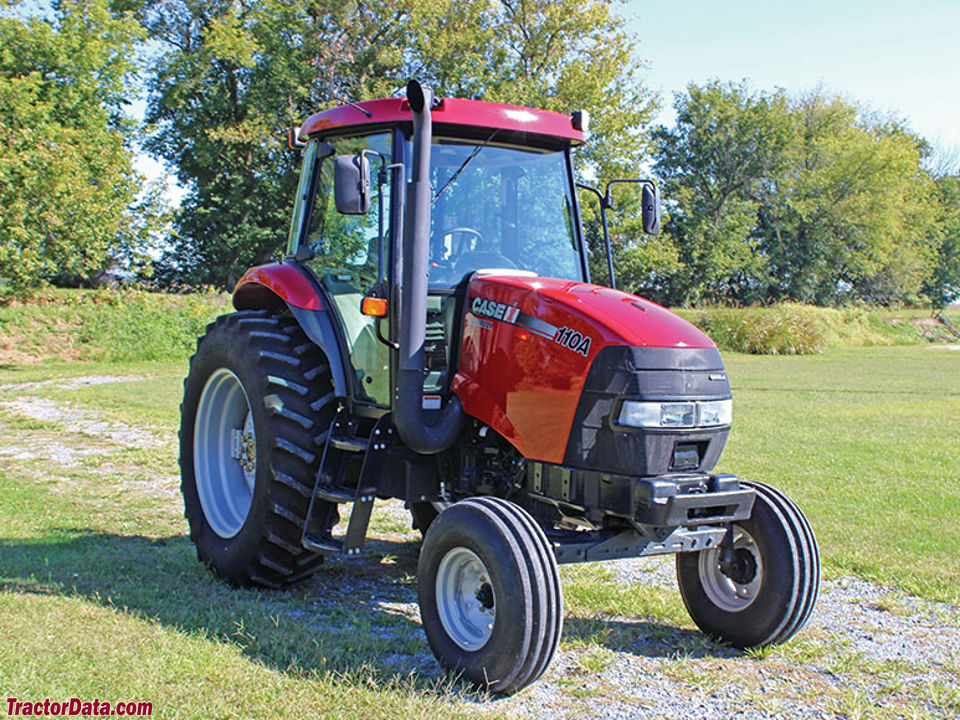

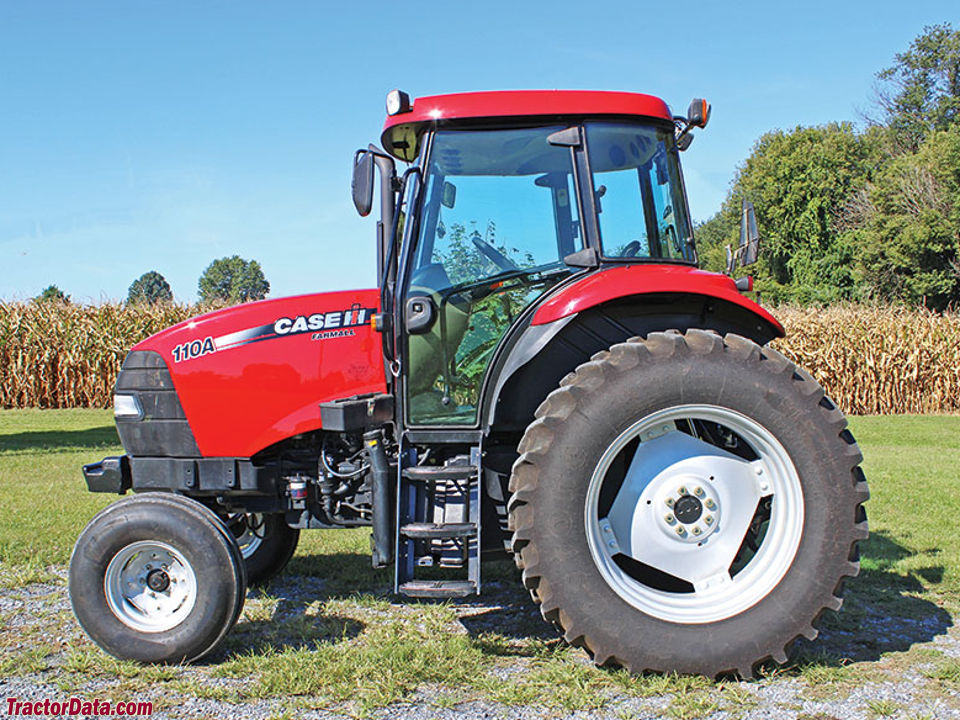

CaseIH Farmall 110A

Name: CaseIH Farmall 110A
Brand: CaseIH

CaseIH Farmall 110A — Model year 2012-20142015-2025 · 110 hp. Reference specifications; pending source verification.

The CaseIH Farmall 110A is a tractor with an engine rating of 110 hp, which falls within the mid-range of its class. This model was manufactured from 2012 to 2025. It features a 4-cylinder turbocharged diesel engine, liquid-cooled, and four-wheel drive with an 8-speed gearbox. The operating weight of the Farmall 110A ranges from 8003 to 9348 pounds, and it is suitable for operations covering areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

110 hp

Max power

70.2 kW

Weight

8003 to 9348 pounds

Catalogue coverage

Variants represented

Richest spec table

74 rows

Recorded power

110 hp

Transmissions

8-speed power shuttle

Production years

2012-2025

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post foldable ROPS. Cab optional with air-conditioning.Reference

Engine

FPT 4.5L 4-cyl dieselReference

Engine (gross)82.0 kWReference

Drawbar (tested)60.6 kWReference

FPTReference

turbocharged dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IIIReference

Power (gross)82.0 kWReference

Fuel systemmechanical injectionReference

Compression17.5:1Reference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity11.0 LReference

Max power70.2 kWReference

Power at rated engine speed61.2 kWReference

Max power60.6 kWReference

Transmission

8-speed power shuttleReference

8-speed synchronized shuttleReference

16-speed power shuttleReference

Typepower shuttleReference

Gears8 forward and reverseReference

Typesynchronized shuttleReference

TransmissionHi-LoReference

Gears16 forward and 8 reverseReference

Adds under-drive to power shuttle transmission.Reference

PTO & Hydraulics

PTO (claimed)67.1 kWReference

PTO (tested)70.2 kWReference

Hydraulic system62.1 LReference

Typeopen centerReference

Capacity62.1 LReference

Valves2 to 4Reference

Pump flow83.3 lpmReference

Total flow117.3 lpmReference

Steering flow34.1 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)3265 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed70.1 kWReference

Capacities

Fuel151.4 LReference

Dimensions

2WD Wheelbase256 cmReference

4WD Wheelbase251 cmReference

Weight8003 to 9348 poundsReference

Flange rear axleReference

Bar rear axle78 by 2489 mmReference

2WD ROPS3630 kgReference

4WD ROPS3920 kgReference

2WD Cab3949 kgReference

4WD Cab4240 kgReference

CaseIH Farmall 110A attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA950Reference

Battery volts12Reference

Test results

Diesel 8-speed 4WDDecember 4 - 6, 2012Link: OCED Tractor Test 2053A fileReference

PTO performanceReference

Fuel use22.3 l/hourReference

Fuel use22.0 l/hourReference

Fuel use23.8 l/hourReference

Drawbar performanceReference

Fuel use24.6 l/hourReference

Max pull3458 kgReference

Speeds

With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
