Tractor · 2024Unverified

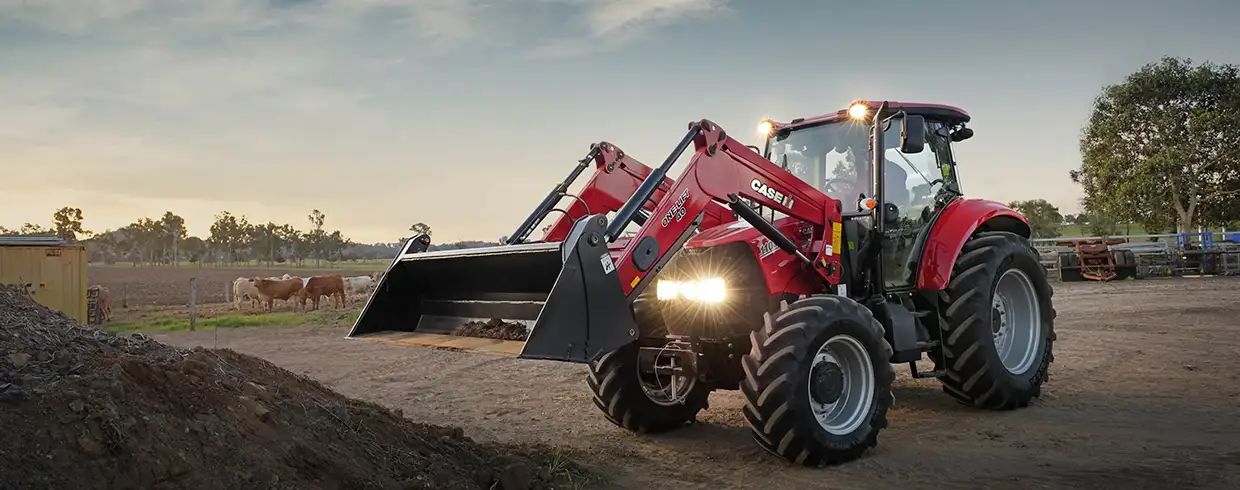

CaseIH Farmall 110M
CaseIH Farmall 110M — Farmall M Series · 93 hp. Reference specifications; pending source verification.
The CaseIH Farmall 110M is a tractor with a rated power output of 93 horsepower, which falls within the mid-range category for its class. It was manufactured in 2024. The tractor features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with a four-wheel drive system and a powershift transmission. It is suitable for operations spanning 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
93 hp
Transmissions
16-speed partial power shift
Production years
2024-2024
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
FPT 3.4L 4-cyl dieselReference
Engine82.0 kWReference
FPTReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsTier IVReference
Power82.0 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed partial power shiftReference
TransmissionActiveDrive 4Reference
Typepartial power shiftReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)69.4 kWReference
Controlelectronic draft controlReference
Rear lift3995 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
