Tractor · 2017Unverified

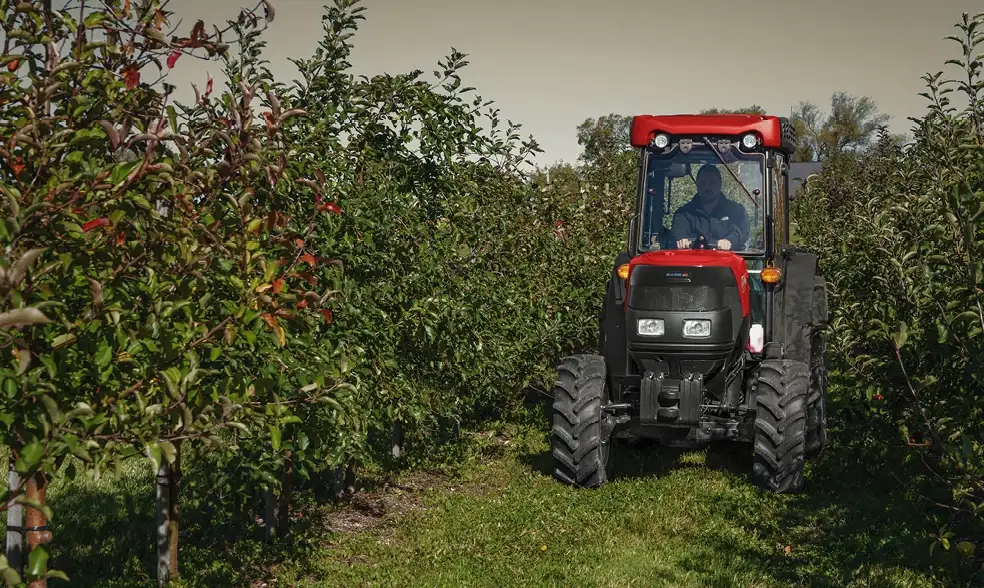

CaseIH Farmall 110N
CaseIH Farmall 110N — Farmall N Series · 106 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
106 hp
Weight
5498 to 6292 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Orchard/Vineyard tractorReference
Original price$66,990 (2019 Syncro ROPS 2WD )Reference
Original price$83,151 (2019 Hi-Lo Cab 4WD )Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
FPT 3.4L 4-cyl dieselReference
Fuel tank71.9 LReference
Engine (gross)79.0 kWReference
FPTReference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsInterim Tier IVReference
Power (gross)79.0 kWReference
Fuel systemelectronic high-pressure common railReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed partially synchronizedReference
16-speed power shiftReference
32-speed Hi-Lo power shiftReference
Typepartially synchronizedReference
Gears16 forward and reverseReference
Four synchronized gears in four non-synchronized ranges with mechanical shuttle.Reference
Typepower shiftReference
TypeHi-Lo power shiftReference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
PTO (claimed)69.4 kWReference
Typeopen centerReference
Rear valves2 or 3Reference
Mid valves2Reference
Pump flow64.0 lpmReference
Pump flow79.9 lpmReference
Steering flow43.1 lpmReference
Rear TypeII/IReference
Rear lift (at ends)2600 kgReference
Rear lift (at 24"/610mm)1714 kgReference
Front HitchoptionalReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase243 cmReference
Weight5498 to 6292 poundsReference
Front tire6.00-16Reference
2WD Rear tire14.9R28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 14.9R28Reference
4WD Standard tires (ag)Front: 7.50R18. Rear: 14.9R28Reference
ROPS Length377 cmReference
Cab Length403 cmReference
Width134 cmReference
Height (ROPS)228 cmReference
Height (cab)232 cmReference
Ground clearance28 cmReference
Flange rear axleReference
2WD ROPS2618 kgReference
2WD Cab2493 kgReference
4WD ROPS2854 kgReference
4WD Cab2760 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
