Tractor · 2020Unverified

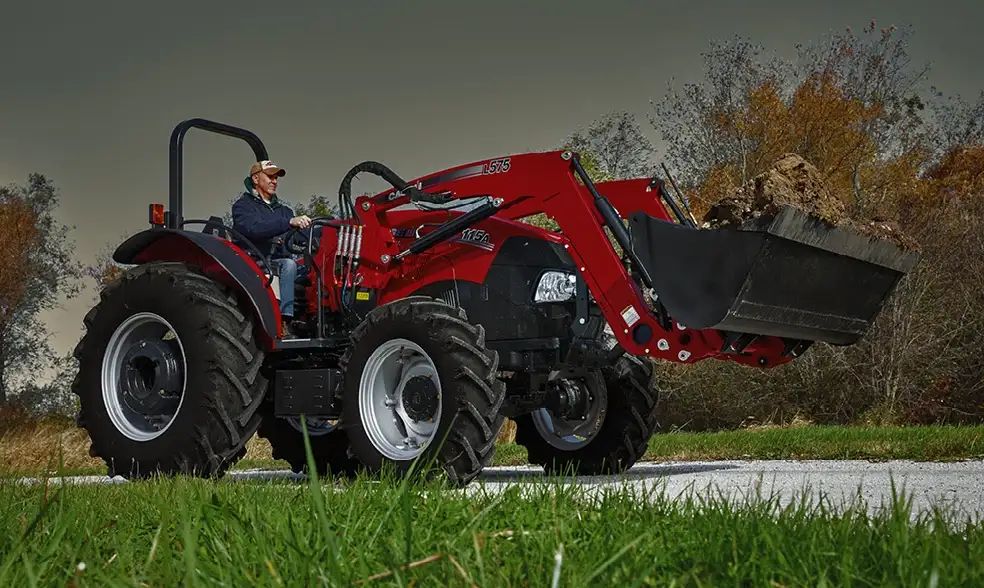

CaseIH Farmall 115A

CaseIH Farmall 115A — Utility tractor · 100 hp. Reference specifications; pending source verification.

The CaseIH Farmall 115A is a tractor model with an approximate power output of 100 hp, falling within the mid-range of its class. It was manufactured in 2020. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a 12-speed gearbox. It has an operating weight of 7304 to 8492 pounds, suitable for operations covering 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
100 hp
Weight
7304 to 8492 pounds

Catalogue coverage

Variants represented
2
Richest spec table
66 rows
Recorded power
100 hp
Transmissions
12-speed power shuttle
Production years
2020-2020
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

FPT 3.4L 4-cyl dieselReference
ROPS Fuel tank90.1 LReference
Cab Fuel tank109.8 LReference
Exhaust fluid (DEF)11.0 LReference
Engine89.5 kWReference
FPT F5GReference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsTier IVReference
Power89.5 kWReference
Fuel systemelectronic high-pressure common rail direct injectionReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference

Transmission

12-speed power shuttleReference
20-speed creeperReference
Typepower shuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears20 forward and reverseReference

PTO & Hydraulics

PTO (claimed)74.6 kWReference
Typeopen centerReference
Rear valves2 or 3Reference
Pump flow64.0 lpmReference
Pump flow81.8 lpmReference
Rear TypeII/IReference
Controltop-link draft sensingReference
Rear lift (at ends)1999 kgReference
Rear lift (at 24"/610mm)1451 kgReference
Rear lift (at 24"/610mm)3499 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference

Dimensions

2WD Wheelbase231 cmReference
4WD ROPS Wheelbase213 cmReference
4WD Cab Wheelbase226 cmReference
Weight7304 to 8492 poundsReference
Front tire10.00-16Reference
2WD Rear tire18.4-30Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-30Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4-30Reference
2WD Optional tires (ag)Front: 7.5-16. Rear: 16.9-30Reference
4WD Optional tires (ag)Front: 10-16. Rear: 16.9-34Reference
2WD Length411 cmReference
4WD Length408 cmReference
Height (ROPS)261 cmReference
Height (cab)269 cmReference
Flange rear axleReference
2WD ROPS3313 kgReference
2WD Cab3707 kgReference
4WD ROPS3487 kgReference
4WD Cab3851 kgReference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
