Tractor · 2013Unverified
CaseIH Farmall 115C
CaseIH Farmall 115C — Farmall C Series · 99 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
99 hp
Max power
77.3 kW
Weight
3600 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
ROPS Brakesmechanical wet discReference
Cab Brakeshydraulic wet discReference
Two-post foldable ROPS. Cab optional with heat and air-conditioning.Reference
Engine
Fiat Powertrain Technologies (FPT) 3.4L 4-cyl dieselReference
Fuel tank114.7 LReference
Engine85.8 kWReference
Drawbar (tested)51.7 kWReference
Fiat Powertrain Technologies (FPT) F5HReference
turbocharged air-to-air aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsInterim Tier 4Reference
Emission controlcooled exhaust-gas recirculation (EGR)Reference
Power85.8 kWReference
Fuel systemelectronic high-pressure common rail direct injectionReference
Air cleanerdual dry elementReference
Pre-heatinggrid heaterReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Max power77.3 kWReference
Power at rated engine speed73.6 kWReference
Max power51.7 kWReference
Transmission
12-speed mechanical shuttleReference
12-speed power shuttleReference
20-speed creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four synhronized gears in three non-synchronized ranges. Mechanical shuttle shifting.Reference
Typepower shuttleReference
Four synhronized gears in three non-synchronized ranges. Power shuttle shifting.Reference
TypecreeperReference
Gears20 forward and 12 reverseReference
Additional creeper range added to the shuttle transmission.Reference
PTO & Hydraulics
PTO (claimed)73.1 kWReference
PTO (tested)77.3 kWReference
Typeopen centerReference
Valves1 or 2Reference
Pump flow48.8 lpmReference
Pump flow64.0 lpmReference
Rear TypeIIReference
Controlmechanical upper-link draft sensingReference
Rear lift (at 24"/610mm)2549 kgReference
Drawbarswinging drawbarReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000Reference
Power at rated PTO speed74.9 kWReference
Dimensions
4WD Wheelbase226 cmReference
Weight3600 kgReference
Rear tire16.9R34Reference
Ag rear16.9R34Reference
Length378 cmReference
Width210 cmReference
Height (ROPS)261 cmReference
Height (cab)254 cmReference
4WD Cab Weight3600 kgReference
Flange axle rear axleReference
2WD Front tread152 to 202 cmReference
4WD Front tread154 to 194 cmReference
Rear tread132 to 194 cmReference
CaseIH Farmall 115C attachments

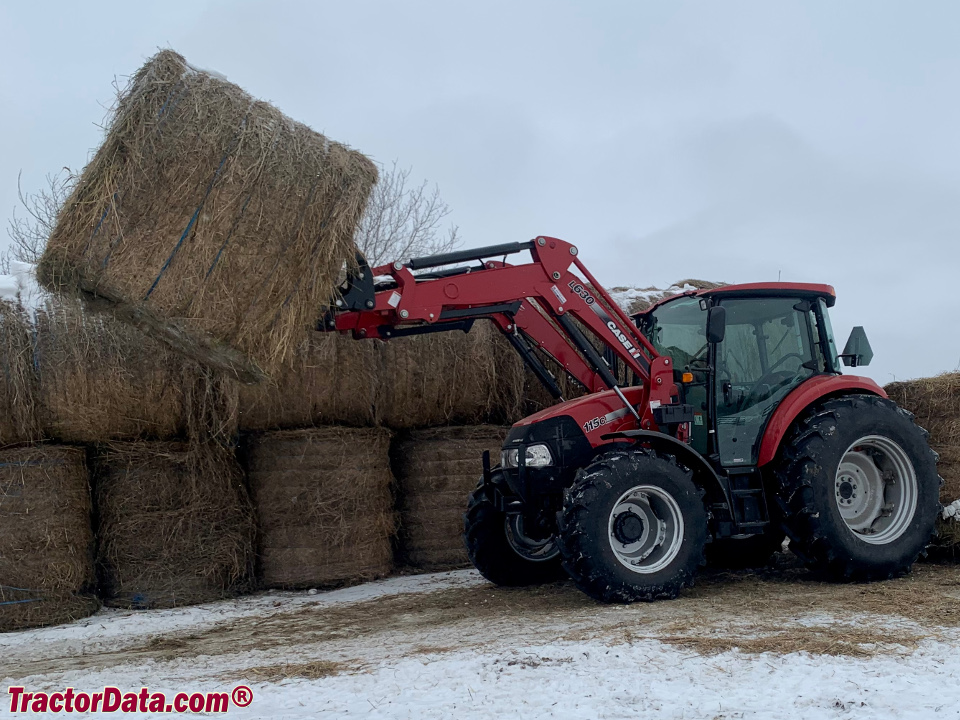

front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
ROPS Battery CCA730Reference
Cab Battery CCA800Reference
Battery volts121Reference
Attachment overview

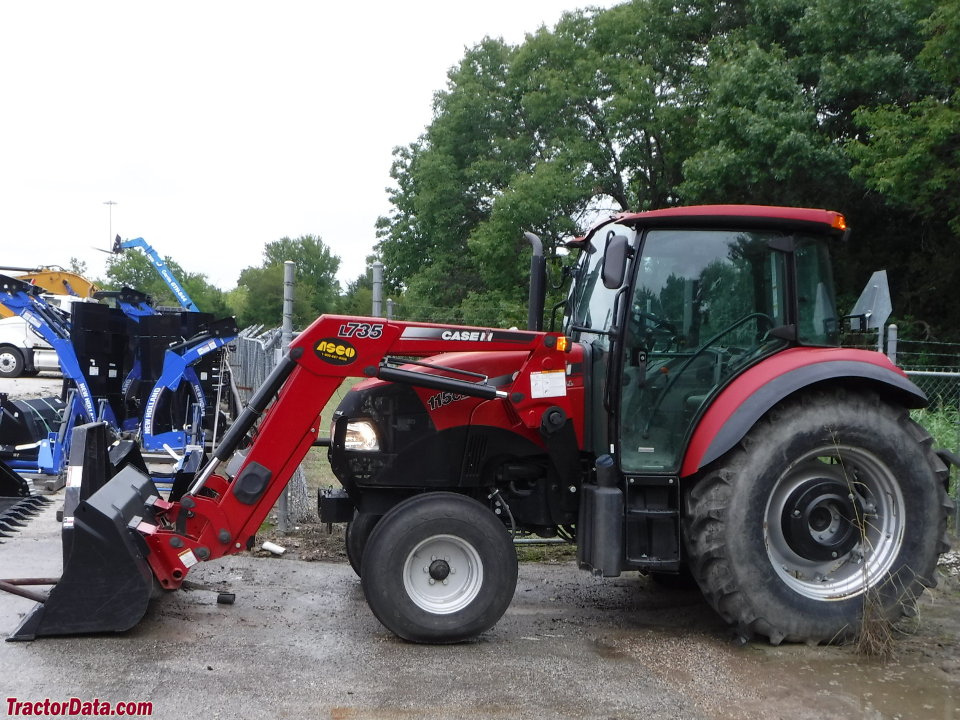

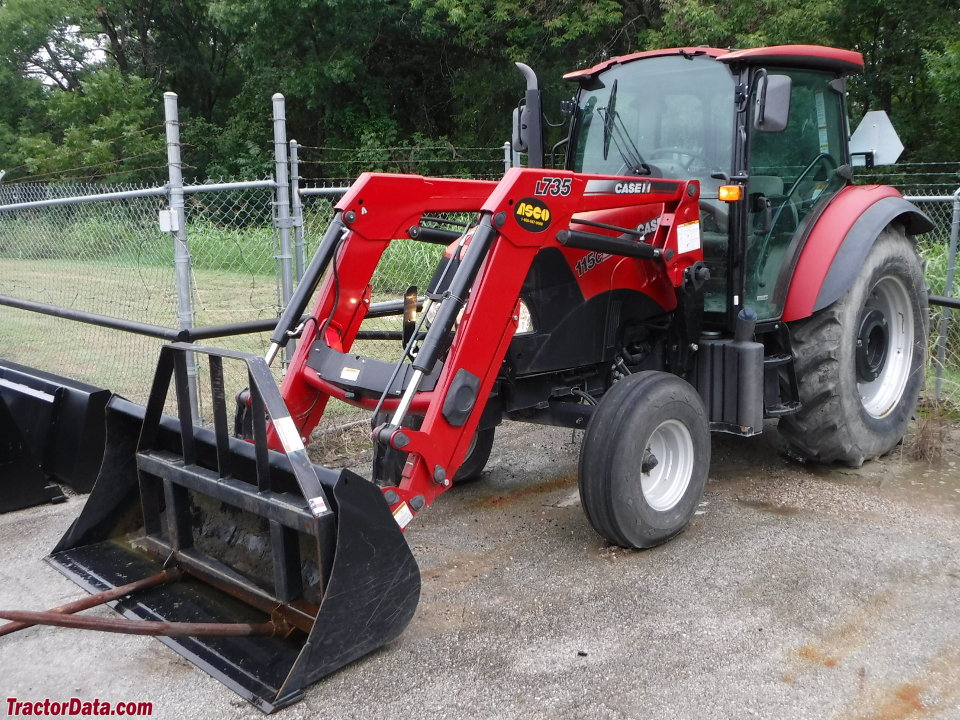

Case IH L735 NSL loaderReference
Case IH L735 MSL loaderReference
Test results
Diesel 12-speed 4WD CabMarch 2014 - April 2014, Link: OCED Tractor Test 2839 fileReference
PTO performanceReference
Fuel use22.3 l/hourReference
Fuel use23.5 l/hourReference
Fuel use23.1 l/hourReference
Drawbar performanceReference
Fuel use21.2 l/hourReference
Gear 3M used for power test.Reference
Max pull3073 kgReference
Gear 2M used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
