Tractor · 2013Unverified

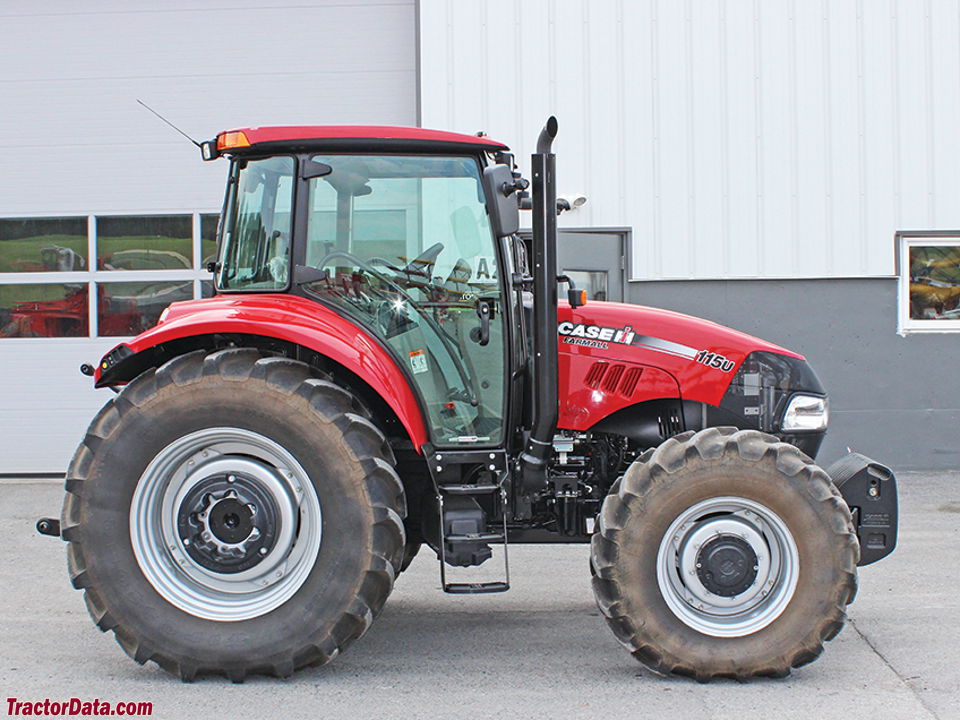

CaseIH Farmall 115U
CaseIH Farmall 115U — Farmall U Series · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Max power
78.1 kW
Weight
4250 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in ItalyReference
Original price was $90,922 in 2015Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab with air-conditioning.Reference
Variants
T5.115similar New Holland modelReference
Engine
FPT 3.4L 4-cyl dieselReference
Fuel tank140.0 LReference
Engine (gross)85.8 kWReference
Drawbar (tested)54.4 kWReference
FPTReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsInterim Tier IVReference
Power (gross)85.8 kWReference
Fuel systemelectronic high-pressure common railReference
Pre-heatingglow plugsReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Max power78.1 kWReference
Power at rated engine speed76.8 kWReference
Max power54.4 kWReference
Transmission
12-speed power shuttleReference
20-speed creeper power shuttleReference
24-speed two-speed power shiftReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Four synchronized gears in three non-synchronized ranges.Reference
Typecreeper power shuttleReference
Gears20 forward and reverseReference
Clutchhydraulic wet discReference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
Four synchronized gears in three non-synchronized ranges with a push-button two-speed high/low power shift in each gear. Power shuttle.Reference
PTO & Hydraulics
PTO (claimed)73.1 kWReference
PTO (tested)78.1 kWReference
Typeopen centerReference
Valves2 to 3Reference
Pump flow60.9 lpmReference
Pump flow79.9 lpmReference
Steering flow37.9 lpmReference
Steering flow43.1 lpmReference
Rear TypeIIReference
Controlelectronic draft controlReference
Rear lift (at ends)0 kgReference
Rear lift (at 24"/610mm)2899 kgReference
Rear lift (at 24"/610mm)5420 kgReference
DrawbarCat. II, swingingReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540EReference
Power at rated PTO speed78.1 kWReference
Dimensions
Wheelbase234 cmReference
Weight4250 kgReference
Front tire14.9R24Reference
Rear tire18.4R34Reference
Standard tires (ag)Front: 14.9R24. Rear: 18.4R34Reference
Length416 cmReference
Width210 cmReference
Height (cab)261 cmReference
Shipping weight4250 kgReference
Max weight5049 kgReference
Flange rear axleReference
CaseIH Farmall 115U attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery volts12Reference
Attachment overview
Case IH L735 loaderReference
Case IH L745 loaderReference
Test results
Diesel 24-speed 4WDMarch 2013 - July 2013, Link: OCED Tractor Test 2803 fileReference
PTO performanceReference
Fuel use23.1 l/hourReference
Fuel use24.2 l/hourReference
Drawbar performanceReference
Fuel use24.6 l/hourReference
Gear 2MH used for power test.Reference
Max pull3733 kgReference
Gear 2ML used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
