Tractor · 2012Unverified

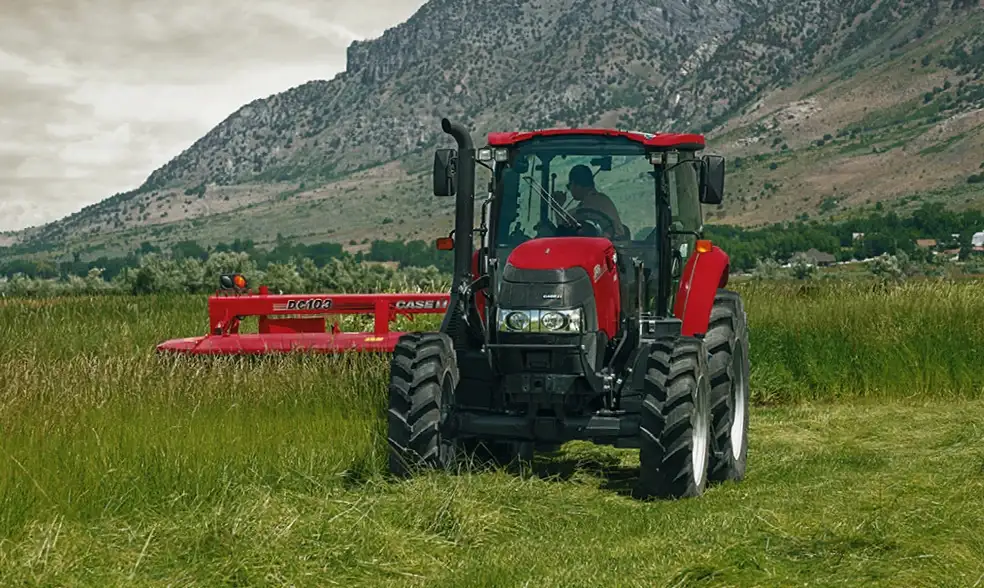

CaseIH Farmall 120A

CaseIH Farmall 120A — Model year 2012-20142015-2025 · 118 hp. Reference specifications; pending source verification.

The CaseIH Farmall 120A is a tractor model with a rated output of 118 horsepower, placing it in the middle of its class for power. It was manufactured from 2012 to 2025. It features a 4-cylinder turbocharged diesel liquid-cooled engine, which powers the four-wheel drive system via an 8-speed gearbox. The listed weight ranges from 8091 to 9524 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
118 hp
Max power
77.9 kW
Weight
8091 to 9524 pounds

Catalogue coverage

Variants represented
2
Richest spec table
71 rows
Recorded power
118 hp
Transmissions
8-speed power shuttle
Production years
2012-2025
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference

Engine

FPT 4.5L 4-cyl dieselReference
Engine (gross)88.0 kWReference
Drawbar (tested)64.6 kWReference
FPTReference
turbocharged dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIIReference
Power (gross)88.0 kWReference
Fuel systemmechanical injectionReference
StarterelectricReference
Starter volts12Reference
Oil capacity11.0 LReference
Max power77.9 kWReference
Power at rated engine speed72.5 kWReference
Max power64.6 kWReference

Transmission

8-speed power shuttleReference
8-speed synchronized shuttleReference
16-speed power shuttleReference
Typepower shuttleReference
Gears8 forward and reverseReference
Typesynchronized shuttleReference
TransmissionHi-LoReference
Gears16 forward and 8 reverseReference
Adds under-drive to power shuttle transmission.Reference

PTO & Hydraulics

PTO (claimed)71.6 kWReference
PTO (tested)77.9 kWReference
Hydraulic system62.1 LReference
Typeopen centerReference
Capacity62.1 LReference
Valves2 to 4Reference
Pump flow83.3 lpmReference
Total flow117.3 lpmReference
Steering flow34.1 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)3265 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed75.5 kWReference

Capacities

Fuel151.4 LReference

Dimensions

2WD Wheelbase256 cmReference
4WD Wheelbase251 cmReference
Weight8091 to 9524 poundsReference
Flange rear axleReference
Bar rear axle78 by 2489 mmReference
2WD ROPS3670 kgReference
4WD ROPS3999 kgReference
2WD Cab4030 kgReference
4WD Cab4320 kgReference

CaseIH Farmall 120A attachments

front-end loaderReference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA950Reference
Battery volts12Reference

Test results

Diesel 8-speed 4WDDecember 3 - 6, 2012Link: OCED Tractor Test 2052A fileReference
PTO performanceReference
Fuel use23.8 l/hourReference
Fuel use27.3 l/hourReference
Fuel use26.1 l/hourReference
Drawbar performanceReference
Max pull3491 kgReference

Speeds

With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
