Tractor · 2012Unverified

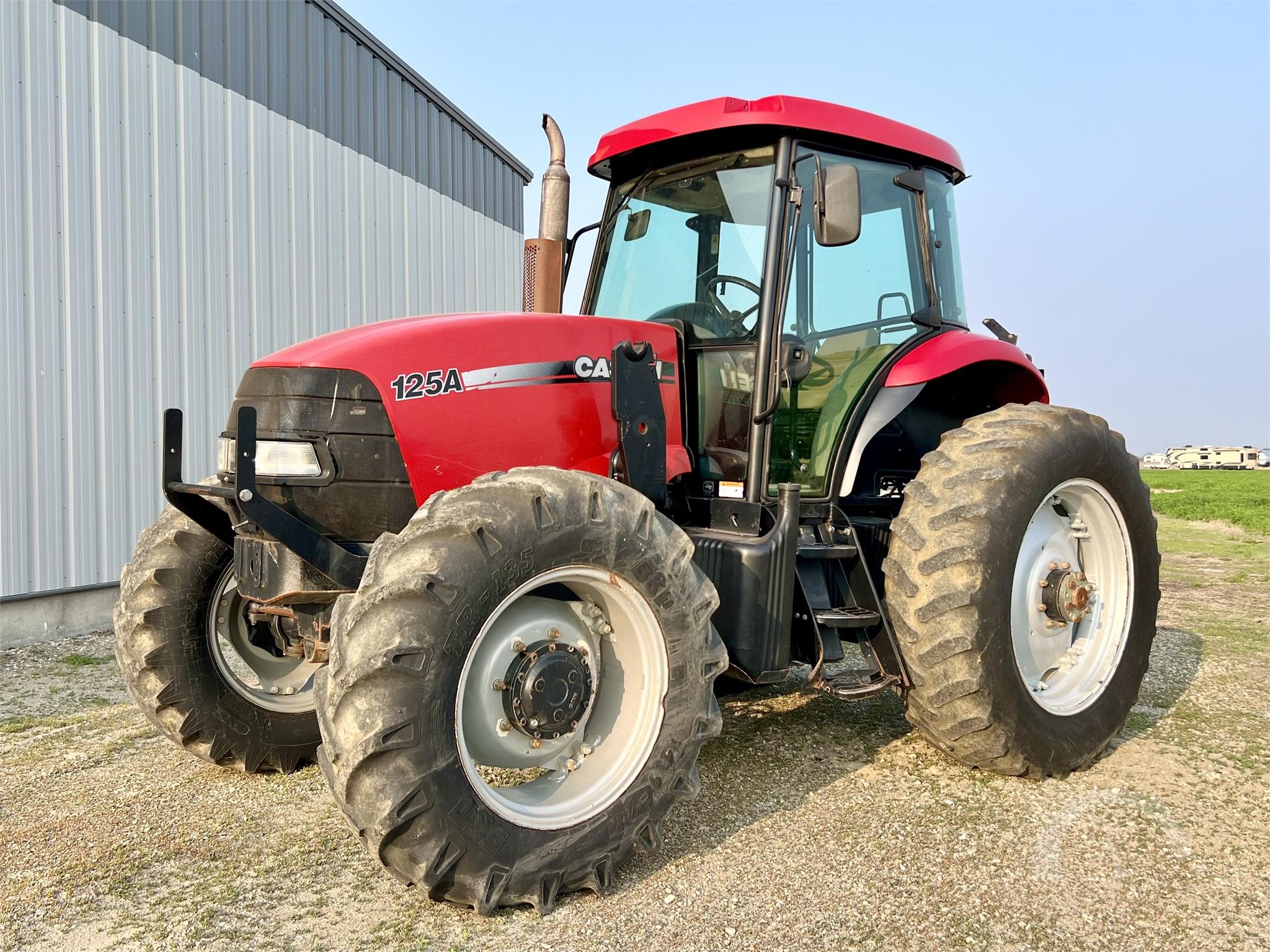

CaseIH Farmall 125A
CaseIH Farmall 125A — Farmall 100A Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Max power
81.2 kW
Weight
9061 to 10406 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Engine (gross)93.2 kWReference
Drawbar (tested)70.3 kWReference
FPTReference
turbocharged dieselReference
6-cylinder 12-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIIReference
Power (gross)93.2 kWReference
Fuel systemmechanical injectionReference
Compression17.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity14.0 LReference
Max power81.2 kWReference
Power at rated engine speed80.9 kWReference
Max power70.3 kWReference
Transmission
8-speed power shuttleReference
8-speed synchronized shuttleReference
16-speed power shuttleReference
Typepower shuttleReference
Gears8 forward and reverseReference
Typesynchronized shuttleReference
TransmissionHi-LoReference
Gears16 forward and 8 reverseReference
Adds under-drive to power shuttle transmission.Reference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
PTO (tested)81.2 kWReference
Hydraulic system62.1 LReference
Typeopen centerReference
Capacity62.1 LReference
Valves2 to 4Reference
Pump flow83.3 lpmReference
Total flow117.3 lpmReference
Steering flow34.1 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)3265 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed79.9 kWReference
Capacities
Fuel234.7 LReference
Dimensions
2WD Wheelbase266 cmReference
4WD Wheelbase264 cmReference
Weight9061 to 10406 poundsReference
Flange rear axleReference
Bar rear axle78 by 2489 mmReference
2WD ROPS4110 kgReference
4WD ROPS4399 kgReference
2WD Cab4429 kgReference
4WD Cab4720 kgReference
CaseIH Farmall 125A attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 8-speed 4WDNovember 29 - December 6, 2012Link: OCED Tractor Test 2051A fileReference
PTO performanceReference
Fuel use25.0 l/hourReference
Fuel use28.0 l/hourReference
Fuel use26.9 l/hourReference
Drawbar performanceReference
Fuel use28.4 l/hourReference
Max pull3879 kgReference
Speeds
With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
