Tractor · 2024Unverified

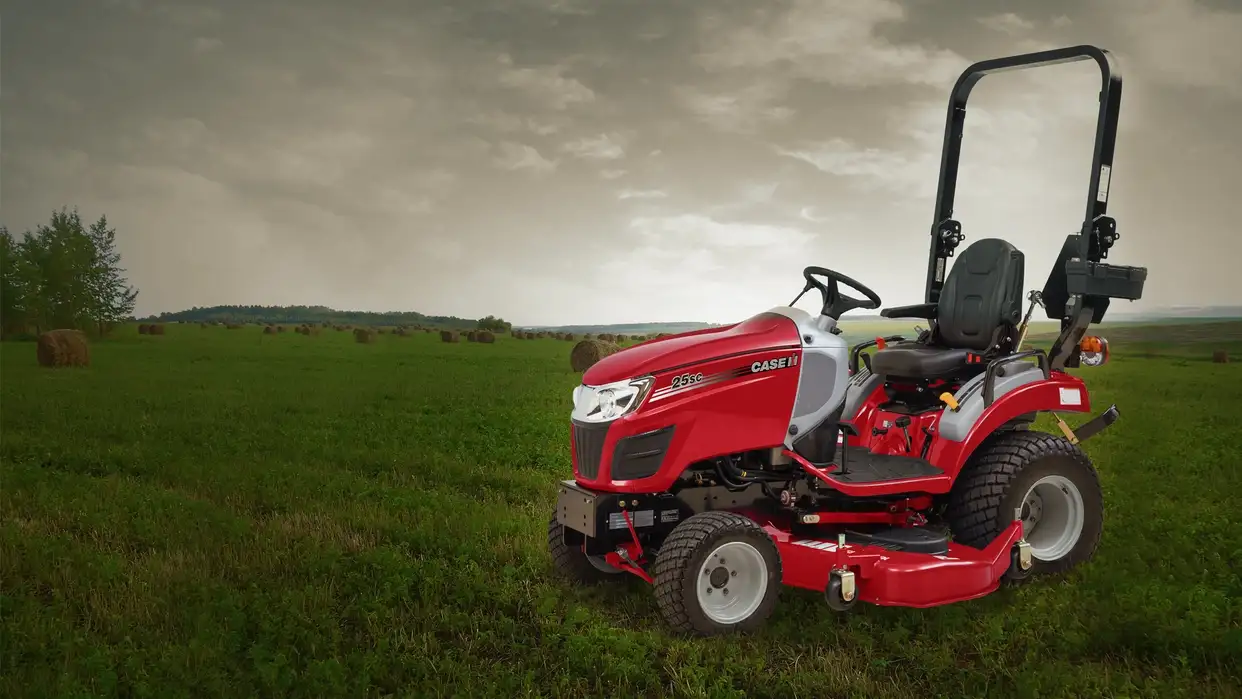

CaseIH Farmall 25SC

Name: CaseIH Farmall 25SC
Brand: CaseIH

CaseIH Farmall 25SC — Sub-Compact Utility tractor · 25 hp. Reference specifications; pending source verification.

The CaseIH Farmall 25SC is a tractor model with a rated output of 25 hp — making it one of the more compact options in its class. It was produced in 2024. Power comes from a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 1444 to 1884 pounds, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

1444 to 1884 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

25 hp

Recorded weight

654 kg

Transmissions

hydrostatic

Production years

2024-2024

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCaseIH (a part of CNH)Reference

ManufacturerLSReference

Sub-Compact Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Two-post folding ROPS. Cab optional.Reference

Variants

Workmaster 25Ssimilar New Holland modelReference

Engine

Yanmar 1.3L 3-cyl dieselReference

Fuel tank25.0 LReference

Engine (gross)18.4 kWReference

YanmarReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke80 x 84 mmReference

EmissionsTier IVReference

Power (gross)18.4 kWReference

Rated RPM3000Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)12.8 kWReference

Typeopen centerReference

Rear valves1Reference

Rear TypeIReference

Rear lift (at ends)449 kgReference

Rear lift (at 24"/610mm)330 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2500Reference

Dimensions

Wheelbase142 cmReference

Weight1444 to 1884 poundsReference

Lawn/turf front18x8.5-10Reference

Lawn/turf rear26x12-12Reference

Industrial front18x8.5-10Reference

Industrial rear26x12-12Reference

Length246 cmReference

Height (ROPS)221 cmReference

Height (Folded ROPS)158 cmReference

Height (cab)234 cmReference

ROPS Weight654 kgReference

Cab Weight854 kgReference

CaseIH Farmall 25SC attachments

front-end loaderReference

Farmall 25SC Serial Numbers

Location:Serial number plate on the left side of the frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
