Tractor · 2014Unverified

CaseIH Farmall 30C

Name: CaseIH Farmall 30C
Brand: CaseIH

CaseIH Farmall 30C — Farmall C Series · 26 hp. Reference specifications; pending source verification.

The CaseIH Farmall 30C is a tractor with a rated power output of 26 hp, positioning it at the lower end of its class in terms of power. Production of the Farmall 30C occurred between 2014 and 2016. It features a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The tractor has an operating weight of 1459 kg, and is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

26 hp

Weight

1459 kg

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

26 hp

Recorded weight

1459 kg

Transmissions

12-speed synchronized shuttle

Production years

2014-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Compact Utility tractorReference

Original price$23,986 (2016 shuttle )Reference

Original price$25,831 (2016 hydro )Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional.Reference

Engine

Shibaura 1.5L 3-cyl dieselReference

Fuel tank39.7 LReference

Engine24.0 kWReference

Shibaura N843T-F-24Reference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

EmissionsTier IVReference

Emission controlexhaust-gas recirculation with diesel particulate filterReference

Power24.0 kWReference

Fuel systemelectronic indirect injectionReference

Air cleanerdry elementReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed synchronized shuttleReference

hydrostaticReference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

Four synchronized gears in three non-synchronized ranges with shuttle shift.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Shuttle PTO (claimed)19.4 kWReference

Hydro PTO (claimed)18.4 kWReference

Typeopen centerReference

Valves1 or 2Reference

Pump flow27.6 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)820 kgReference

Rear lift (at 24"/610mm)650 kgReference

Rear Armstelescopic link endsReference

Rear PTOindependentReference

Rear PTO Type540Reference

Dimensions

Wheelbase167 cmReference

Weight1459 kgReference

Front tire7x14Reference

Rear tire11.2x24Reference

Standard tires (ag)Front: 7x14. Rear: 11.2x24Reference

Lawn/turf front25x8.50-14Reference

Lawn/turf rear41x14.00-20Reference

Industrial front25x8.50-14Reference

Industrial rear43x16.00-20Reference

Length302 cmReference

Width168 cmReference

Height (ROPS)237 cmReference

Max weight2041 kgReference

Flange rear axleReference

CaseIH Farmall 30C attachments

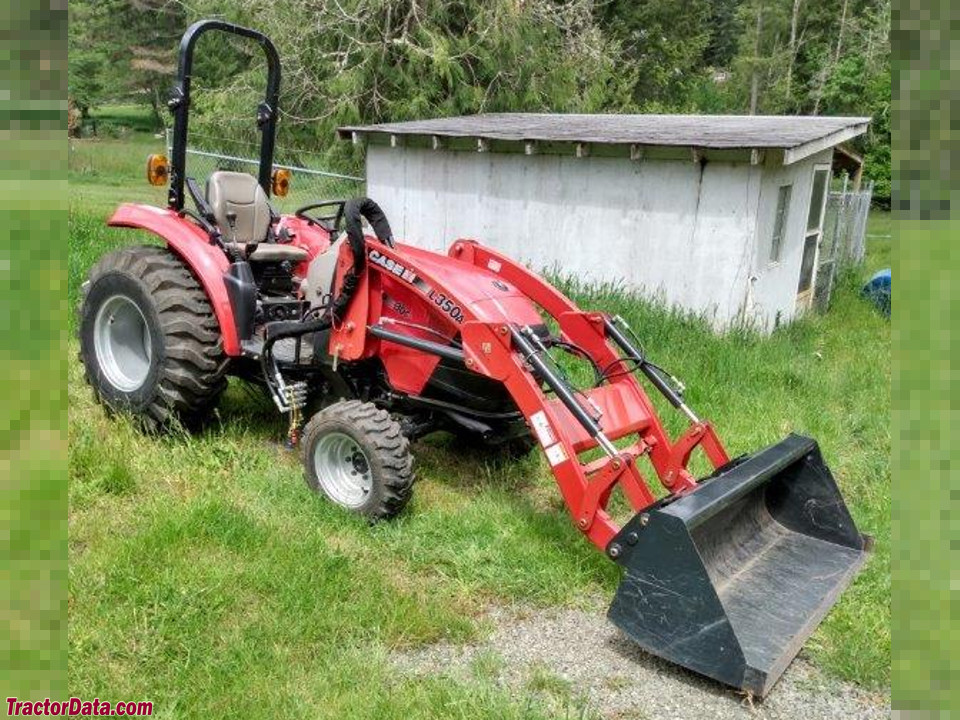

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps85Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
