Tractor · 2008Unverified

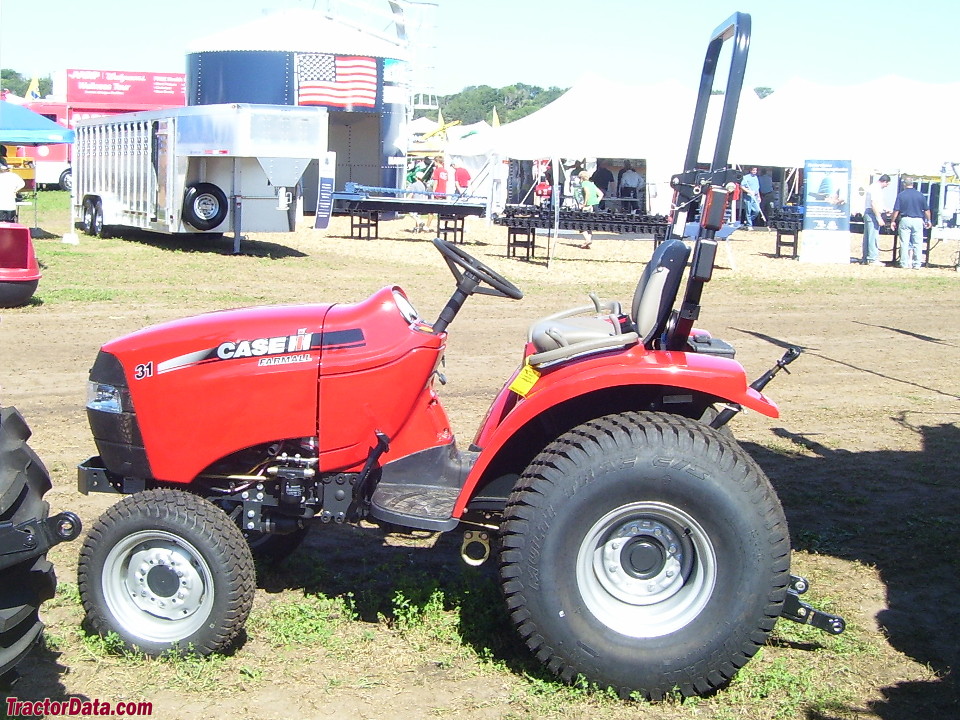

CaseIH Farmall 31
CaseIH Farmall 31 — Farmall Compact Series · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
2511 to 2544 pounds
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in Dublin, Georgia, USAReference
Original price$21,727 (2011 gear ROPS )Reference
Original price$23,474 (2011 hydro ROPS )Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Shibaura 1.5L 3-cyl dieselReference
Fuel tank27.6 LReference
Engine (gross)23.1 kWReference
Shibaura N843Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power (gross)23.1 kWReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
9-speed unsynchronized gearReference
hydrostaticReference
Typeunsynchronized gearReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)19.8 kWReference
PTO (claimed)18.6 kWReference
Typeopen centerReference
Pump flow27.3 lpmReference
Total flow46.6 lpmReference
Steering flow19.3 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)741 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase160 cmReference
Weight2511 to 2544 poundsReference
Front tire7x14Reference
Rear tire11.2x24Reference
Ag front7x14Reference
Ag rear11.2x24Reference
Lawn/turf front24x8.50-14Reference
Lawn/turf front25/1050LLx15Reference
Lawn/turf rear13.6x16Reference
Lawn/turf rear41/18LLx16.1Reference
Industrial front25x8.50-14Reference
Industrial rear15x19.5Reference
Length285 cmReference
Width137 cmReference
Height (ROPS)223 cmReference
Weight1138 kgReference
Weight1153 kgReference
Front tread115 cmReference
Rear tread118 cmReference
CaseIH Farmall 31 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA420Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
