Tractor · 2017Unverified
CaseIH Farmall 35A
CaseIH Farmall 35A — Model year 2017-20252026-2027 · 35 hp. Reference specifications; pending source verification.

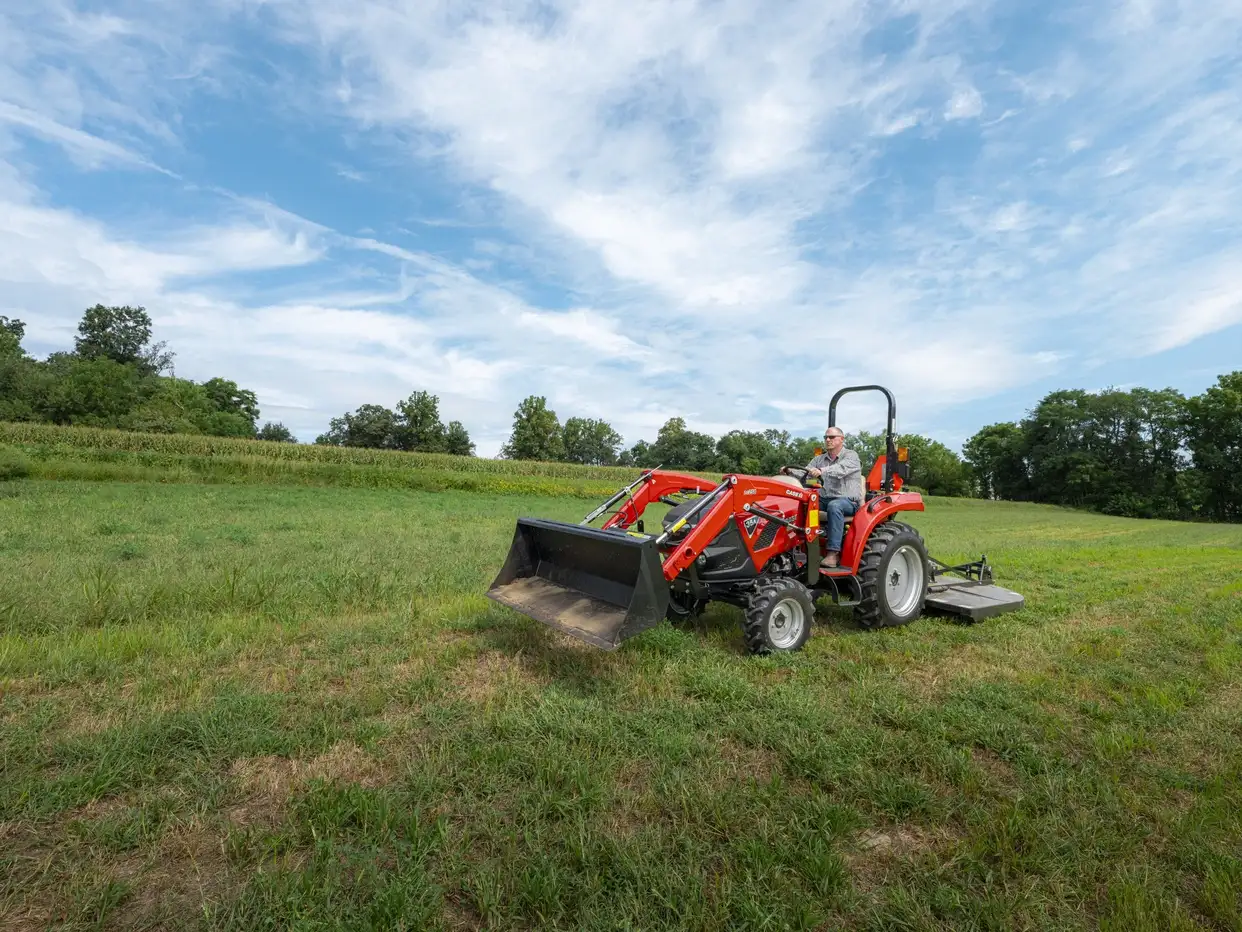

The Case IH Farmall 35A is a compact tractor with a rated output of 35 hp. It was manufactured between 2017 and 2027. The tractor features a 3-cylinder turbocharged diesel liquid-cooled engine, which powers four-wheel drive with a hydrostatic transmission. It is suitable for tasks on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
35 hp
Transmissions
12-speed mechanical shuttle
Production years
2017-2027
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post folding ROPS.Reference
Variants
Workmaster 35Csimilar New Holland modelReference
Engine
LS Mtron 1.9L 3-cyl dieselReference
Fuel tank47.7 LReference
Engine26.1 kWReference
LS MtronReference
turbocharged dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.9 LReference
Bore/Stroke88 x 103 mmReference
Power26.1 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
hydrostaticReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Rear TypeIReference
Rear lift (at ends)937 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Farmall 35A Serial Numbers
Location:Serial number decal on the left side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
