Search/Tractor/CaseIH/Farmall 35B

Tractor · 2012Unverified

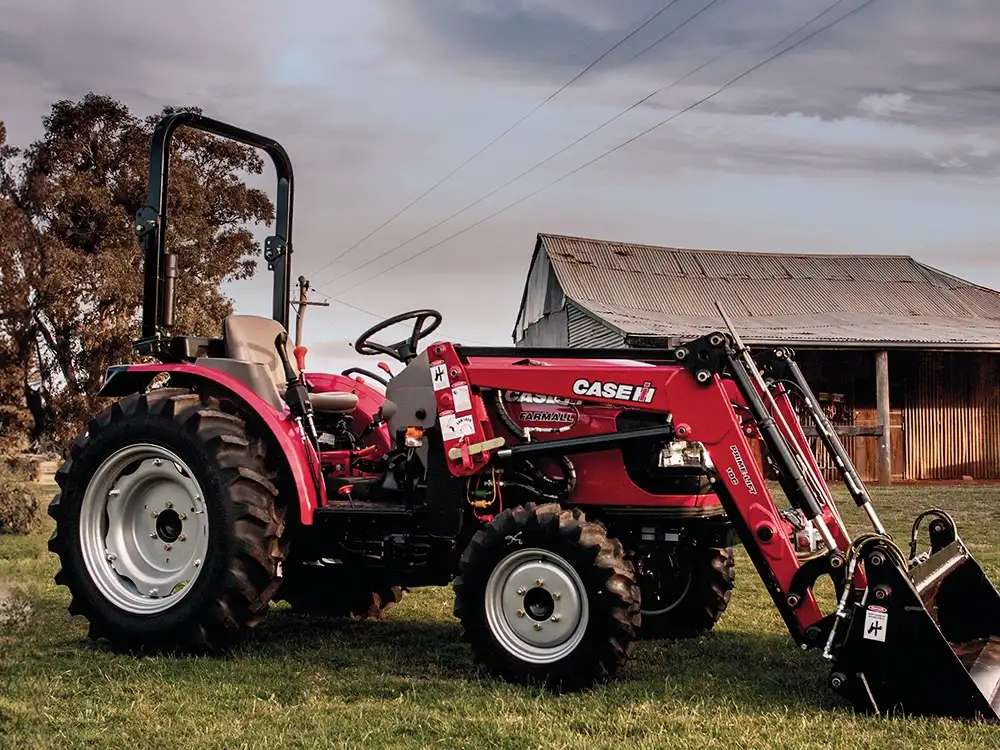

CaseIH Farmall 35B

Name: CaseIH Farmall 35B
Brand: CaseIH

CaseIH Farmall 35B — Farmall B Series · 38 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

38 hp

Weight

1451 kg

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Compact Utility tractorReference

Original price$19,035 (2012 shuttle )Reference

Original price$20,634 (2012 hydro )Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Mitsubishi 1.8L 4-cyl dieselReference

Fuel tank32.9 LReference

Engine (gross)28.3 kWReference

Mitsubishi S4L2Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Power (gross)28.3 kWReference

Air cleanerdryReference

Pre-heatingglow plugsReference

Rated RPM2700Reference

Transmission

12-speed partially synchronizedReference

hydrostaticReference

Typepartially synchronizedReference

Gears12 forward and reverseReference

Four synchronized gears in three ranges.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)23.1 kWReference

Hydro PTO (claimed)21.6 kWReference

Typeopen centerReference

Pump flow31.0 lpmReference

Gear Steering flow15.5 lpmReference

Hydro Steering flow20.8 lpmReference

Rear Type1Reference

Controlposition controlReference

Rear lift (at ends)819 kgReference

Rear lift (at 24"/610mm)650 kgReference

Drawbartwo-position swinging drawbarReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540Reference

Dimensions

Wheelbase167 cmReference

Weight1451 kgReference

Length302 cmReference

Height (ROPS)231 cmReference

Flange rear axleReference

Front tread115 cmReference
