Tractor · 2014Unverified

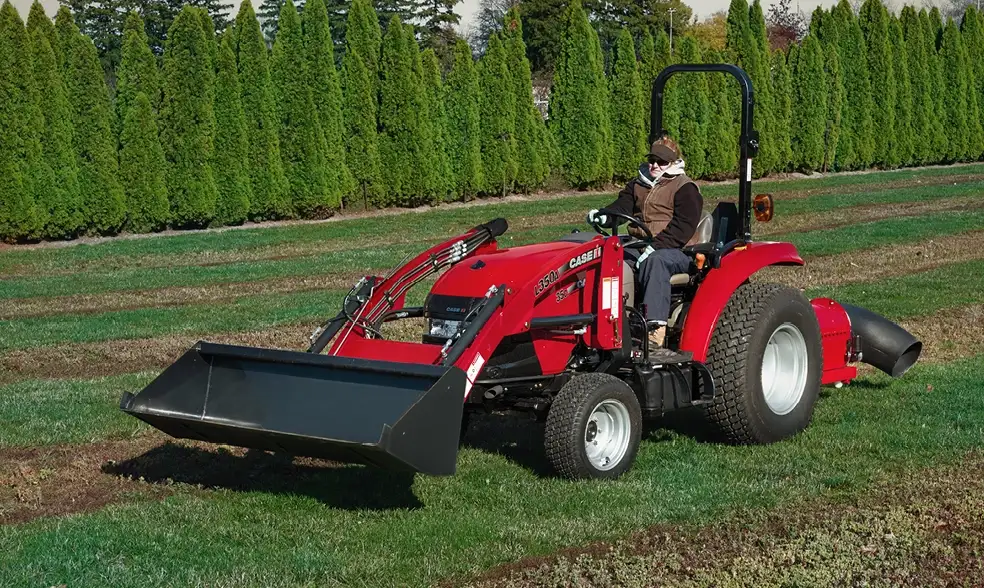

CaseIH Farmall 35C
CaseIH Farmall 35C — Model year 2014-20162017-2025 · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
3218 to 3589 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Compact Utility tractorReference
Original price$25,860 (2016 shuttle ROPS )Reference
Original price$33,215 (2016 hydro cab )Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Engine
Shibaura 1.5L 3-cyl dieselReference
ROPS Fuel tank39.7 LReference
Cab Fuel tank46.9 LReference
Engine27.0 kWReference
Shibaura N843T-F-27Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
EmissionsTier IVReference
Emission controlexhaust-gas recirculation with diesel particulate filterReference
Power27.0 kWReference
Fuel systemelectronic indirect injectionReference
Air cleanerdry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Four synchronized gears in three non-synchronized ranges with shuttle shift.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Shuttle PTO (claimed)22.1 kWReference
Hydro PTO (claimed)21.0 kWReference
Typeopen centerReference
Valves1 or 2Reference
Pump flow27.6 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)820 kgReference
Rear lift (at 24"/610mm)650 kgReference
Rear Armstelescopic link endsReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase167 cmReference
Weight3218 to 3589 poundsReference
Front tire7x14Reference
Rear tire11.2x24Reference
Standard tires (ag)Front: 7x14. Rear: 11.2x24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear41x14.00-20Reference
Industrial front25x8.50-14Reference
Industrial rear43x16.00-20Reference
Length302 cmReference
Width168 cmReference
Height (ROPS)237 cmReference
Height (cab)224 cmReference
Flange rear axleReference
ROPS1459 kgReference
Cab1627 kgReference
CaseIH Farmall 35C attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Battery volts12Reference
Capacities
Max capacity2041 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
