Tractor · 2014Unverified

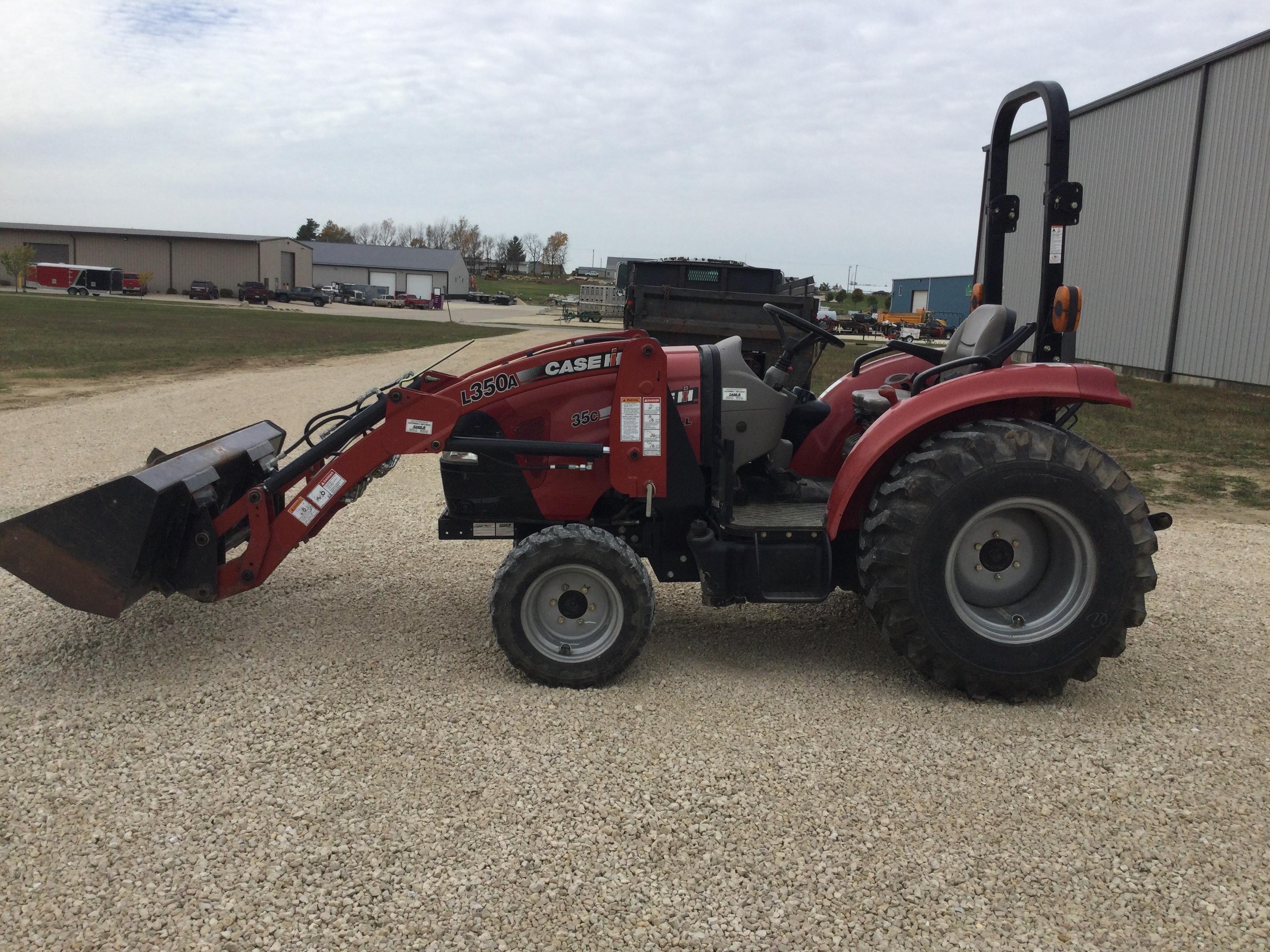

CaseIH Farmall 35C Series II

Name: CaseIH Farmall 35C Series II
Brand: CaseIH

CaseIH Farmall 35C Series II — Model year 2014-20162017-2027 · 30 hp. Reference specifications; pending source verification.

The CaseIH Farmall 35C Series II is a compact tractor model, rated at 30 hp. Manufactured from 2014 to 2027, it features a 3-cylinder turbocharged diesel liquid-cooled engine, which drives through a four-wheel drive system with a hydrostatic transmission. The tractor's weight is 1440 kg, and it is suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

30 hp

Weight

1440 kg

Catalogue coverage

Variants represented

Richest spec table

76 rows

Recorded power

30 hp

Recorded weight

1440 kg

Transmissions

12-speed mechanical shuttle

Production years

2014-2027

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Compact Utility tractorReference

Original price$24,056 (2020 )Reference

Original price$32,017 (2025 )Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Variants

Farmall 35AbasicReference

Farmall 35CpremiumReference

Boomer 35similar New Holland modelReference

Engine

LS Mtron 1.9L 3-cyl dieselReference

Fuel tank40.1 LReference

Engine26.1 kWReference

LS Mtron L3C19-TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.9 LReference

Bore/Stroke88 x 103 mmReference

EmissionsTier IVReference

Emission controlexhaust gas recirculation with DOC and DPFReference

Power26.1 kWReference

Fuel systemelectronic direct-injection common railReference

Rated RPM2600Reference

Firing order1-3-2Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed mechanical shuttleReference

hydrostaticReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Four synchronized speeds in three ranges with mechanical shuttle.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)22.1 kWReference

Hydro PTO (claimed)20.9 kWReference

Typeopen centerReference

Valves1 or 2Reference

Pump flow31.0 lpmReference

Gear Total flow46.9 lpmReference

Hydro Total flow51.1 lpmReference

Gear Steering flow15.9 lpmReference

Hydro Steering flow20.1 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)820 kgReference

Rear lift (at 24"/610mm)650 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase167 cmReference

Weight1440 kgReference

Front tire7x14Reference

Rear tire11.2x24Reference

Standard tires (ag)Front: 7x14. Rear: 11.2x24Reference

Lawn/turf front25x8.50-14Reference

Lawn/turf rear41x14.00-20Reference

Industrial front25x8.50-14Reference

Industrial rear43x16.00-20Reference

Length302 cmReference

Width168 cmReference

Height (ROPS)237 cmReference

Flange rear axleReference

CaseIH Farmall 35C attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

CaseIH BHA90A Backhoe

Backhoe typeCaseIH BHA90A BackhoeReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
