Tractor · 2008Unverified

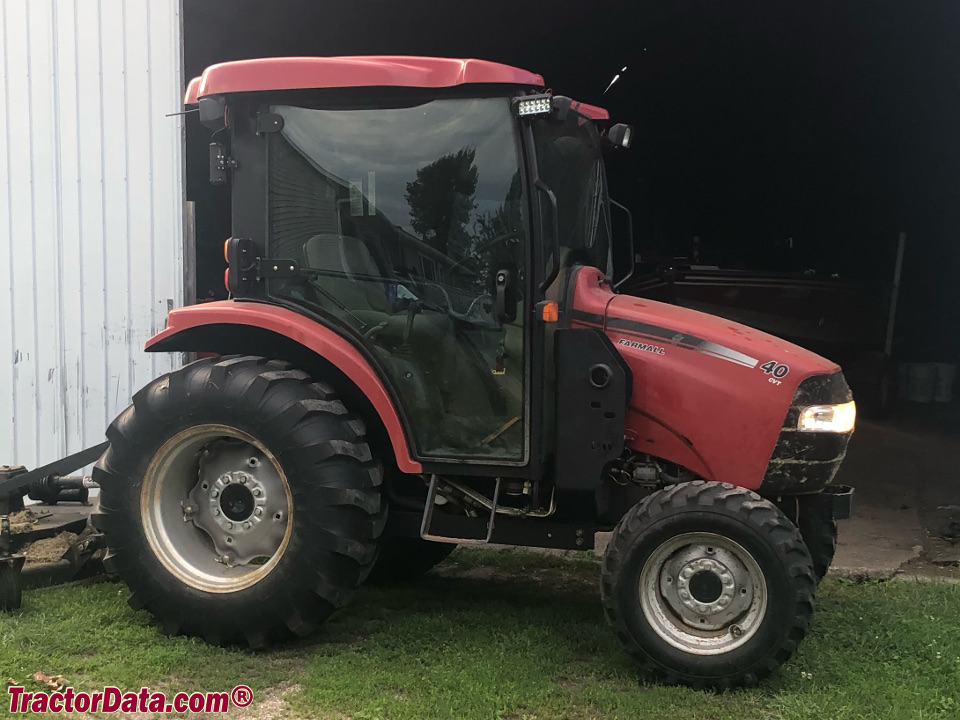

CaseIH Farmall 40
CaseIH Farmall 40 — Farmall Compact Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
3252 to 4402 pounds
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in Dublin, Georgia, USAReference
Original price$25,677 (2011 shuttle ROPS )Reference
Original price$28,192 (2011 hydro ROPS )Reference
Original price$36,653 (2011 CVT cab )Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Foldable two-post ROPS. Cab optional with air-conditioning.Reference
Engine
Shibaura 2.0L 4-cyl dieselReference
Fuel tank49.2 LReference
Engine (gross)29.8 kWReference
Shibaura N844Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Power (gross)29.8 kWReference
Air cleanerdual stage dryReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
12-speedReference
hydrostaticReference
continuously variable transmissionReference
TransmissionSynchro ShuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
TransmissionCVTReference
Typecontinuously variable transmissionReference
The mechanical CVT uses a steel chain between variable-diameter pulleys. Three speed modes (low, medium, high) with variable reactivity. Left-hand shuttle lever.Reference
PTO & Hydraulics
PTO (claimed)26.1 kWReference
PTO (claimed)24.8 kWReference
PTO (claimed)23.9 kWReference
Typeopen centerReference
Pump flow37.1 lpmReference
Total flow56.4 lpmReference
Steering flow19.3 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)1056 kgReference
Rear lift (at 24"/610mm)1270 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOoptional with hydro/CVTReference
Mid PTO Type2000Reference
Dimensions
Wheelbase186 cmReference
Weight3252 to 4402 poundsReference
Front tire8-16Reference
Rear tire14.9x24Reference
Ag front8-16Reference
Ag rear14.9x24Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf front27/12LLx15Reference
Lawn/turf rear44x18-20Reference
Lawn/turf rear22.5LLx16.1Reference
Industrial front10-16.5Reference
Industrial rear17.5x24Reference
Length318 cmReference
Width169 cmReference
Height (ROPS)241 cmReference
Height (cab)230 cmReference
Front tread125 cmReference
Rear tread130 to 171 cmReference
1475 kgReference
1557 kgReference
1996 kgReference
1835 kgReference
CaseIH Farmall 40 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40 (ROPS)Reference
Charging amps55 (cab)Reference
Charging amps75 (cab optional)Reference
Battery CCA600Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
