Tractor · 2017Unverified

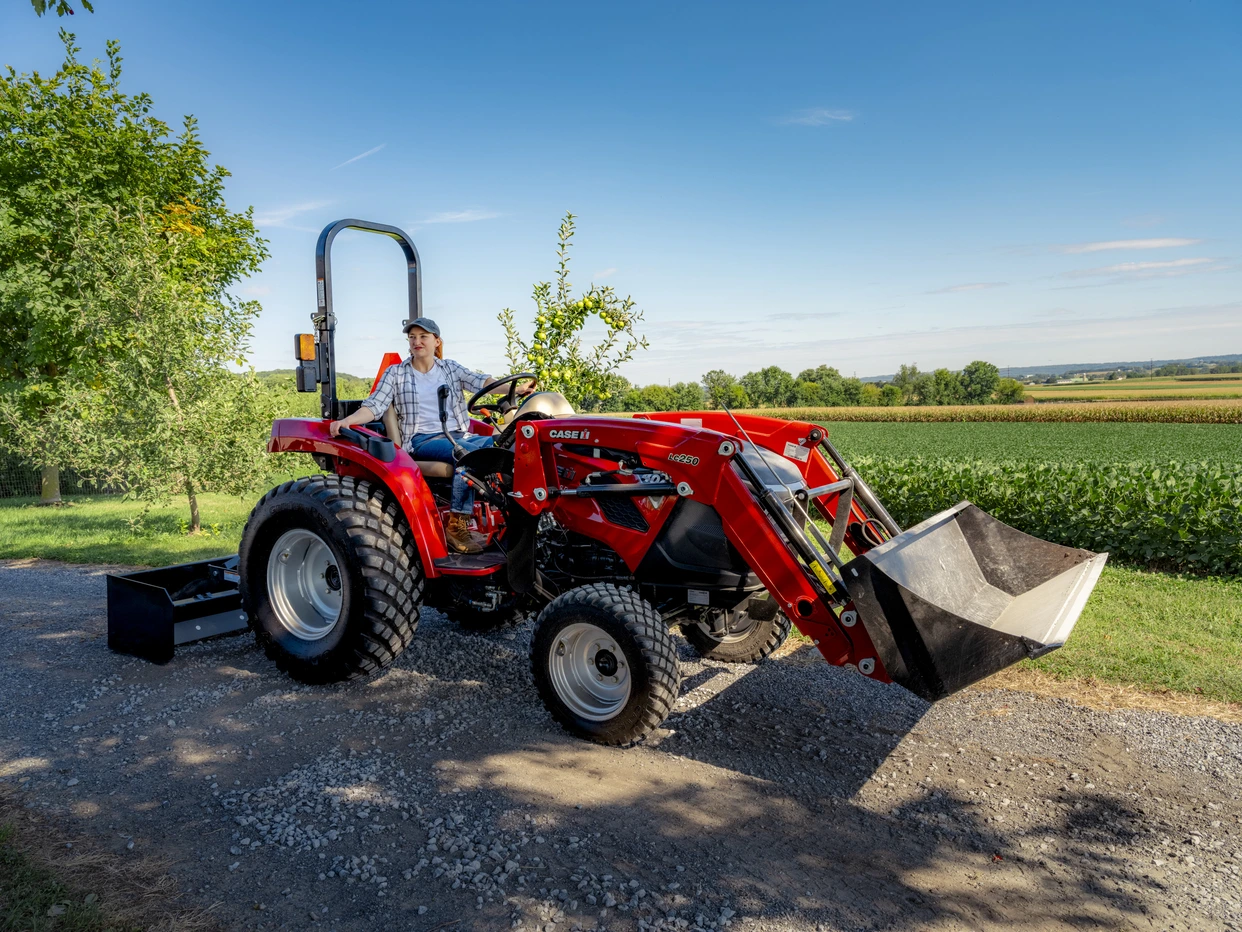

CaseIH Farmall 40A
CaseIH Farmall 40A — Model year 2017-20252026-2027 · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post folding ROPS.Reference
Variants
Workmaster 40Csimilar New Holland modelReference
Engine
LS Mtron 1.9L 3-cyl dieselReference
Fuel tank47.7 LReference
Engine29.8 kWReference
LS MtronReference
turbocharged dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.9 LReference
Bore/Stroke88 x 103 mmReference
Power29.8 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
hydrostaticReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Rear TypeIReference
Rear lift (at ends)937 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Farmall 40A Serial Numbers
Location:Serial number decal on the left side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
