Tractor · 2010Unverified

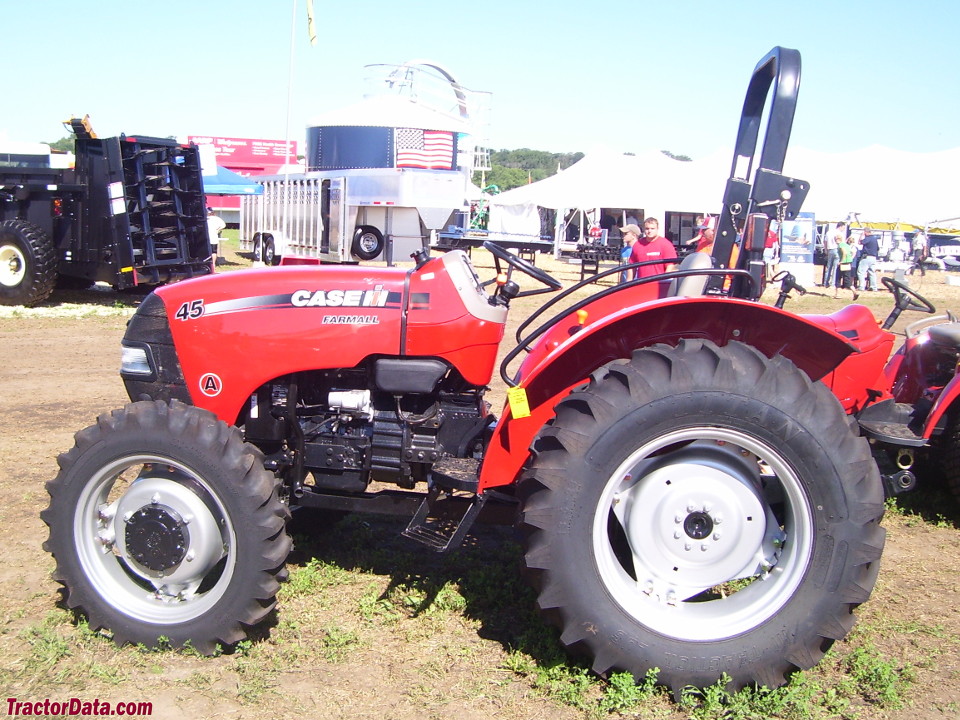

CaseIH Farmall 45A
CaseIH Farmall 45A — Farmall A Series · 45 hp. Reference specifications; pending source verification.
The CaseIH Farmall 45A is a compact tractor, rated at 45 hp, which places it among the smaller models in its class. Manufactured from 2010 to 2015, it features a 4-cylinder diesel liquid-cooled engine, driving four-wheel drive via a hydrostatic transmission. The listed weight range for the Farmall 45A is 3527 to 3836 pounds, and it is suited to tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
3527 to 3836 pounds
Catalogue coverage
Variants represented
2
Richest spec table
56 rows
Recorded power
45 hp
Recorded weight
1599 kg
Transmissions
8-speed synchronized shuttle
Production years
2010-2015
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in IndiaReference
Two- or four-wheel driveReference
Differential lockmechanical rear differential lock with foot pedal, limited slip 4WD front axleReference
Steeringhydrostatic powerReference
Differential mechanical wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
ISM 2.2L 4-cyl dieselReference
Fuel tank51.1 LReference
Engine (gross)33.6 kWReference
ISMReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
EmissionsTier 3Reference
Power (gross)33.6 kWReference
Air cleanerdual dry elementReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutch11-inch dry discReference
Four gears in two ranges. Synchronized mechanical shuttle with left-hand lever. Tractor must be stopped to shift gears or ranges.Reference
PTO & Hydraulics
PTO (claimed)29.1 kWReference
Typeopen center fixed displacement gear pumpReference
Valves1 or 2Reference
Pump flow43.9 lpmReference
Total flow64.0 lpmReference
Rear Type2/1Reference
Controlposition controlReference
Rear lift (at 24"/610mm)830 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Weight3527 to 3836 poundsReference
Front tire6x16Reference
2WD Rear tire12.4x28Reference
2WD Standard tires (ag)Front: 6x16. Rear: 12.4x28Reference
4WD Standard tires (ag)Front: 8.3x24. Rear: 13.6x28Reference
2WD Length332 cmReference
4WD Length339 cmReference
Width167 cmReference
Height238 cmReference
2WD Shipping weight1599 kgReference
4WD Shipping weight1740 kgReference
CaseIH Farmall 45A attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA800Reference
Battery volts12Reference
Speeds
Reverse speeds about 5% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
