Tractor · 2008Unverified

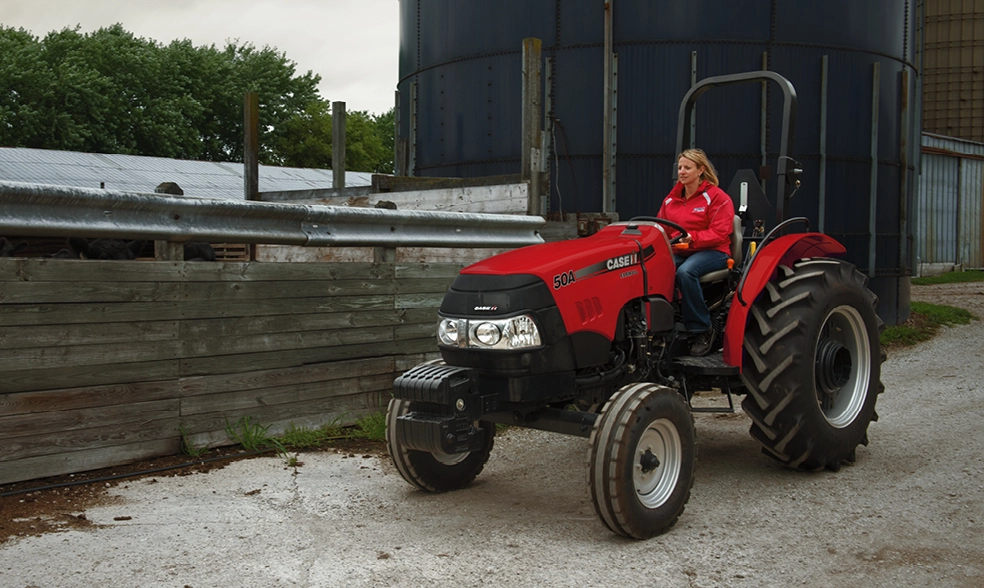

CaseIH Farmall 50
CaseIH Farmall 50 — Farmall Compact Series · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Max power
33.3 kW
Weight
3522 to 4136 pounds
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in Dublin, Georgia, USAReference
Original price$29,500 (2011 shuttle ROPS )Reference
Original price$40,856 (2011 CVT cab )Reference
The Farmall 50 was originally named the DX50. The Farmall 50 was available in two basic versions. An economy version with ROPS and 12-speed shuttle, and a deluxe version with CVT, cab, higher lift, and optional mid PTO.Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS. Cab with air-conditioning standard on CVT-equipped tractor.Reference
Variants
T2330similar tractorReference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank49.2 LReference
Engine (gross)37.3 kWReference
Shibaura N844LReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power (gross)37.3 kWReference
Air cleanerdual elementReference
Pre-heatingglow plugsReference
Compression22.4:1Reference
Rated RPM2800Reference
Starter volts12Reference
Max power33.3 kWReference
Power at rated engine speed32.5 kWReference
Transmission
12-speedReference
continuously variable transmissionReference
TransmissionSynchro ShuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Four synchronized gears in three ranges.Reference
TransmissionCVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
The mechanical CVT uses a steel chain between variable-diameter pulleys. Three speed modes (low, medium, high) with variable reactivity. Left-hand shuttle lever.Reference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
PTO (claimed)32.1 kWReference
PTO (tested)33.3 kWReference
Pump flow37.1 lpmReference
Total flow56.4 lpmReference
Steering flow19.3 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)1056 kgReference
Rear lift (at 24"/610mm)1270 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOoptional with CVTReference
Mid PTO Type2000Reference
Power at rated PTO speed31.0 kWReference
Dimensions
Wheelbase186 cmReference
Weight3522 to 4136 poundsReference
Front tire8-16Reference
Rear tire14.9-24Reference
Ag front8-16Reference
Ag rear14.9-24Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf front27/12LLx15Reference
Lawn/turf rear44x18-20Reference
Lawn/turf rear22.5LLx16.1Reference
Industrial front10-16.5Reference
Industrial rear17.5x24Reference
Length318 cmReference
Width169 cmReference
Height (ROPS)241 cmReference
Height (cab)230 cmReference
Shipping weight1597 kgReference
Shipping weight1876 kgReference
Clearance (drawbar)31 cmReference
Front tread125 cmReference
Rear tread130 to 171 cmReference
CaseIH Farmall 50 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40 (ROPS)Reference
Charging amps55 (cab)Reference
Charging amps75 (cab optional)Reference
Battery CCA600Reference
Battery volts12Reference
Test results
Diesel 12-speed 4WDDecember 2 - 3, 2008Link: Nebraska Tractor Test 1938A fileReference
PTO performanceReference
Fuel use14.8 l/hourReference
Fuel use12.5 l/hourReference
Fuel use15.1 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
