Tractor · 2012Unverified

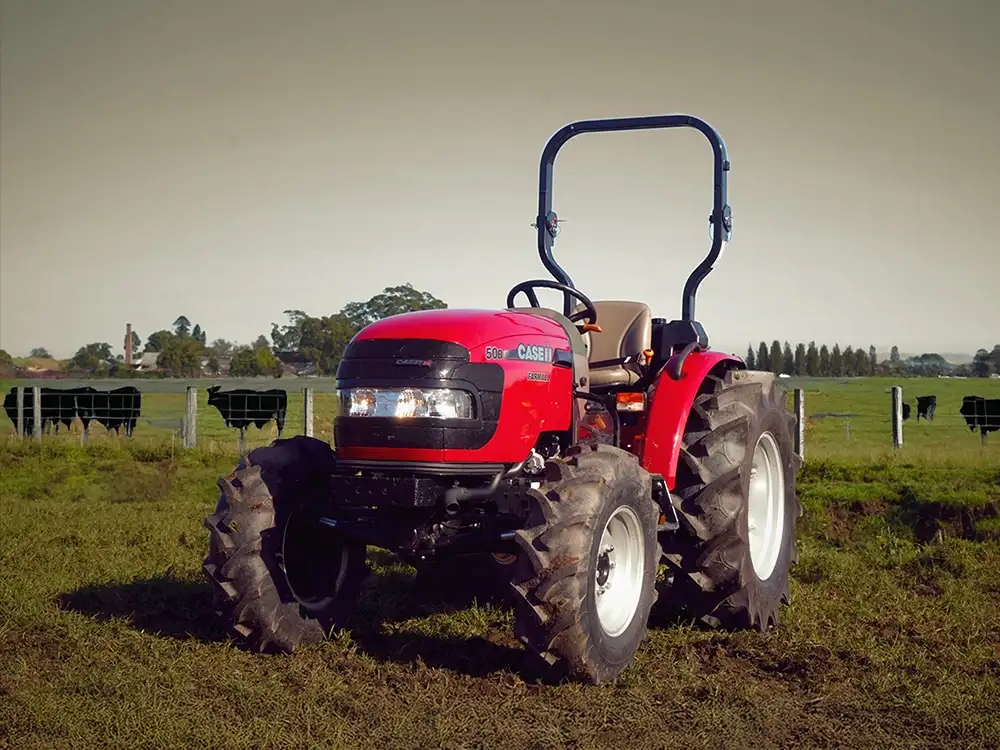

CaseIH Farmall 50B

Name: CaseIH Farmall 50B
Brand: CaseIH

CaseIH Farmall 50B — Farmall B Series · 47 hp. Reference specifications; pending source verification.

The CaseIH Farmall 50B is a compact tractor model, rated at 47 hp. Manufactured between 2012 and 2014, it features a 4-cylinder diesel liquid-cooled engine, powering a four-wheel drive system with hydrostatic transmission. The listed weight of the tractor is 1723 kg, and it is suitable for tasks on approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

47 hp

Weight

1723 kg

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

47 hp

Recorded weight

1723 kg

Transmissions

16-speed partially synchronized

Production years

2012-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Compact Utility tractorReference

Original price$23,136 (2012 shuttle )Reference

Original price$24,735 (2012 hydro )Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Mitsubishi 2.5L 4-cyl dieselReference

Fuel tank36.0 LReference

Engine (gross)35.0 kWReference

Mitsubishi S4QLReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.5 LReference

Power (gross)35.0 kWReference

Air cleanerdryReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

Starter volts12Reference

Transmission

16-speed partially synchronizedReference

hydrostaticReference

Typepartially synchronizedReference

Gears16 forward and reverseReference

Four synchronized gears in four ranges.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)29.1 kWReference

Hydro PTO (claimed)27.6 kWReference

Typeopen centerReference

Pump flow31.0 lpmReference

Gear Steering flow15.5 lpmReference

Hydro Steering flow20.8 lpmReference

Rear Type1Reference

Controlposition controlReference

Rear lift (at ends)1250 kgReference

Rear lift (at 24"/610mm)1119 kgReference

Drawbartwo-position swinging drawbarReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540Reference

Dimensions

Wheelbase175 cmReference

Weight1723 kgReference

Length307 cmReference

Height (ROPS)243 cmReference

Flange rear axleReference

Front tread131 cmReference

CaseIH Farmall 50B attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Battery CCA660Reference

Battery volts12Reference

Battery AH80Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
