Tractor · 2014Unverified

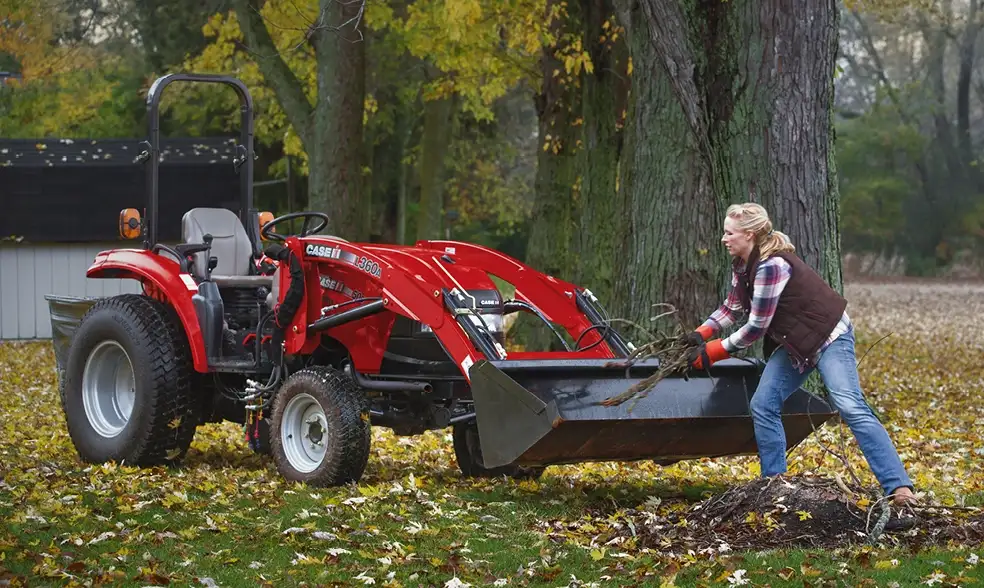

CaseIH Farmall 50C
CaseIH Farmall 50C — Farmall C Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
3869 to 4380 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Compact Utility tractorReference
Original price$33,217 (2016 shuttle ROPS )Reference
Original price$40,598 (2016 hydro cab )Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Engine
Shibaura 2.2L 4-cyl dieselReference
ROPS Fuel tank39.7 LReference
Cab Fuel tank46.9 LReference
Engine34.0 kWReference
Shibaura N844L-F-34Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
EmissionsTier IVReference
Emission controldiesel particulate filterReference
Power34.0 kWReference
Fuel systemelectronic indirect injectionReference
Air cleanerdry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
Four synchronized gears in four non-synchronized ranges with shuttle shift.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Shuttle PTO (claimed)27.8 kWReference
Hydro PTO (claimed)26.4 kWReference
Typeopen centerReference
Valves1 or 2Reference
Pump flow31.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1250 kgReference
Rear lift (at 24"/610mm)1119 kgReference
Rear Armstelescopic link endsReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase185 cmReference
Weight3869 to 4380 poundsReference
Front tire9.5x16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 9.5x16. Rear: 13.6-24Reference
Lawn/turf front28x8.50-15Reference
Lawn/turf rear41x14.00-20Reference
Industrial front12x16.5Reference
Industrial rear17.5Lx24Reference
Length325 cmReference
Width175 cmReference
Height (ROPS)249 cmReference
Height (cab)236 cmReference
Flange rear axleReference
ROPS1754 kgReference
Cab1986 kgReference
CaseIH Farmall 50C attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Battery volts12Reference
Capacities
Max capacity2494 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
