Tractor · 2008Unverified

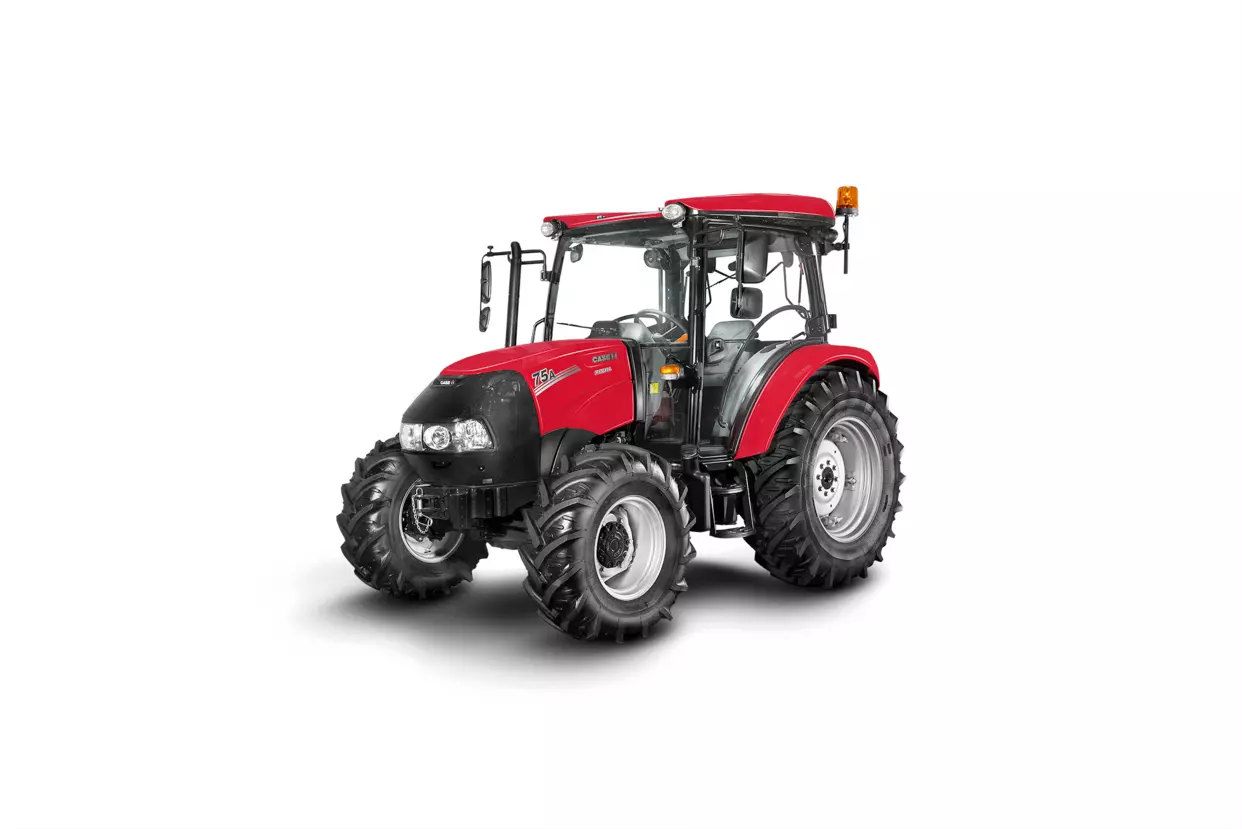

CaseIH Farmall 55
CaseIH Farmall 55 — Farm/Agricultural tractor · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
4209 to 4238 pounds
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerShibauraReference
Farm/Agricultural tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPSReference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank51.1 LReference
Engine (gross)41.0 kWReference
Shibaura ISM-N844L-TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power (gross)41.0 kWReference
Rated RPM2700Reference
Power at rated engine speed35.8 kWReference
Transmission
12-speedReference
TransmissionSynchro ShuttleReference
Gears12 forward and reverseReference
TransmissionPower ShuttleReference
PTO & Hydraulics
PTO (claimed)34.3 kWReference
PTO (claimed)35.0 kWReference
PTO (tested)35.8 kWReference
Typeopen centerReference
Pressure171.6 barReference
Valves0 to 3Reference
Pump flow43.9 lpmReference
Total flow64.2 lpmReference
Steering flow20.8 lpmReference
Rear Type1/2Reference
Rear lift (at 24"/610mm)1571 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed35.6 kWReference
Dimensions
Wheelbase189 cmReference
Weight4209 to 4238 poundsReference
Front tire8-16Reference
Rear tire14.9x24Reference
Ag front8-16Reference
Ag front9.5x16Reference
Ag rear14.9x24Reference
Ag rear14.9x28Reference
Lawn/turf front27x10.5-15Reference
Lawn/turf front27/12LLx15Reference
Lawn/turf rear44-18.00-20Reference
Lawn/turf rear22.5LLx16.1Reference
Industrial front12-16.5Reference
Industrial rear18.4-24Reference
Length348 cmReference
Width163 cmReference
Height241 cmReference
Weight1909 kgReference
Weight1922 kgReference
Ground clearance32 cmReference
CaseIH Farmall 55 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Battery CCA750Reference
Battery volts12Reference
Test results
Diesel 12-speed 4WDApril 29 - 30, 2004Link: Nebraska Tractor Test 1837B fileReference
PTO performanceReference
Fuel use14.8 l/hourReference
Fuel use14.0 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
