Tractor · 2008Unverified

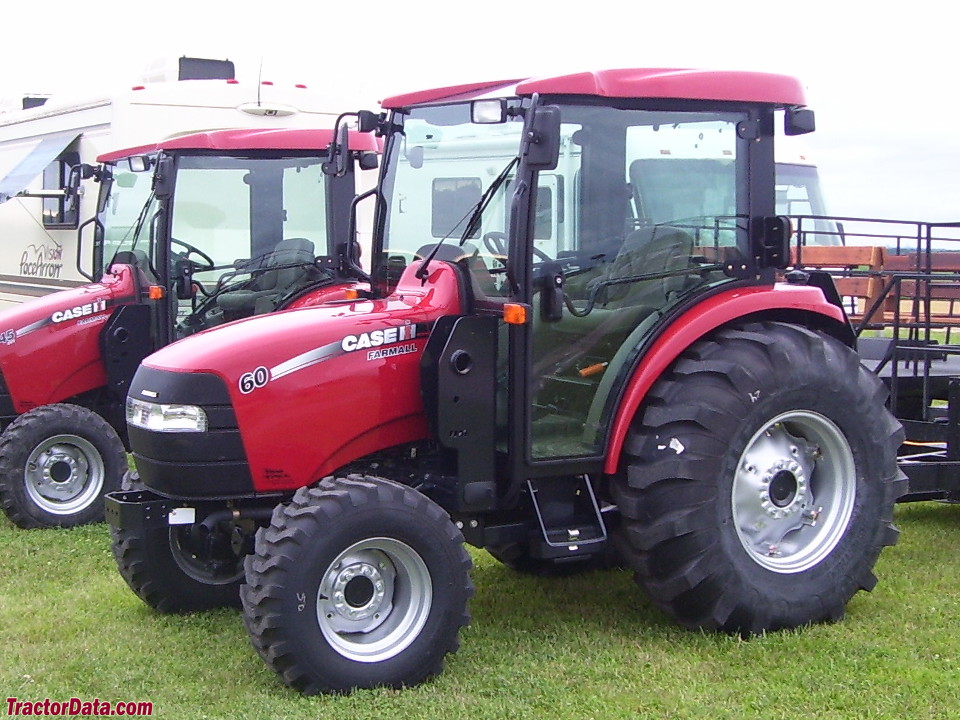

CaseIH Farmall 60
CaseIH Farmall 60 — Farm/Agricultural tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
4209 to 4238 pounds
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerShibauraReference
Farm/Agricultural tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPSReference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank51.1 LReference
Engine (gross)44.7 kWReference
Shibaura ISM-N844L-TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power (gross)44.7 kWReference
Rated RPM2800Reference
Power at rated engine speed38.5 kWReference
Transmission
12-speedReference
TransmissionSynchro ShuttleReference
Gears12 forward and reverseReference
TransmissionPower ShuttleReference
PTO & Hydraulics
PTO (claimed)37.3 kWReference
PTO (claimed)38.0 kWReference
PTO (tested)38.5 kWReference
Typeopen centerReference
Pressure171.6 barReference
Valves0 to 3Reference
Pump flow45.4 lpmReference
Total flow66.4 lpmReference
Steering flow20.8 lpmReference
Rear Type1/2Reference
Rear lift (at 24"/610mm)1571 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed38.6 kWReference
Dimensions
Wheelbase189 cmReference
Weight4209 to 4238 poundsReference
Front tire8x16Reference
Rear tire14.9x24Reference
Ag front8x16Reference
Ag front9.5x16Reference
Ag rear14.9x24Reference
Ag rear14.9x28Reference
Lawn/turf front27x10.5-15Reference
Lawn/turf front27/12LLx15Reference
Lawn/turf rear44-18.00-20Reference
Lawn/turf rear22.5LLx16.1Reference
Industrial front12-16.5Reference
Industrial rear18.4-24Reference
Length348 cmReference
Width163 cmReference
Height241 cmReference
Weight1909 kgReference
Weight1922 kgReference
Ground clearance32 cmReference
CaseIH Farmall 60 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Battery CCA750Reference
Battery volts12Reference
Test results
Diesel 12-speed 4WDSeptember 23, 2008 - March 11, 2009Link: Nebraska Tractor Test 1939A fileReference
PTO performanceReference
Fuel use14.4 l/hourReference
Fuel use13.2 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
