Tractor · 2015Unverified

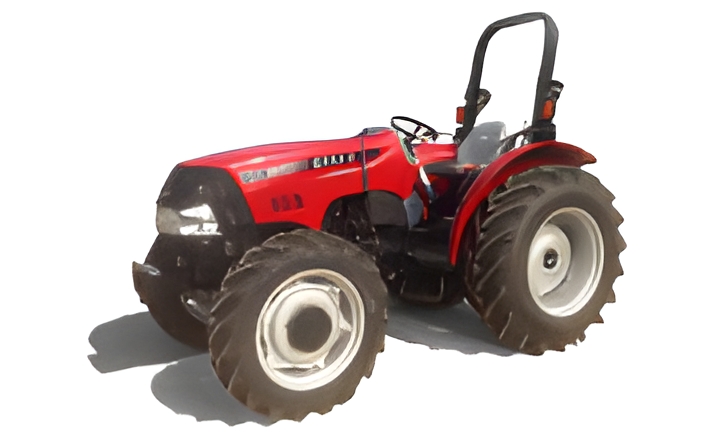

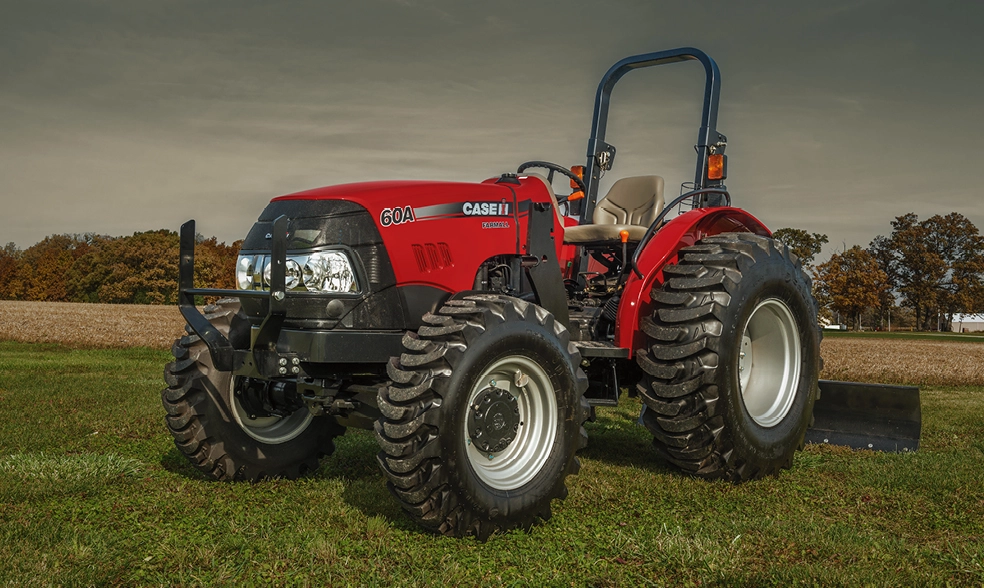

CaseIH Farmall 60A

Name: CaseIH Farmall 60A
Brand: CaseIH

CaseIH Farmall 60A — Farmall A Series · 60 hp. Reference specifications; pending source verification.

The CaseIH Farmall 60A is a tractor with a rated power output of approximately 60 horsepower, positioning it at the lower end of its class. It was manufactured in 2015. The tractor features a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and an 8-speed gearbox. Its operating weight ranges from 4442 to 5060 pounds, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Max power

36.3 kW

Weight

4442 to 5060 pounds

Catalogue coverage

Variants represented

Richest spec table

89 rows

Recorded power

60 hp

Recorded weight

2014 kg

Transmissions

8-speed mechanical shuttle

Production years

2015-2015

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in IndiaReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

FPT 2.2L 3-cyl dieselReference

Fuel tank49.2 LReference

Engine (gross)44.7 kWReference

FPTReference

turbocharged aftercooled dieselReference

3-cylinder 6-valveReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke94 x 107 mmReference

EmissionsTier IVReference

Power (gross)44.7 kWReference

Fuel systemelectronic high-pressure common railReference

Air cleanerdryReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Max power36.3 kWReference

Power at rated engine speed34.9 kWReference

Max power44.4 kWReference

Power at rated engine speed43.6 kWReference

Transmission

8-speed mechanical shuttleReference

Typemechanical shuttleReference

Gears8 forward and reverseReference

Clutch279mm mechanical dry discReference

Four gears in two ranges with shuttle.Reference

PTO & Hydraulics

PTO (claimed)38.0 kWReference

PTO (tested)44.4 kWReference

Typeopen centerReference

Rear valves1 or 2Reference

Mid valves0 or 2Reference

Pump flow45.0 lpmReference

Steering flow20.8 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)1225 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2575Reference

Engine RPM540E@2016Reference

Power at rated PTO speed35.7 kWReference

Power at rated PTO speed43.2 kWReference

Dimensions

2WD Wheelbase244 cmReference

4WD Wheelbase247 cmReference

Weight4442 to 5060 poundsReference

Front tire7.5x16Reference

2WD Rear tire13.6x28Reference

2WD Standard tires (ag)Front: 7.5x16. Rear: 13.6x28Reference

2WD Standard tires (ag)Front: 8.3x24. Rear: 13.6x28Reference

Industrial front12.5x18Reference

Industrial rear18.4x24Reference

2WD Length328 cmReference

4WD Length340 cmReference

Width171 cmReference

2WD Height235 cmReference

4WD Height247 cmReference

2WD Weight2014 kgReference

4WD Weight2295 kgReference

Flange rear axle1369 mmReference

2WD Front tread142 to 197 cmReference

4WD Front tread155 to 175 cmReference

Rear tread133 to 173 cmReference

CaseIH Farmall 60A attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps75Reference

Battery volts12Reference

Attachment overview

CaseIH L545 loaderReference

CaseIH L545 MSL loaderReference

CaseIH L555 loaderReference

CaseIH L555 MSL loaderReference

Test results

NTTL 2199: diesel 8-speed 4WDReference

NTTL 2208: diesel 8-speed 2WDReference

Diesel 8-speed 4WDAugust 29 - 29, 2018Link: Nebraska Tractor Test 2199 fileReference

PTO performanceReference

Fuel use12.5 l/hourReference

Fuel use14.8 l/hourReference

Diesel 8-speed 2WDJanuary 15 - 17, 2019Link: Nebraska Tractor Test 2208 fileReference

Fuel use16.7 l/hourReference

Fuel use16.3 l/hourReference

Speeds

Reverse speeds are about 5% faster than forward.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
