Tractor · 2010Unverified

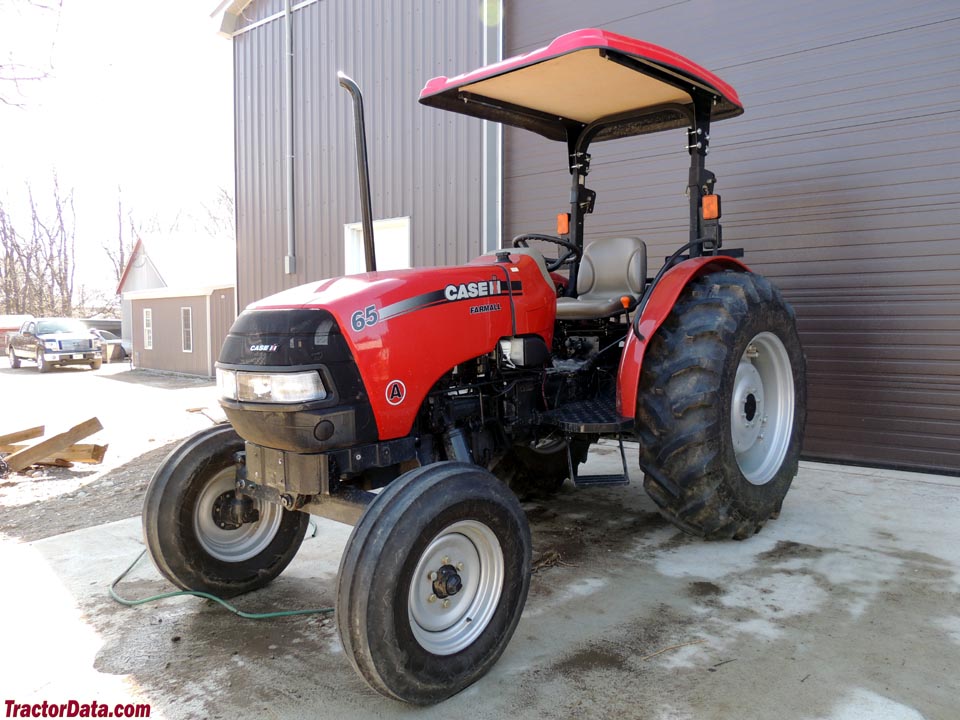

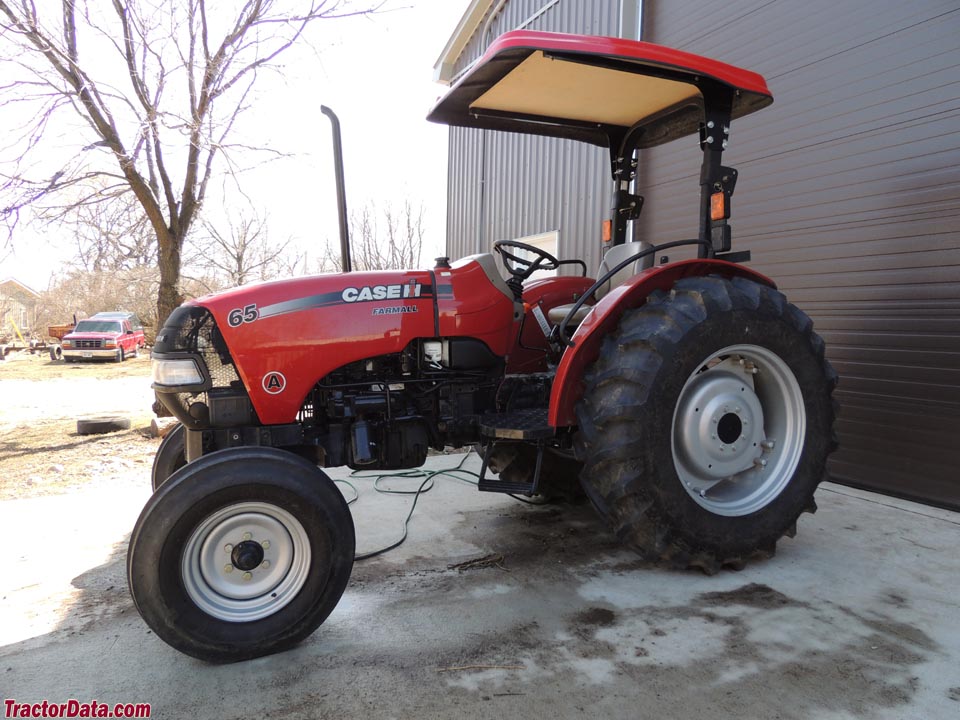

CaseIH Farmall 65A
CaseIH Farmall 65A — Farmall A Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Max power
46.0 kW
Weight
5059 to 5688 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in IndiaReference
Two- or four-wheel driveReference
Differential lockmechanical rear differential lock with foot pedal, limited slip 4WD front axleReference
Steeringhydrostatic powerReference
Differential mechanical dry disc brakesReference
Two-post foldable ROPS.Reference
Engine
FPT 3.2L 4-cyl dieselReference
Engine (gross)48.5 kWReference
FPTReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Power (gross)48.5 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Max power46.0 kWReference
Power at rated engine speed45.0 kWReference
Transmission
8-speed partially synchronizedReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
Clutch11-inch dry organic plateReference
Four gears in two ranges. Gear shifts 3-4 and 7-8 are synchronized.Reference
PTO & Hydraulics
PTO (claimed)42.5 kWReference
PTO (tested)46.0 kWReference
Typeopen center fixed displacement gear pumpReference
Valves1 or 2Reference
Pump flow39.4 lpmReference
Total flow70.8 lpmReference
Steering cap.8.0 LReference
Rear Type2/1Reference
Controlposition control and mechanical draft sensingReference
Rear lift (at 24"/610mm)1339 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed43.3 kWReference
Capacities
Fuel62.1 LReference
Steering8.0 LReference
Dimensions
Weight5059 to 5688 poundsReference
Front tire7.50x16Reference
2WD Rear tire16.9x30Reference
2WD Standard tires (ag)Front: 7.50x16. Rear: 16.9x30Reference
4WD Standard tires (ag)Front: 11.2x24. Rear: 16.9x30Reference
2WD Length348 cmReference
4WD Length354 cmReference
Width199 cmReference
Height246 cmReference
2WD Shipping weight2294 kgReference
4WD Shipping weight2580 kgReference
CaseIH Farmall 65A attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Charging volts12Reference
Battery CCA800Reference
Battery volts12Reference
Test results
Diesel 8-speed 4WDDecember 6 - 14, 2011Link: Nebraska Tractor Test 2013 fileReference
PTO performanceReference
Fuel use14.4 l/hourReference
Fuel use15.1 l/hourReference
Fuel use12.9 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
