Tractor · 2015Unverified

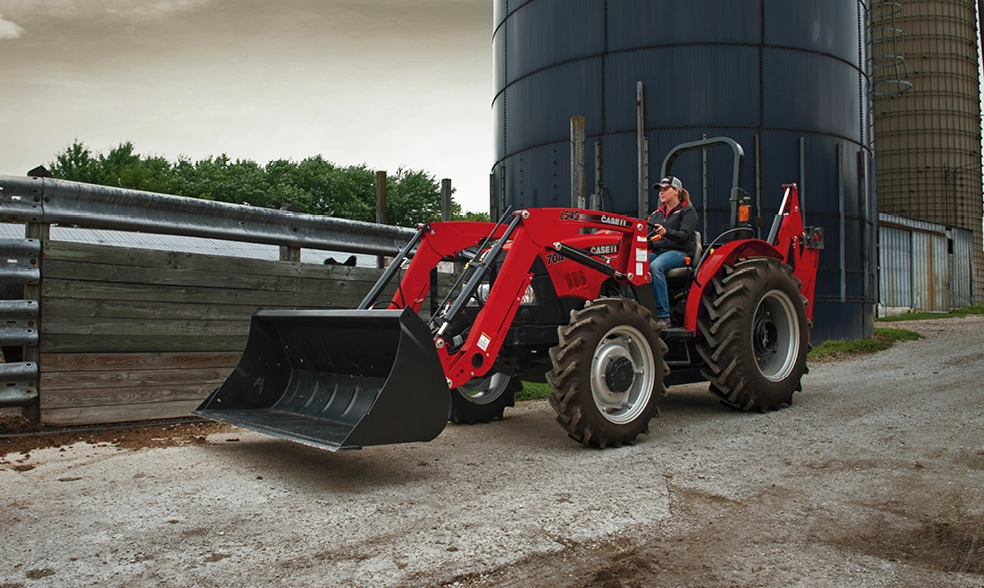

CaseIH Farmall 70A
CaseIH Farmall 70A — Farmall A Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
4442 to 5060 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in IndiaReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
FPT 2.2L 3-cyl dieselReference
Fuel tank49.2 LReference
Engine (gross)52.2 kWReference
FPTReference
turbocharged aftercooled dieselReference
3-cylinder 6-valveReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke94 x 107 mmReference
EmissionsTier IVReference
Power (gross)52.2 kWReference
Fuel systemelectronic high-pressure common railReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed42.5 kWReference
Power at rated engine speed47.7 kWReference
Transmission
8-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Clutch279mm mechanical cerametallic discReference
Four gears in two ranges with shuttle.Reference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
PTO (tested)47.7 kWReference
Typeopen centerReference
Rear valves1 or 2Reference
Mid valves0 or 2Reference
Pump flow45.0 lpmReference
Steering flow20.8 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1225 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2575Reference
Engine RPM540E@2016Reference
Power at rated PTO speed42.0 kWReference
Power at rated PTO speed47.3 kWReference
Dimensions
2WD Wheelbase244 cmReference
4WD Wheelbase247 cmReference
Weight4442 to 5060 poundsReference
Front tire7.5x16Reference
2WD Rear tire13.6x28Reference
2WD Standard tires (ag)Front: 7.5x16. Rear: 13.6x28Reference
2WD Standard tires (ag)Front: 8.3x24. Rear: 13.6x28Reference
Industrial front12.5x18Reference
Industrial rear18.4x24Reference
2WD Length328 cmReference
4WD Length340 cmReference
Width171 cmReference
2WD Height235 cmReference
4WD Height247 cmReference
2WD Weight2014 kgReference
4WD Weight2295 kgReference
Flange rear axle1369 mmReference
2WD Front tread142 to 197 cmReference
4WD Front tread155 to 175 cmReference
Rear tread133 to 173 cmReference
CaseIH Farmall 70A attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps75Reference
Battery volts12Reference
Attachment overview
CaseIH L545 loaderReference
CaseIH L545 MSL loaderReference
CaseIH L555 loaderReference
CaseIH L555 MSL loaderReference
Test results
NTTL 2200: diesel 8-speed 4WDReference
NTTL 2209: diesel 8-speed 2WDReference
Diesel 8-speed 4WDAugust 28 - September 5, 2018Link: Nebraska Tractor Test 2200 fileReference
PTO performanceReference
Fuel use16.7 l/hourReference
Fuel use16.3 l/hourReference
Diesel 8-speed 2WDJanuary 16 - 17, 2019Link: Nebraska Tractor Test 2209 fileReference
Fuel use17.8 l/hourReference
Fuel use17.4 l/hourReference
Speeds
Reverse speeds are about 5% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
