Tractor · 2008Unverified

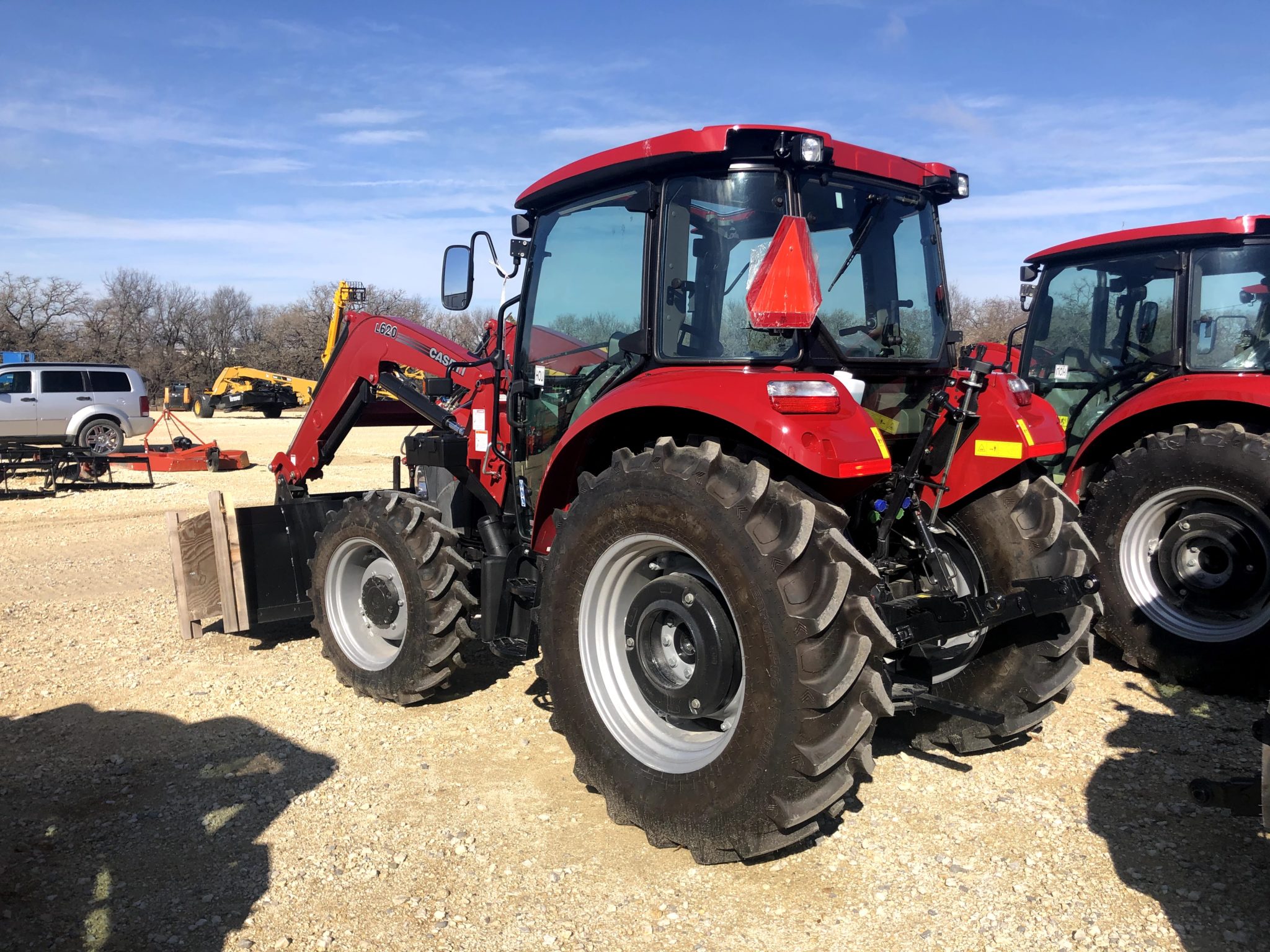

CaseIH Farmall 75C
CaseIH Farmall 75C — Model year 2008-20132014-2024 · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Max power
42.4 kW
Weight
5776 to 6768 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Jesi, ItalyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Straddle deck platform with ROPS; cab optionalReference
Variants
T4030similar New Holland modelReference
Engine
FPT 3.2L 4-cyl dieselReference
Fuel tank74.9 LReference
Engine (gross)56.7 kWReference
Drawbar (tested)42.4 kWReference
FPT F5CReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.2 LReference
Bore/Stroke99 x 104 mmReference
EmissionsTier IIIReference
Power (gross)56.7 kWReference
Air cleanerdual dry elementsReference
Pre-heatingthermostartReference
Compression17.5:1Reference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed49.6 kWReference
Max power42.4 kWReference
Transmission
16-speed mechanical shuttleReference
16-speed power shuttleReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Typepower shuttleReference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
PTO (tested)49.6 kWReference
Typeopen centerReference
Rear valves1 to 2Reference
Mid valves0 to 2Reference
Pump flow48.4 lpmReference
Total flow76.5 lpmReference
Steering flow28.0 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1796 kgReference
Rear PTOindependentReference
Clutchmechanical dry discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2206Reference
Power at rated PTO speed48.7 kWReference
Dimensions
2WD Wheelbase217 cmReference
4WD Wheelbase209 cmReference
Weight5776 to 6768 poundsReference
Height (ROPS)197 cmReference
Height (cab)232 cmReference
Shipping2619 kgReference
Shipping2869 kgReference
Shipping2820 kgReference
Shipping3069 kgReference
CaseIH Farmall 75C attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA730Reference
Battery volts12Reference
Attachment overview
CaseIH L720 loaderReference
CaseIH L730 loaderReference
Test results
Diesel 16-speed 4WDApril 2008 - May 2008, Link: OCED Tractor Test 2459 fileReference
PTO performanceReference
Fuel use16.3 l/hourReference
Drawbar performanceReference
Gear 3MH used for power test.Reference
Max pull3175 kgReference
Gear 1MH used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
