Tractor · 2009Unverified

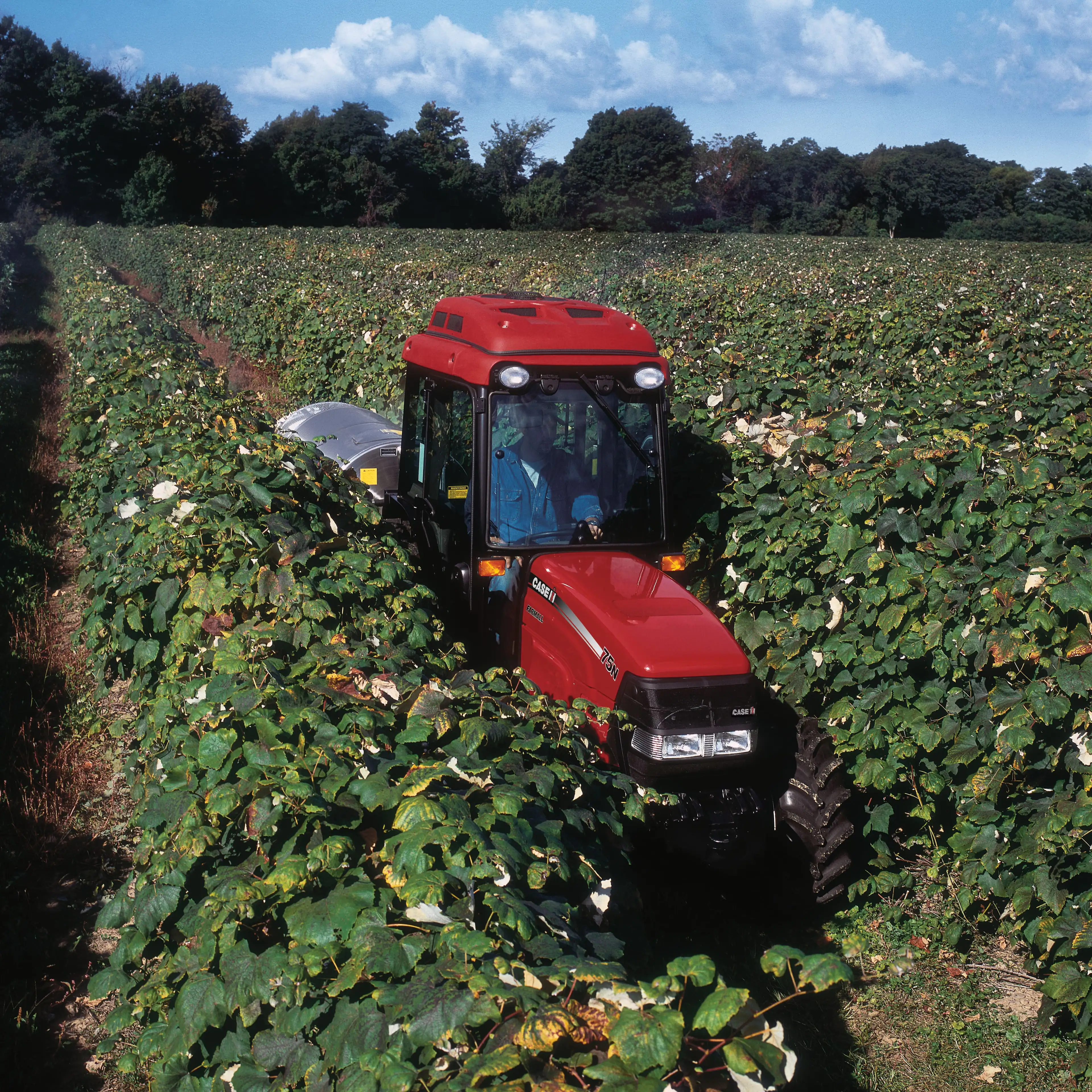

CaseIH Farmall 75N

Name: CaseIH Farmall 75N
Brand: CaseIH

CaseIH Farmall 75N — Farmall N Series · 76 hp. Reference specifications; pending source verification.

The CaseIH Farmall 75N is a tractor with a rated power output of 76 hp, a mid-range figure for its class. Produced from 2009 to 2016, it features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with a four-wheel drive system and a hydrostatic transmission. The tractor has an operating weight range of 5027 to 5886 pounds. It is suitable for operating in areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

76 hp

Weight

5027 to 5886 pounds

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

76 hp

Transmissions

16-speed mechanical shuttle

Production years

2009-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Orchard/Vineyard tractorReference

Original price was $41,624 in 2014 with ROPSReference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockmechanical (2WD)Reference

Differential lockelectro-hydraulic (4WD)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post foldable mid ROPS. Cab optional with air-conditioning.Reference

Engine

FPT 3.2L 4-cyl dieselReference

Fuel tank75.7 LReference

Engine (gross)56.7 kWReference

FPTReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.2 LReference

Bore/Stroke99 x 104 mmReference

EmissionsTier IIIReference

Power (gross)56.7 kWReference

Fuel systemmechanical direct injectionReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed mechanical shuttleReference

16-speed power shuttleReference

32-speed power shuttleReference

Typemechanical shuttleReference

Gears16 forward and reverseReference

Clutchdry discReference

Four speeds in four ranges with synchronized shuttle shifting.Reference

Typepower shuttleReference

Clutchwet discReference

Gears32 forward and 16 reverseReference

PTO & Hydraulics

PTO (claimed)46.2 kWReference

Typeopen centerReference

Rear valves2 or 3Reference

Pump flow48.1 lpmReference

Pump flow64.0 lpmReference

Total flow75.7 lpmReference

Steering flow27.3 lpmReference

Rear TypeIIReference

Controllower link draft sensingReference

Rear lift (at 24"/610mm)1995 kgReference

Rear PTOindependentReference

Clutchhydraulic dry discReference

Rear PTO Type540Reference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase203 cmReference

4WD Wheelbase205 cmReference

Weight5027 to 5886 poundsReference

Front tire7.50R18Reference

Rear tire14.9R28Reference

Ag front7.50R18Reference

Ag rear14.9R28Reference

Ag rear380/85R28Reference

Length386 cmReference

Width134 cmReference

Ground clearance26 cmReference

Flange rear axleReference

2280 kgReference

2419 kgReference

2522 kgReference

2669 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA800Reference

Battery volts12Reference

CaseIH Farmall 75N Height

Hood129 cmReference

ROPS220 cmReference

Cab230 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
