Tractor · 2017Unverified

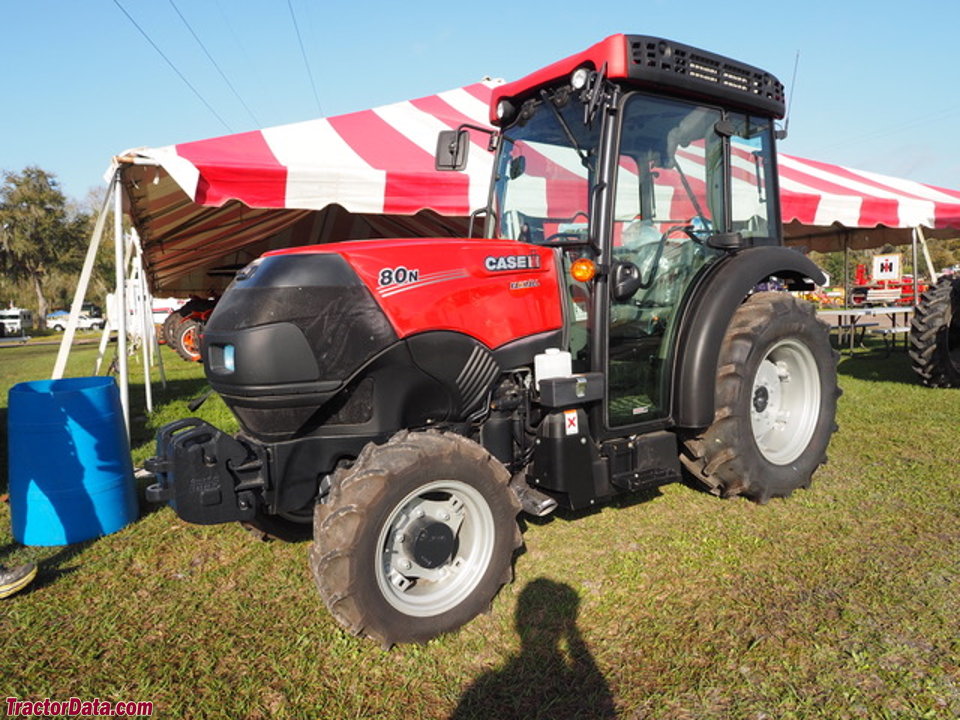

CaseIH Farmall 80N

Name: CaseIH Farmall 80N
Brand: CaseIH

CaseIH Farmall 80N — Farmall N Series · 74 hp. Reference specifications; pending source verification.

The CaseIH Farmall 80N is a mid-range tractor model with an engine rating of approximately 74 hp. It was produced in 2017. It features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its operating weight ranges from 5300 to 6094 pounds, suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

74 hp

Weight

5300 to 6094 pounds

Catalogue coverage

Variants represented

Richest spec table

68 rows

Recorded power

74 hp

Transmissions

16-speed partially synchronized

Production years

2017-2017

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Orchard/Vineyard tractorReference

Original price$58,795 (2019 Syncro ROPS 2WD )Reference

Original price$74,956 (2019 Hi-Lo Cab 4WD )Reference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab optional with air-conditioning.Reference

Engine

FPT 3.4L 4-cyl dieselReference

Fuel tank71.9 LReference

Engine (gross)55.2 kWReference

FPTReference

turbocharged aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsInterim Tier IVReference

Power (gross)55.2 kWReference

Fuel systemelectronic high-pressure common railReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed partially synchronizedReference

16-speed power shiftReference

32-speed Hi-Lo power shiftReference

Typepartially synchronizedReference

Gears16 forward and reverseReference

Four synchronized gears in four non-synchronized ranges with mechanical shuttle.Reference

Typepower shiftReference

TypeHi-Lo power shiftReference

Gears32 forward and 16 reverseReference

PTO & Hydraulics

PTO (claimed)46.2 kWReference

Typeopen centerReference

Rear valves2 or 3Reference

Mid valves2Reference

Pump flow64.0 lpmReference

Pump flow79.9 lpmReference

Steering flow43.1 lpmReference

Rear TypeII/IReference

Rear lift (at ends)2600 kgReference

Rear lift (at 24"/610mm)1714 kgReference

Front HitchoptionalReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase243 cmReference

Weight5300 to 6094 poundsReference

Front tire6.00-16Reference

2WD Rear tire14.9R28Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 14.9R28Reference

4WD Standard tires (ag)Front: 7.50R18. Rear: 14.9R28Reference

ROPS Length377 cmReference

Cab Length403 cmReference

Width134 cmReference

Height (ROPS)228 cmReference

Height (cab)232 cmReference

Ground clearance28 cmReference

Flange rear axleReference

2WD Cab2546 kgReference

2WD ROPS2404 kgReference

4WD Cab2764 kgReference

4WD ROPS2669 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
