Tractor · 2008Unverified
CaseIH Farmall 85C
CaseIH Farmall 85C — Model year 2008-20122013-2015 · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Max power
48.0 kW
Weight
6503 to 6944 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Jesi, ItalyReference
Original price$40,062 (2011)Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Straddle deck platform with two-post foldable ROPS. Cab optionalReference
Variants
T4040similar New Holland modelReference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank87.8 LReference
Engine (gross)62.6 kWReference
Drawbar (tested)48.0 kWReference
FPT NEFReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIIReference
Power (gross)62.6 kWReference
Fuel systemBosch fuel injection pumpReference
Air cleanerdual dry elementsReference
Pre-heatingthermostartReference
Compression17.5:1Reference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed56.0 kWReference
Max power48.0 kWReference
Transmission
16-speed mechanical shuttleReference
16-speed power shuttleReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
Four synchronized gears (1-4) in four ranges (L/ML/MH/H) with synchronized mechanical shuttle.Reference
Typepower shuttleReference
Clutchwet discReference
Four synchronized gears (1-4) in four ranges (L/ML/MH/H) with clutchless power shuttle.Reference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
PTO (tested)56.0 kWReference
Typeopen centerReference
Rear valves1 to 2Reference
Mid valves0 to 2Reference
Pump flow60.9 lpmReference
Total flow96.5 lpmReference
Steering flow35.6 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1796 kgReference
Rear PTOindependentReference
Clutchmechanical dry discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2206Reference
Power at rated PTO speed55.5 kWReference
Dimensions
2WD Wheelbase226 cmReference
4WD Wheelbase218 cmReference
Weight6503 to 6944 poundsReference
Front tire11.2R24Reference
Rear tire16.9R30Reference
Ag front11.2R24Reference
Ag rear16.9R30Reference
Ag front7.50x16Reference
Ag front11L-15Reference
Ag front12.4R20Reference
Ag front11.2R20Reference
Ag rear13.6x28Reference
Ag rear14.9x28Reference
Ag rear16.9x30Reference
Ag rear16.9x24Reference
Ag rear16.9R24Reference
Ag rear14.9R28Reference
Ag rear16.9R28Reference
Lawn/turf front13.6-16.1Reference
Lawn/turf front12LL-16Reference
Lawn/turf rear16.9-24Reference
Lawn/turf rear22.5LL-16.1Reference
Industrial front12.5/80-18Reference
Industrial rear19.5L-24Reference
Industrial rear16.9-24Reference
Height (ROPS)197 cmReference
Height (cab)232 cmReference
Shipping weight2949 kgReference
Shipping weight3149 kgReference

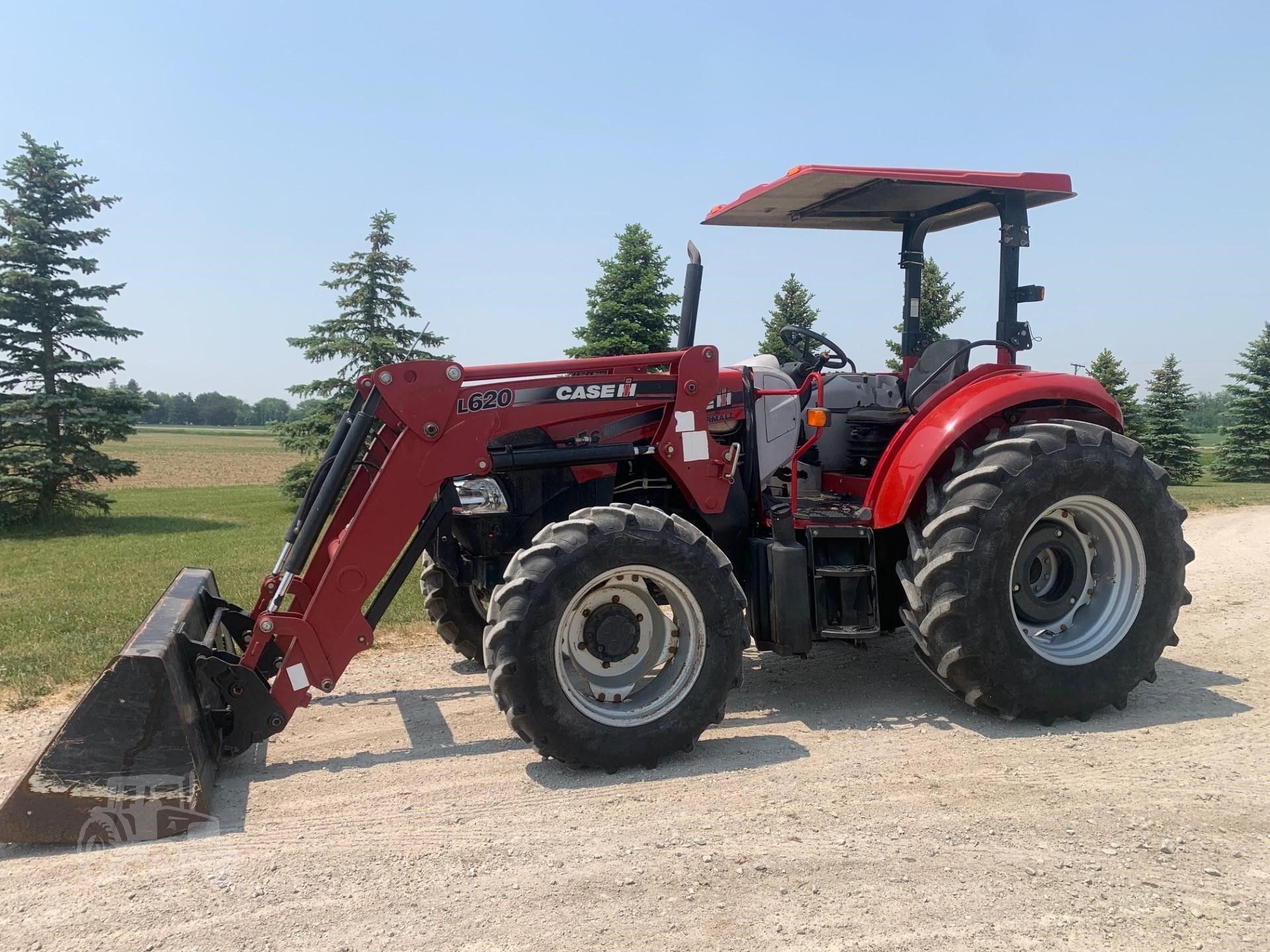

CaseIH Farmall 85C attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA730Reference
Battery volts12Reference
Attachment overview
CaseIH L720 loaderReference
CaseIH L730 loaderReference
Test results
Diesel 16-speed 4WDJuly 2008 - September 2008, Link: OCED Tractor Test 2478 fileReference
PTO performanceReference
Fuel use17.8 l/hourReference
Fuel use17.0 l/hourReference
Drawbar performanceReference
Gear 3MH used for power test.Reference
Max pull3299 kgReference
Gear 1MH used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
