Tractor · 2008Unverified

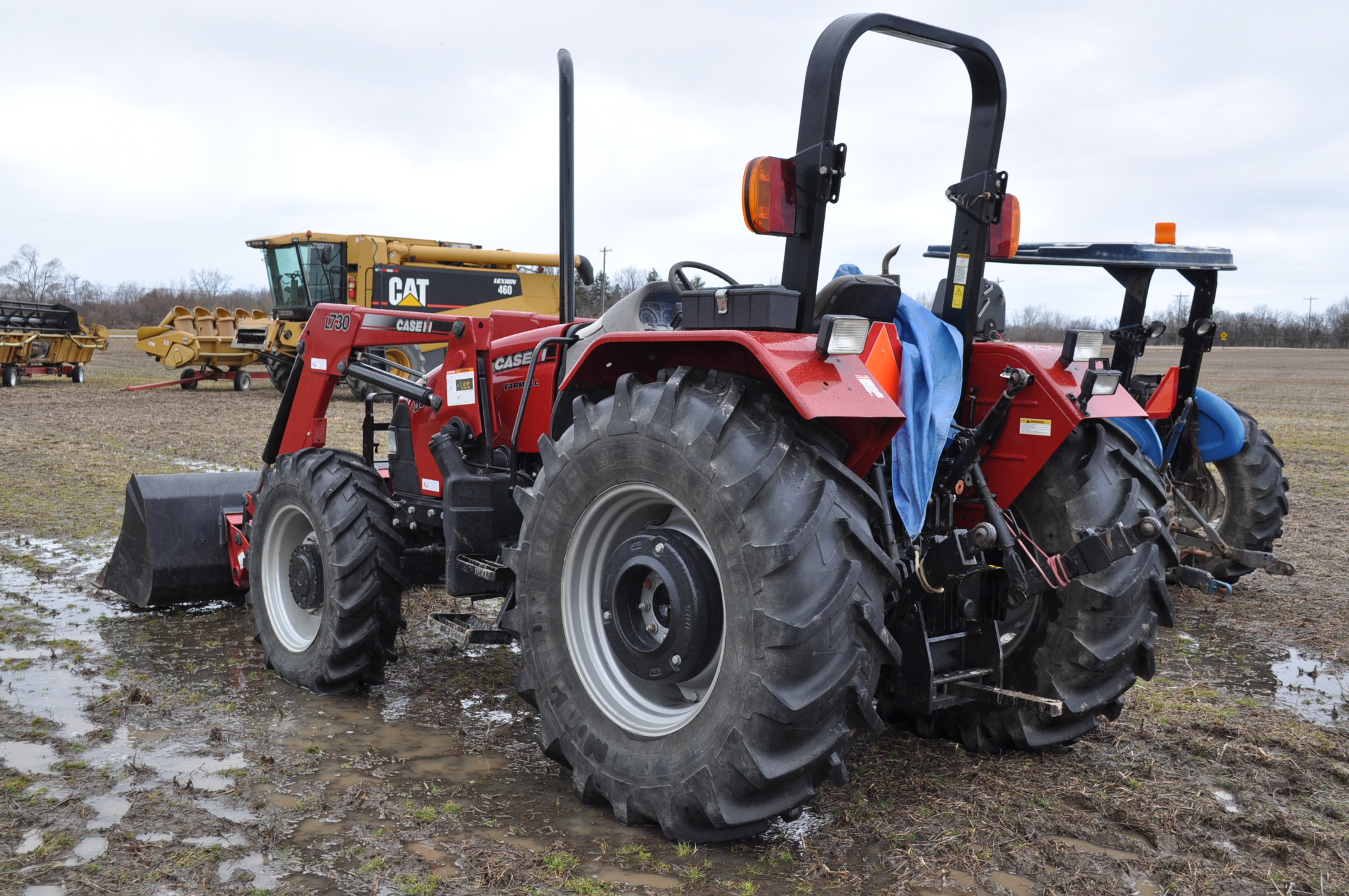

CaseIH Farmall 85U
CaseIH Farmall 85U — Farmall U Series · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Max power
55.6 kW
Weight
6393 to 7496 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Jesi, ItalyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Flat deck platform with ROPS; cab optionalReference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank126.8 LReference
Engine (gross)63.4 kWReference
FPTReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power (gross)63.4 kWReference
Air cleanerdual dry elementsReference
Pre-heatinggrid heaterReference
Compression17:1Reference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Max power55.6 kWReference
Power at rated engine speed53.0 kWReference
Transmission
12-speed mechanical shuttleReference
20-speed mechanical shuttle with creeperReference
12-speed power shuttleReference
24-speed power shuttle with partial power shiftReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Three ranges with four gears per range. Left-hand reverser requires use of clutch to change directionsReference
Typemechanical shuttle with creeperReference
Gears20 forward and 12 reverseReference
Typepower shuttleReference
Typepower shuttle with partial power shiftReference
Gears24 forward and reverseReference
Clutchwet discReference
12x12 power shuttle with high-low power shift.Reference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
PTO (tested)55.6 kWReference
Typeopen centerReference
Valves2 rear, 1 mid (optional)Reference
Pump flow60.9 lpmReference
Total flow100.3 lpmReference
Steering flow39.4 lpmReference
Rear Type2Reference
Controlmechanical lower-link draft control, optional electronic draft control (EDC)Reference
Rear lift (at 24"/610mm)2605 kgReference
Rear lift (at 24"/610mm)2923 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000 (optional)Reference
Power at rated PTO speed54.3 kWReference
Dimensions
Wheelbase234 cmReference
Wheelbase234 cmReference
Weight6393 to 7496 poundsReference
Shipping2899 kgReference
Shipping3200 kgReference
Shipping3099 kgReference
Shipping3400 kgReference
CaseIH Farmall 85U attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA960Reference
Battery volts12Reference
Attachment overview
CaseIH L730 loaderReference
CaseIH L740 loaderReference
CaseIH Farmall 85U Height
ROPS276 cmReference
Cab256 cmReference
Exhaust298 cmReference
Test results
Dieel 12-speed 4WDJanuary 2009 - March 2009, Link: OCED Tractor Test 2503 fileReference
PTO performanceReference
Fuel use17.0 l/hourReference
Fuel use18.2 l/hourReference
Fuel use17.8 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
