Tractor · 2008Unverified
CaseIH Farmall 90
CaseIH Farmall 90 — Farmall Utility Series · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Max power
54.8 kW
Weight
5702 to 6915 pounds
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerTurk TractorReference
Utility tractorReference
Built in Ankara, TurkeyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Flat deck platform with ROPS. Cab optional.Reference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine (gross)62.6 kWReference
Drawbar (tested)48.6 kWReference
FPTReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power (gross)62.6 kWReference
Fuel systemdirect injection with mechanical governorReference
Air cleanerdual dry elementsReference
Pre-heatingthermostartReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Max power54.8 kWReference
Power at rated engine speed54.2 kWReference
Max power48.6 kWReference
Transmission
12-speed mechanical shuttleReference
20-speed mechanical shuttle with creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutchmechanical dry discReference
Three ranges with four gears per range. Left-hand reverser requires use of clutch to change directionsReference
Typemechanical shuttle with creeperReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
PTO (tested)54.8 kWReference
Typeopen centerReference
Pressure190.0 barReference
Rear valves1 to 3Reference
Pump flow51.5 lpmReference
Total flow82.1 lpmReference
Steering flow30.7 lpmReference
Rear TypeIIReference
Controlposition control and mechanical lower-link draft sensingReference
Rear lift (at 24"/610mm)2279 kgReference
Rear PTOindependentReference
Clutchmechanical dry clutchReference
Rear PTO Type540 (1.375)Reference
Power at rated PTO speed52.4 kWReference
Dimensions
2WD Wheelbase231 cmReference
4WD Wheelbase220 cmReference
Weight5702 to 6915 poundsReference
Height (ROPS)256 cmReference
Height (cab)261 cmReference
Shipping2586 kgReference
Shipping2836 kgReference
Shipping2886 kgReference
Shipping3136 kgReference

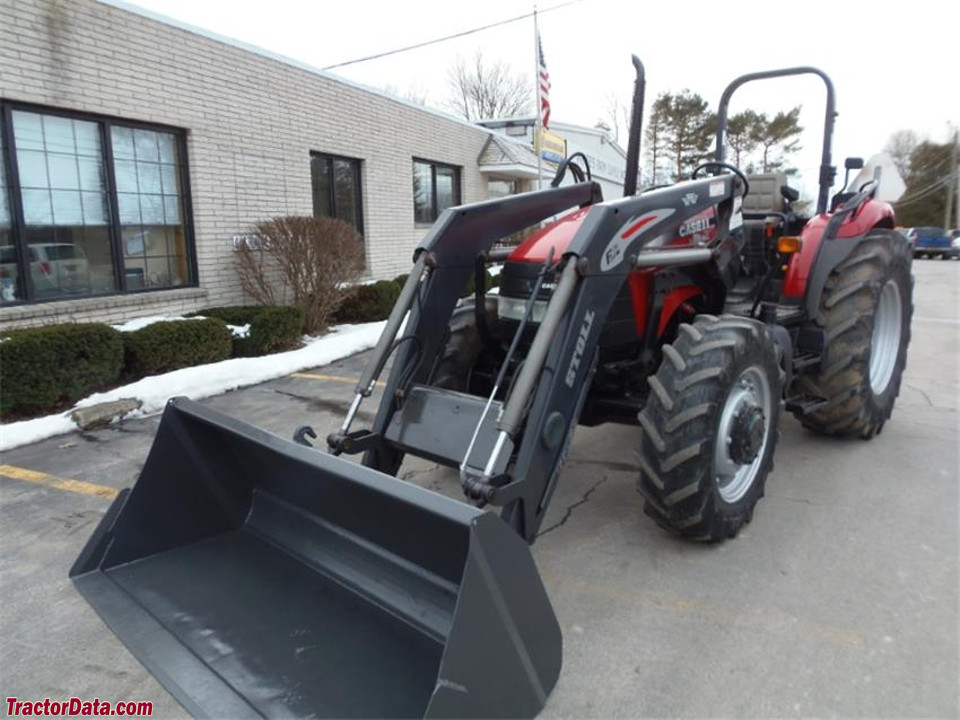

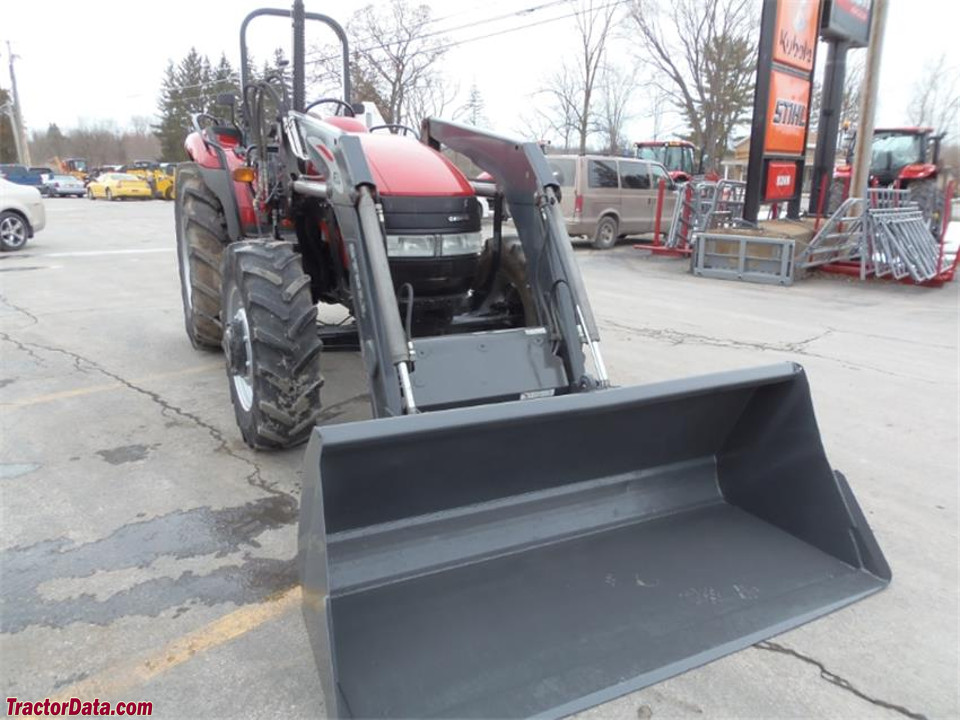

CaseIH Farmall 90 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Battery CCA800Reference
Battery volts12Reference
Test results
Diesel 12-speed 4WDDecember 2008 - 2008, Link: OCED Tractor Test 2509 fileReference
PTO performanceReference
Fuel use17.8 l/hourReference
Fuel use16.7 l/hourReference
Drawbar performanceReference
Fuel use17.0 l/hourReference
Max pull3295 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
