Tractor · 2015Unverified

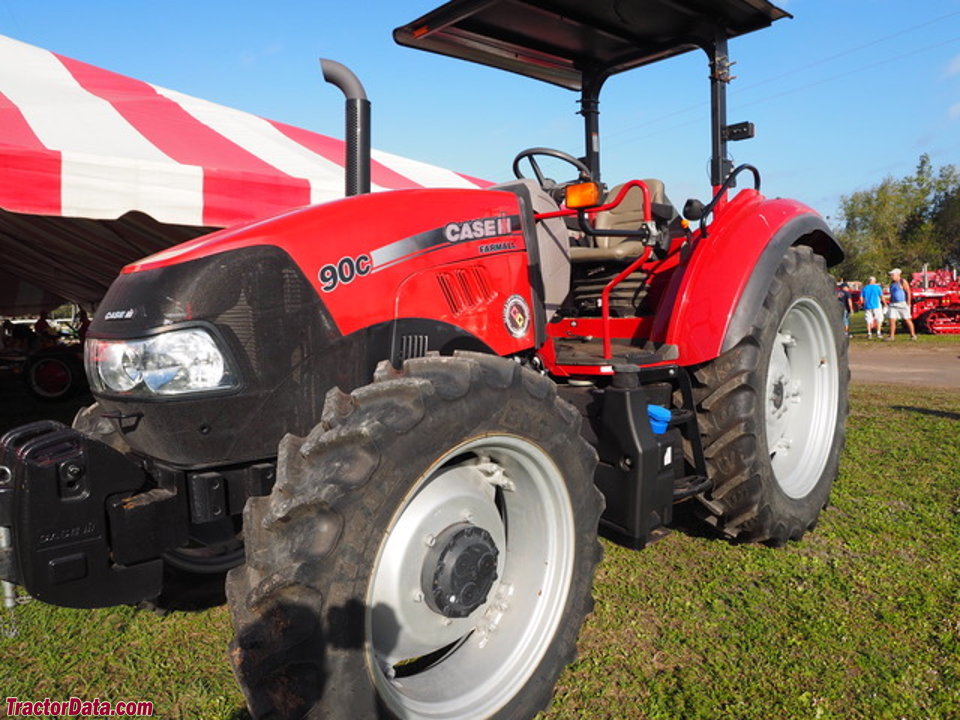

CaseIH Farmall 90C

Name: CaseIH Farmall 90C
Brand: CaseIH

CaseIH Farmall 90C — Model year 2015-20252026-2027 · 86 hp. Reference specifications; pending source verification.

The CaseIH Farmall 90C is a tractor with a rated power output of 86 horsepower, a mid-range figure for its class. It was produced from 2015 to 2027 and features a 4-cylinder turbocharged diesel liquid-cooled engine, combined with four-wheel drive and a 12-speed gearbox. The tractor's operating weight ranges from 6989 to 8157 pounds, and it is suitable for operations on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

86 hp

Max power

56.4 kW

Weight

6989 to 8157 pounds

Catalogue coverage

Variants represented

Richest spec table

89 rows

Recorded power

86 hp

Transmissions

12-speed mechanical shuttle

Production years

2015-2027

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Utility tractorReference

Original price$50,906 (2016 mech-shuttle ROPS 2WD)Reference

Original price$74,557 (2016 Hi-Lo Cab 4WD)Reference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab optional with air-conditioning.Reference

Engine

PowerStar 90similar New Holland modelReference

FPT 3.4L 4-cyl dieselReference

Fuel tank114.7 LReference

Exhaust fluid (DEF)10.6 LReference

Engine (gross)64.1 kWReference

Drawbar (tested)38.3 kWReference

FPTReference

wastegate turbocharged and aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reduction with cooled exhaust-gas recirculation (SCR)Reference

Power (gross)64.1 kWReference

Fuel systemhigh pressure common rail electronic direct injectionReference

StarterelectricReference

Starter volts12Reference

Max power56.4 kWReference

Power at rated engine speed49.7 kWReference

Max power38.3 kWReference

Transmission

12-speed mechanical shuttleReference

12-speed power shuttleReference

24-speedReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Four synchronized gears in three non-synchronized ranges with mechanical shuttle shift.Reference

Typepower shuttleReference

Four synchronized gears in three non-synchronized ranges with power shuttle shift.Reference

Gears24 forward and reverseReference

Four synchronized gears in three non-synchronized ranges with power shuttle shift and two-speed high-low shift.Reference

PTO & Hydraulics

PTO (claimed)54.4 kWReference

PTO (tested)56.4 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow60.6 lpmReference

Rear TypeII/IReference

Controltop link draft sensingReference

Rear lift (at 24"/610mm)1968 kgReference

Rear lift (at 24"/610mm)2549 kgReference

Rear Armstelescopic link endsReference

Drawbarswinging extendable drawbarReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1957Reference

Engine RPM1000@2125Reference

Power at rated PTO speed56.4 kWReference

Dimensions

2WD Wheelbase234 cmReference

4WD Wheelbase228 cmReference

Weight6989 to 8157 poundsReference

Front tire7.50x16Reference

2WD Rear tire16.9R30Reference

2WD Standard tires (ag)Front: 7.50x16. Rear: 16.9R30Reference

4WD Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference

4WD Standard tires (ag)Front: 14.9R24. Rear: 18.4R34Reference

2WD Length414 cmReference

4WD Length406 cmReference

Width192 cmReference

Height (ROPS)270 cmReference

Height (cab)259 cmReference

Flange rear axleReference

2WD ROPS3170 kgReference

4WD ROPS3480 kgReference

2WD Cab3390 kgReference

4WD Cab3700 kgReference

CaseIH Farmall 90C attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

Case IH L575 loaderReference

Case IH L735 loaderReference

Test results

Diesel 12-speed 4WDApril 2016 - 2016, Link: OCED Tractor Test 3002 fileReference

PTO performanceReference

Fuel use16.7 l/hourReference

Fuel use17.8 l/hourReference

Drawbar performanceReference

Fuel use16.3 l/hourReference

Gear 3M used for power test.Reference

Max pull3068 kgReference

Gear 2M used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
