Tractor · 2008Unverified
CaseIH Farmall 95
CaseIH Farmall 95 — Farmall Utility Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Max power
55.5 kW
Weight
6107 to 7320 pounds
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerTurk TractorReference
Utility tractorReference
Built in Ankara, TurkeyReference
Two- or four-wheel driveReference
Differential lockmechanical rear lockReference
Power steeringReference
Hydraulic wet disc brakesReference
Flat deck platform with ROPS. Cab optional.Reference
Variants
TD5050similar New Holland modelReference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine (gross)67.1 kWReference
Drawbar (tested)55.5 kWReference
FPTReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power (gross)67.1 kWReference
Fuel systemdirect injection with mechanical governorReference
Air cleanerdual dry elementsReference
Pre-heatingthermostartReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed60.2 kWReference
Max power55.5 kWReference
Transmission
12-speed mechanical shuttleReference
20-speed mechanical shuttle with creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutchmechanical dry discReference
Three ranges with four gears per range. Left-hand reverser requires use of clutch to change directionsReference
Typemechanical shuttle with creeperReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
PTO (tested)60.2 kWReference
Typeopen centerReference
Pressure190.0 barReference
Rear valves1 to 3Reference
Pump flow51.5 lpmReference
Total flow82.1 lpmReference
Steering flow30.7 lpmReference
Rear TypeIIReference
Controlposition control and mechanical lower-link draft sensingReference
Rear lift (at 24"/610mm)2279 kgReference
Rear PTOindependentReference
Clutchmechanical dry clutchReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed60.1 kWReference
Dimensions
2WD Wheelbase238 cmReference
4WD Wheelbase233 cmReference
Weight6107 to 7320 poundsReference
Height (ROPS)256 cmReference
Height (cab)261 cmReference
Shipping2770 kgReference
Shipping3020 kgReference
Shipping3069 kgReference
Shipping3320 kgReference

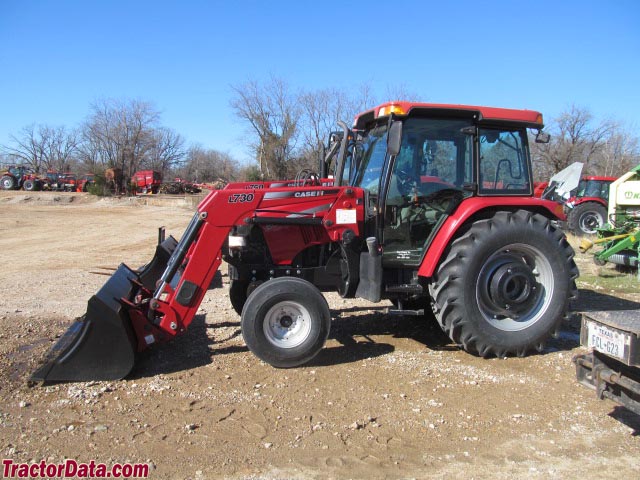

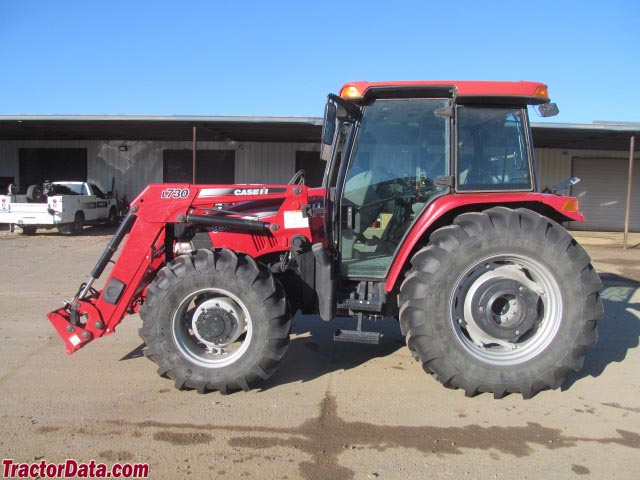

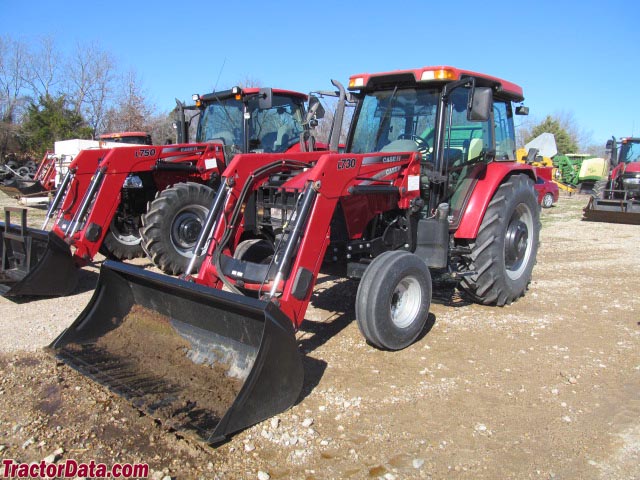

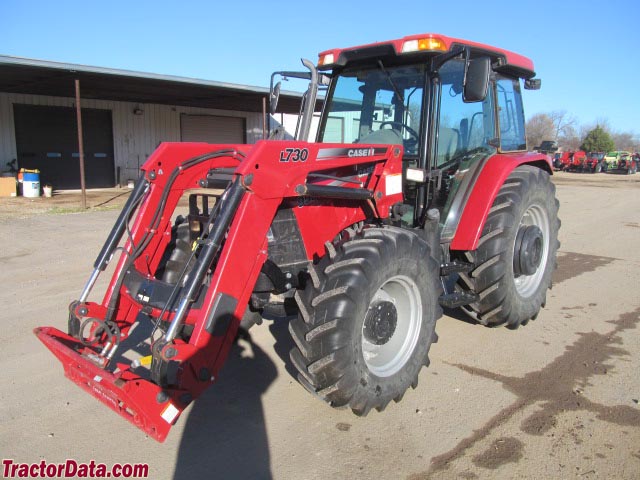

CaseIH Farmall 95 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Battery CCA800Reference
Battery volts12Reference
Test results
Diesel 12-speed 4WDDecember 2008 - 2008, Link: OCED Tractor Test 2510 fileReference
PTO performanceReference
Fuel use20.1 l/hourReference
Fuel use19.7 l/hourReference
Drawbar performanceReference
Fuel use19.3 l/hourReference
Max pull3363 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
