Tractor · 2009Unverified

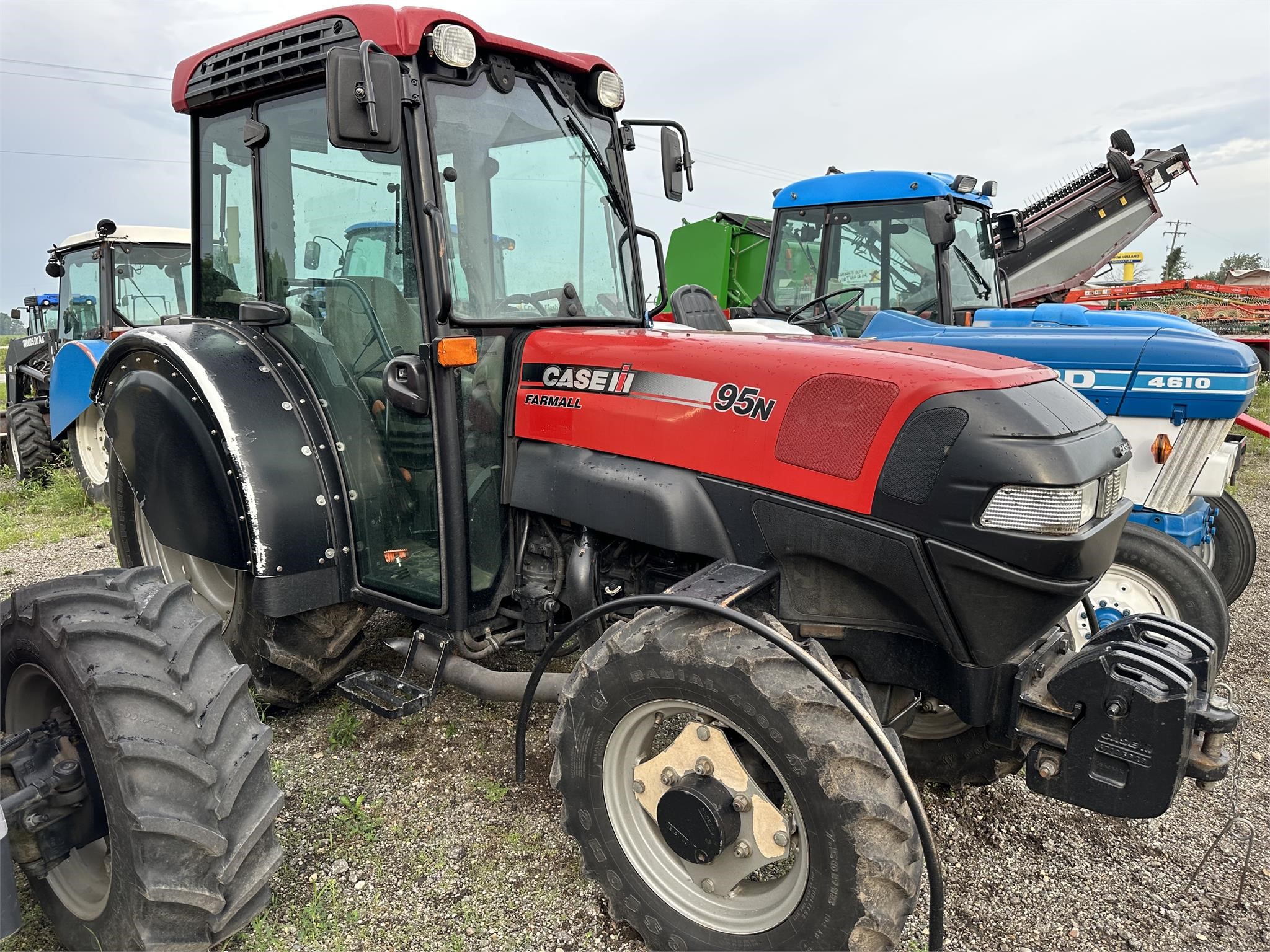

CaseIH Farmall 95N
CaseIH Farmall 95N — Farmall N Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
5820 to 6107 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Orchard/Vineyard tractorReference
Original price was $50,336 in 2014 with ROPSReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post foldable mid ROPS. Cab optional with air-conditioning.Reference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank75.7 LReference
Engine (gross)70.8 kWReference
FPTReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIIReference
Power (gross)70.8 kWReference
Fuel systemmechanical direct injectionReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed mechanical shuttleReference
16-speed power shuttleReference
32-speed power shuttleReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
Four speeds in four ranges with synchronized shuttle shifting.Reference
Typepower shuttleReference
Clutchwet discReference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
PTO (claimed)61.1 kWReference
Typeopen centerReference
Rear valves2 or 3Reference
Pump flow48.1 lpmReference
Pump flow64.0 lpmReference
Total flow99.9 lpmReference
Steering flow34.8 lpmReference
Rear TypeIIReference
Controllower link draft sensingReference
Rear lift (at 24"/610mm)1995 kgReference
Rear PTOindependentReference
Clutchhydraulic dry discReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase217 cmReference
Weight5820 to 6107 poundsReference
Front tire7.50R18Reference
Rear tire14.9R28Reference
Ag front7.50R18Reference
Ag rear14.9R28Reference
Ag rear380/85R28Reference
Length401 cmReference
Width135 cmReference
Weight2639 kgReference
Weight2770 kgReference
Ground clearance26 cmReference
Flange rear axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA800Reference
Battery volts12Reference
CaseIH Farmall 95N Height
Hood129 cmReference
ROPS232 cmReference
Cab230 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
