Tractor · 2008Unverified

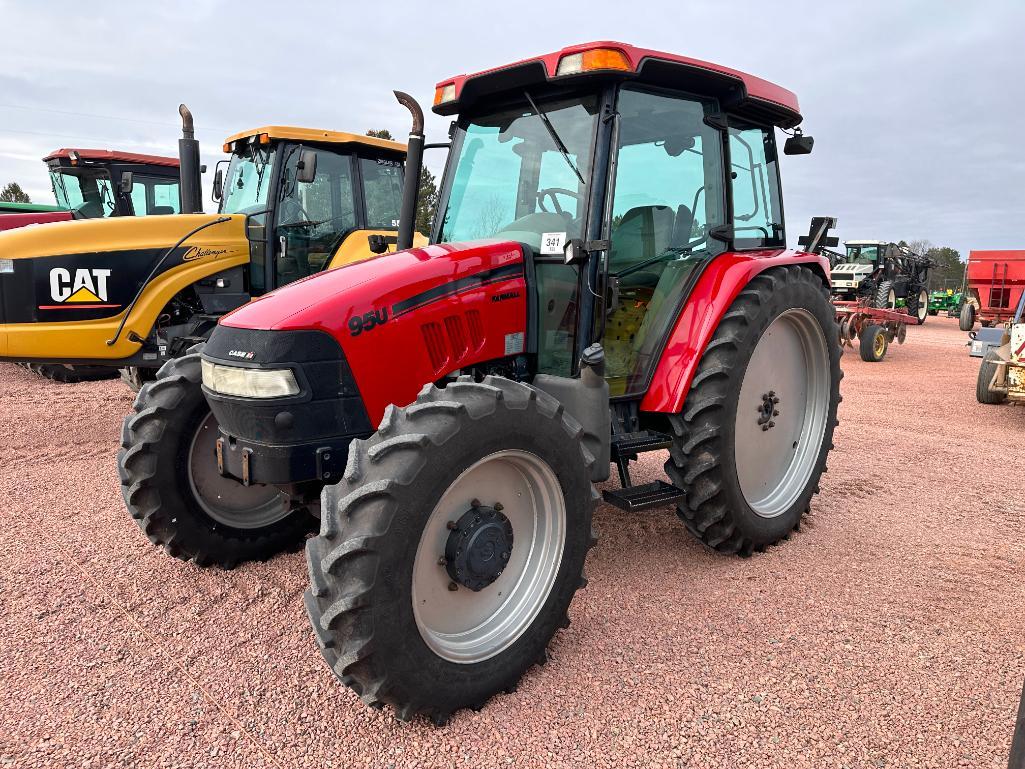

CaseIH Farmall 95U
CaseIH Farmall 95U — Farmall U Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Max power
65.0 kW
Weight
7.275 to 7936 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Jesi, ItalyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Straddle deck platform with ROPS; cab optionalReference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank126.8 LReference
Engine (gross)70.8 kWReference
Drawbar (tested)53.7 kWReference
FPTReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
EmissionsTier 3Reference
Power (gross)70.8 kWReference
Air cleanerdual dry elementsReference
Pre-heatinggrid heaterReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Max power65.0 kWReference
Power at rated engine speed64.0 kWReference
Max power53.7 kWReference
Transmission
12-speed mechanical shuttleReference
20-speed mechanical shuttle with creeperReference
12-speed power shuttleReference
24-speed power shuttle with partial power shiftReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Three ranges with four gears per range. Left-hand reverser requires use of clutch to change directionsReference
Typemechanical shuttle with creeperReference
Gears20 forward and 12 reverseReference
Typepower shuttleReference
Clutchwet discReference
Typepower shuttle with partial power shiftReference
Gears24 forward and reverseReference
12x12 power shuttle with high-low power shift.Reference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
PTO (tested)65.0 kWReference
Typeopen centerReference
Valves2 rear, 1 mid (optional)Reference
Pump flow60.9 lpmReference
Total flow100.3 lpmReference
Steering flow39.4 lpmReference
Rear Type2Reference
Controlmechanical lower-link draft control, optional electronic draft control (EDC)Reference
Rear lift (at 24"/610mm)2605 kgReference
Rear lift (at 24"/610mm)2923 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed63.7 kWReference
Dimensions
Wheelbase234 cmReference
Wheelbase234 cmReference
Weight7.275 to 7936 poundsReference
Shipping3099 kgReference
Shipping3400 kgReference
Shipping3 kgReference
Shipping3599 kgReference
CaseIH Farmall 95U attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA960Reference
Battery volts12Reference
Attachment overview
CaseIH L730 loaderReference
CaseIH L740 loaderReference
CaseIH Farmall 95U Height
ROPS276 cmReference
Cab256 cmReference
Exhaust298 cmReference
Test results
Diesel 12-speed 2WDNovember 2008 - February 2009, Link: OCED Tractor Test 2507 fileReference
PTO performanceReference
Fuel use18.9 l/hourReference
Fuel use20.8 l/hourReference
Fuel use20.4 l/hourReference
Drawbar performanceReference
Gear 3-II used for power test.Reference
Max pull2841 kgReference
Gear 4I used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
