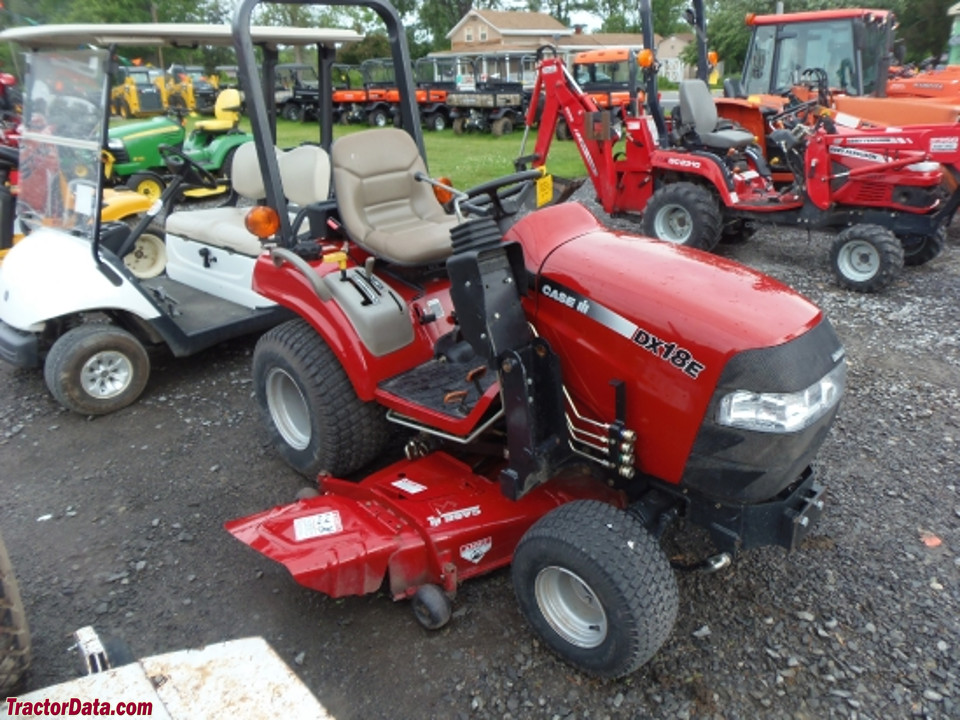

CaseIH Farmall DX18E

Name: CaseIH Farmall DX18E
Brand: CaseIH

CaseIH Farmall DX18E — DXE Series · 18 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Weight

596 kg

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Two-post fixed ROPS. Canopy and soft cab optional.Reference

Variants

TZ18DAsimilar New Holland modelReference

Engine

Shibaura 1.0L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine (gross)13.4 kWReference

Shibaura S753Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.0 LReference

Bore/Stroke75 x 72 mmReference

Power (gross)13.4 kWReference

Compression24:1Reference

Rated RPM3000Reference

Idle RPM1380-3200Reference

Firing order1-2-3Reference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)10.2 kWReference

Typeopen centerReference

Pump flow14.2 lpmReference

Total flow20.8 lpmReference

Steering flow7.0 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)317 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2200Reference

Dimensions

Wheelbase139 cmReference

Weight596 kgReference

Length244 cmReference

Width116 cmReference

Height (ROPS)184 cmReference
