Tractor · 2004Unverified

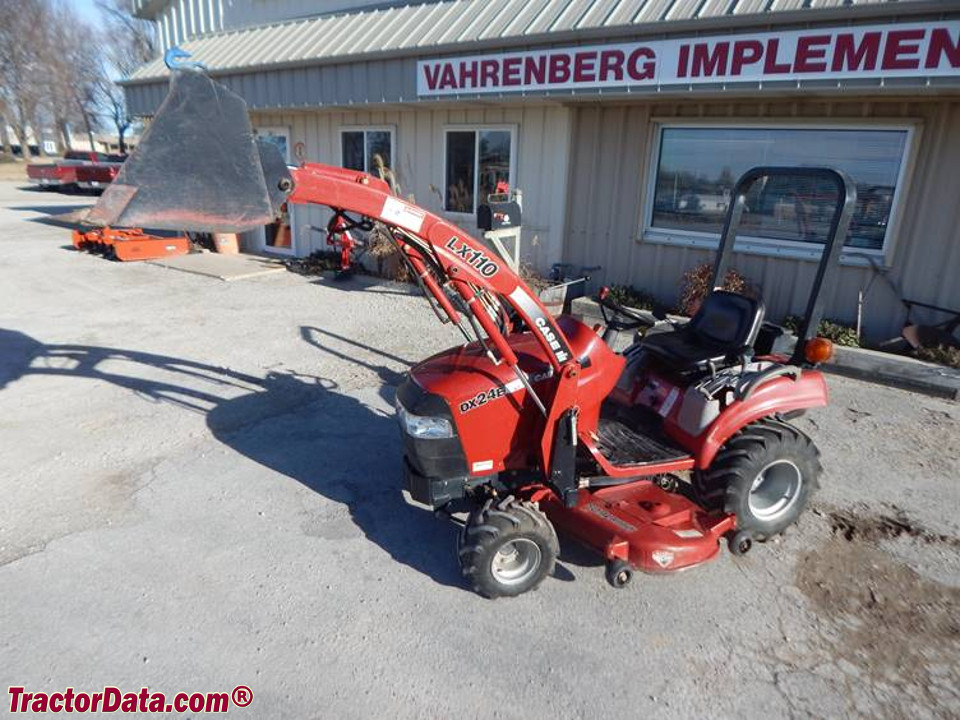

CaseIH Farmall DX24E

Name: CaseIH Farmall DX24E
Brand: CaseIH

CaseIH Farmall DX24E — DXE Series · 24 hp. Reference specifications; pending source verification.

The CaseIH Farmall DX24E is a compact tractor rated at 24 hp, making it suitable for smaller-scale operations. Manufactured in 2004, this model features a 3-cylinder diesel liquid-cooled engine, coupled to a hydrostatic transmission and four-wheel drive system. The tractor's listed weight is 600 kg, and it is designed for tasks involving areas of around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Weight

600 kg

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

24 hp

Recorded weight

600 kg

Transmissions

hydrostatic

Production years

2004-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Two-post ROPS. Canopy and soft cab optional.Reference

Variants

TZ24DAsimilar New Holland modelReference

SX24similar Shibaura modelReference

Engine

Shibaura 1.0L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine (gross)17.9 kWReference

Shibaura S773Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.0 LReference

Bore/Stroke77 x 72 mmReference

Power (gross)17.9 kWReference

Compression23:1Reference

Rated RPM3000Reference

Idle RPM1300-3225Reference

Firing order1-2-3Reference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)13.4 kWReference

Typeopen centerReference

Pump flow14.2 lpmReference

Total flow20.8 lpmReference

Steering flow7.0 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)317 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2200Reference

Dimensions

Wheelbase139 cmReference

Weight600 kgReference

Shipping weight600 kgReference

CaseIH Farmall DX24E attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
