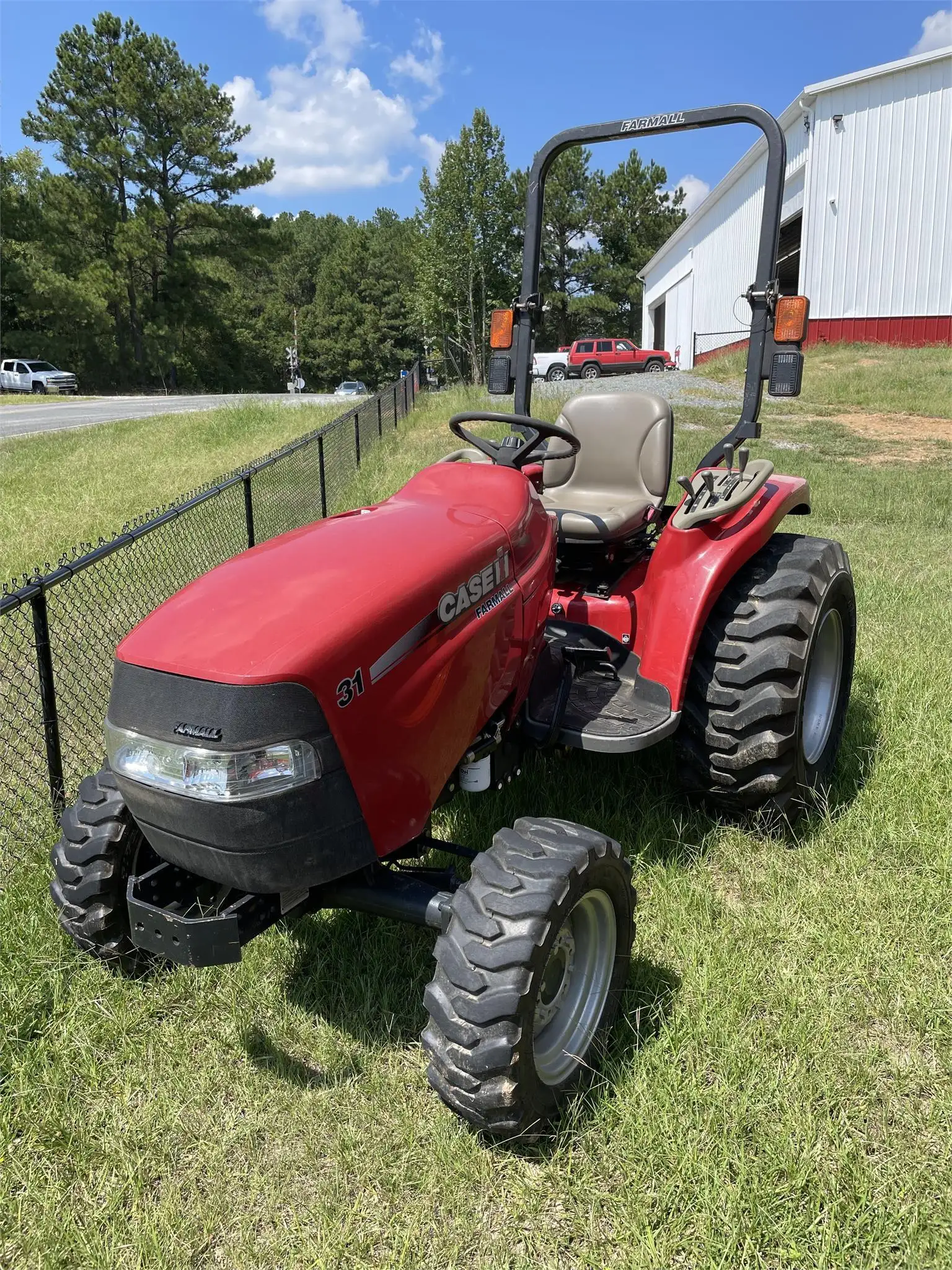

The CaseIH Farmall DX31 is a tractor model with a rated power output of 25 hp, positioning it at the lower end of its class. Manufactured between 2006 and 2008, this model is equipped with a 3-cylinder diesel liquid-cooled engine paired with four-wheel drive and a hydrostatic transmission. The operating weight of the tractor is listed as 2511 to 2544 pounds. It is suitable for use on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2511 to 2544 pounds
Catalogue coverage
Variants represented
2
Richest spec table
44 rows
Recorded power
25 hp
Recorded weight
1138 kg
Transmissions
hydrostatic
Production years
2006-2008
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerShibauraReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS.Reference
Variants
TC31DAsimilar New Holland modelReference
Engine
Shibaura 1.5L 3-cyl dieselReference
Fuel tank27.6 LReference
Engine23.1 kWReference
Shibaura N843Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power23.1 kWReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
hydrostaticReference
9-speed gearReference
Gear Weight1138 kgReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
TypegearReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
Hydro PTO (claimed)18.6 kWReference
Gear PTO (claimed)19.8 kWReference
Typeopen centerReference
Pump flow27.3 lpmReference
Total flow46.6 lpmReference
Steering flow19.3 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)741 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase160 cmReference
Weight2511 to 2544 poundsReference
Length285 cmReference
Width137 cmReference
Height (ROPS)223 cmReference
Hydro Weight1153 kgReference
CaseIH DX31 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
