Search/Tractor/CaseIH/Farmall DX33

Tractor · 2003Unverified

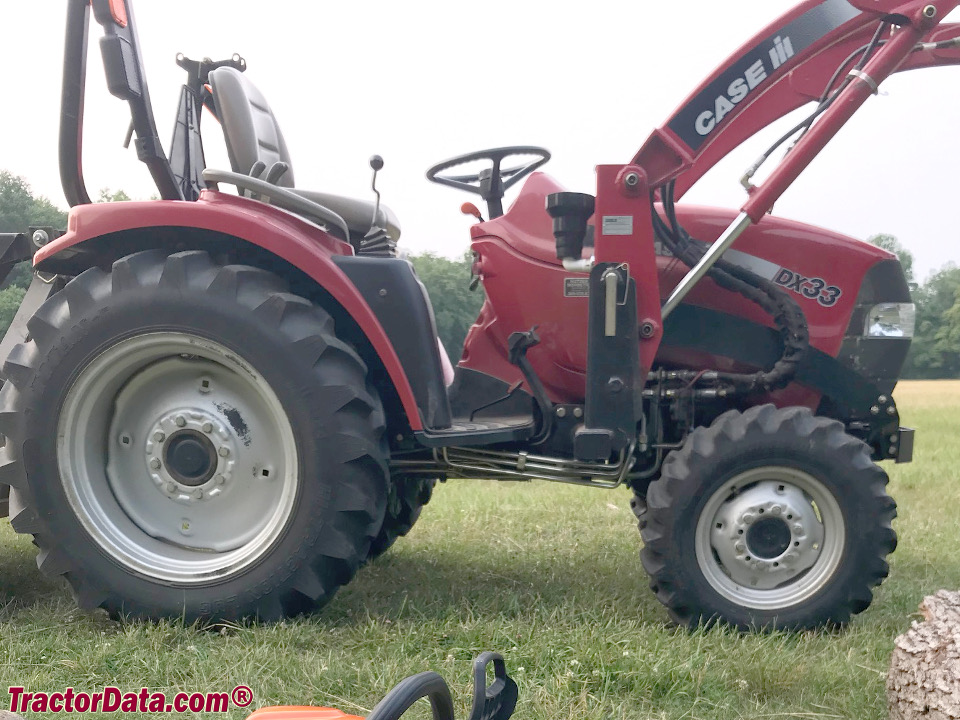

CaseIH Farmall DX33

Name: CaseIH Farmall DX33
Brand: CaseIH

CaseIH Farmall DX33 — Farmall DX Series · 33 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

33 hp

Weight

2440 to 2474 pounds

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Variants

TC33DAsimilar New Holland modelReference

Engine

Shibaura 1.5L 3-cyl dieselReference

Fuel tank27.6 LReference

Engine (gross)24.6 kWReference

ShibauraReference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

Power (gross)24.6 kWReference

Rated RPM2800Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

9-speed gearReference

Gear Weight1106 kgReference

TypehydrostaticReference

Gearsinfinite forward and reverseReference

TypegearReference

Gears9 forward and 3 reverseReference

PTO & Hydraulics

Hydro PTO (claimed)20.1 kWReference

Gear PTO (claimed)21.3 kWReference

Typeopen centerReference

Pump flow28.8 lpmReference

Total flow48.1 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)741 kgReference

Gear Rear PTOtransmisionReference

Hydro Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Gear Mid PTOtransmisionReference

Hydro Mid PTOindependentReference

Mid PTO Type2000 (1.0)Reference

Dimensions

Wheelbase160 cmReference

Weight2440 to 2474 poundsReference

Hydro Weight1122 kgReference
