Tractor · 2007Unverified

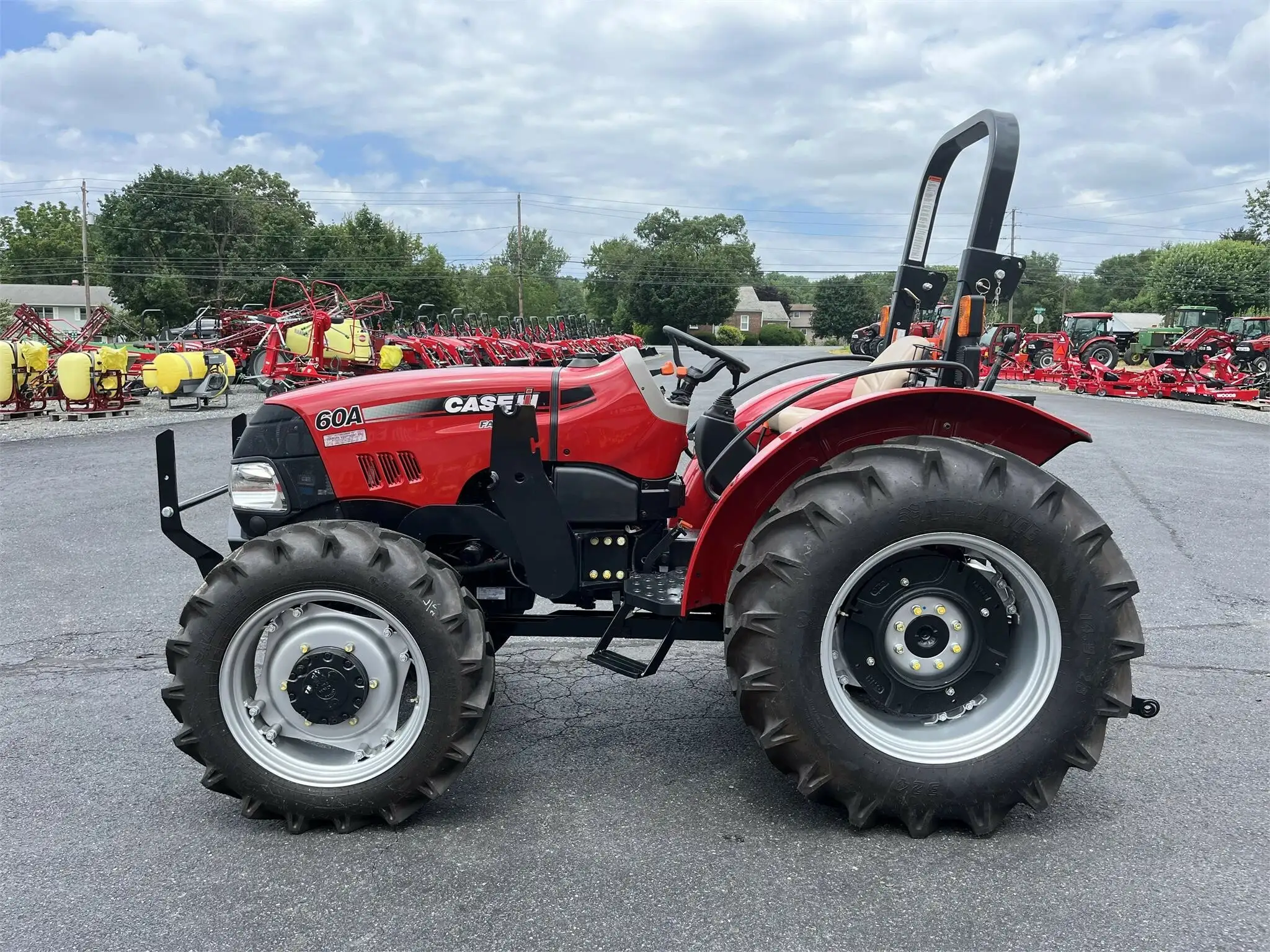

CaseIH Farmall DX60
CaseIH Farmall DX60 — DX Series · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
4209 to 4238 pounds
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerShibauraReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential wet disc brakesReference
Two-post ROPS.Reference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank51.1 LReference
Engine (gross)44.7 kWReference
ShibauraReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power (gross)44.7 kWReference
Air cleanerdual paper elementsReference
Compression22.5:1Reference
Rated RPM2800Reference
Starter volts12Reference
Power at rated engine speed38.5 kWReference
Transmission
12-speed sync shuttleReference
12-speed power shuttleReference
Typesync shuttleReference
Gears12 forward and reverseReference
Typepower shuttleReference
PTO & Hydraulics
PTO (claimed)37.3 kWReference
PTO (claimed)38.0 kWReference
PTO (tested)38.5 kWReference
Total flow66.4 lpmReference
Rear PTO Type540Reference
Power at rated PTO speed38.6 kWReference
Dimensions
Wheelbase189 cmReference
Weight4209 to 4238 poundsReference
Weight66 kgReference
Length348 cmReference
Width163 cmReference
Height (ROPS)241 cmReference
Weight1909 kgReference
Weight1922 kgReference
CaseIH DX60 attachments
backhoeReference
CaseIH BHX1114 Backhoe
Backhoe typeCaseIH BHX1114 BackhoeReference
Transport height241 cmReference
Digging depth289 cmReference
Reach from pivot378 cmReference
Loading height233 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1995 kgReference
Dipperstick force1270 kgReference
Test results
Diesel 12-speed 4WDSeptember 23, 2008 - March 11, 2009Link: Nebraska Tractor Test 1939A fileReference
PTO performanceReference
Fuel use14.4 l/hourReference
Fuel use13.2 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
