Tractor · 2012Unverified

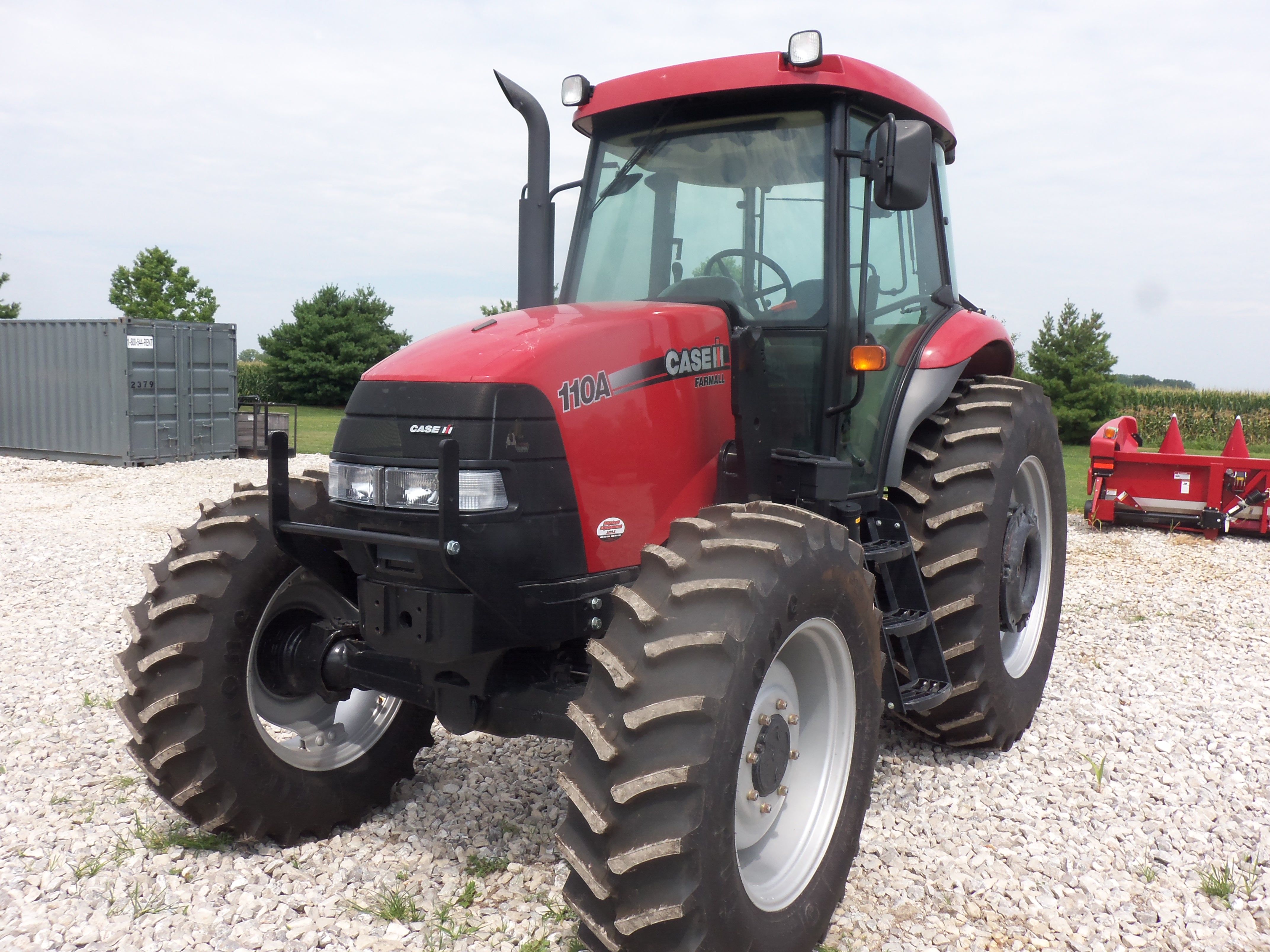

CaseIH Farmalll 110A
CaseIH Farmalll 110A — Model year 2012-20142015-2025 · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Max power
70.8 kW
Weight
9590 to 10445 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Original price$59,511 (2015 ROPS 2WD )Reference
Original price$75,809 (2015 Cab 4WD )Reference
Two- or four-wheel driveReference
Two-post ROPS. Cab available with air-conditioning.Reference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank215.0 LReference
Exhaust fluid (DEF)29.9 LReference
Engine82.0 kWReference
Drawbar (tested)59.9 kWReference
FPTReference
turbocharged intercooled dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reductionReference
Power82.0 kWReference
StarterelectricReference
Starter volts12Reference
Oil capacity10.0 LReference
Max power70.8 kWReference
Power at rated engine speed69.0 kWReference
Max power59.9 kWReference
Transmission
8-speed power shuttleReference
8-speed mechanical shuttleReference
16-speed power shuttleReference
Typepower shuttleReference
Gears8 forward and reverseReference
Typemechanical shuttleReference
TransmissionHi-LoReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)67.1 kWReference
PTO (tested)70.8 kWReference
Typeopen center with closed-center load-sensing remotesReference
Valves2 to 4Reference
Pump flow83.3 lpmReference
Rear TypeIIReference
Controldraft sensingReference
Rear lift (at 24"/610mm)3265 kgReference
Power at rated PTO speed70.5 kWReference
Dimensions
2WD Wheelbase255 cmReference
4WD Wheelbase251 cmReference
Weight9590 to 10445 poundsReference
Front tire10.00-16Reference
2WD Rear tire18.4x34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4x34Reference
4WD Standard tires (ag)Front: 14.9x24. Rear: 18.4x34Reference
Width189 cmReference
Height (ROPS)297 cmReference
Height (cab)279 cmReference
Flange rear axleReference
Bar rear axle78 by 2489 mmReference
2WD ROPS4350 kgReference
4WD ROPS4565 kgReference
2WD Cab4522 kgReference
4WD Cab4737 kgReference
Ballasted5670 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery volts12Reference
Test results
Diesel 8-speed 4WDAugust 30 - September 7, 2016Link: OCED Tractor Test 2156A fileReference
PTO performanceReference
Fuel use19.7 l/hourReference
Fuel use22.3 l/hourReference
Fuel use20.4 l/hourReference
Drawbar performanceReference
Max pull3848 kgReference
Speeds
With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
