Tractor · 2002Unverified

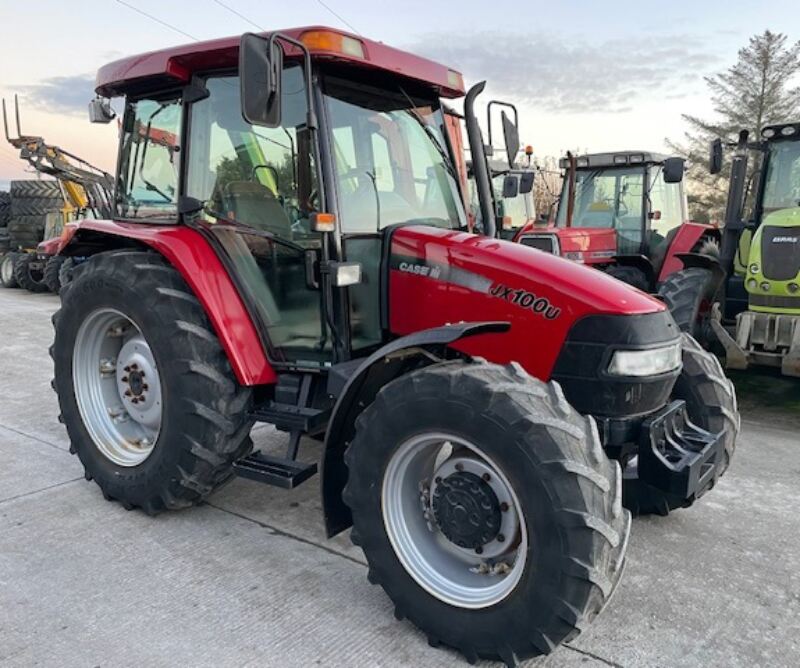

CaseIH JX100U

Name: CaseIH JX100U
Brand: CaseIH

CaseIH JX100U — JXU Maxxima Series · 92 hp. Reference specifications; pending source verification.

The CaseIH JX100U is a tractor with an output of 92 hp, placing it in the middle of its class in terms of power. Manufactured between 2002 and 2003, the JX100U features a 4-cylinder turbocharged diesel liquid-cooled engine. It is equipped with a powershift transmission and four-wheel drive, with a listed weight of 8070 to 8710 pounds. The tractor is designed for use on areas ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

92 hp

Max power

62.3 kW

Weight

8070 to 8710 pounds

Catalogue coverage

Variants represented

Richest spec table

72 rows

Recorded power

92 hp

Transmissions

24-speed two-speed power shift

Production years

2002-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in ItalyReference

Two- or four-wheel driveReference

Power steeringReference

Independent hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional.Reference

Engine

Iveco 3.9L 4-cyl dieselReference

Fuel tank126.8 LReference

Engine (gross)68.6 kWReference

IvecoReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke104 x 115 mmReference

Power (gross)68.6 kWReference

Fuel systemmechanical direct injectionReference

Air cleanerdual paper elementsReference

Pre-heatingthermostartReference

Compression16.5:1Reference

Rated RPM2500Reference

Starter volts12Reference

Max power62.3 kWReference

Power at rated engine speed61.6 kWReference

Transmission

24-speed two-speed power shiftReference

24-speed power shuttleReference

20-speed syncromeshReference

Typetwo-speed power shiftReference

Gears24 forward and 12 reverseReference

Two-speed power shift with left-hand synchronized shuttle.Reference

Typepower shuttleReference

Gears24 forward and reverseReference

Four gears (1-4) in three ranges (I, II, III) with push-button power shift and power shuttleReference

TypesyncromeshReference

Gears20 forward and 12 reverseReference

PTO & Hydraulics

PTO (claimed)61.1 kWReference

PTO (tested)62.3 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow54.9 lpmReference

Total flow75.7 lpmReference

Steering flow20.8 lpmReference

Rear TypeIIReference

Controlmechanical lower-link draft sensingReference

Rear lift3583 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Power at rated PTO speed62.0 kWReference

Dimensions

2WD Wheelbase234 cmReference

4WD Wheelbase231 cmReference

Weight8070 to 8710 poundsReference

2WD Operating3660 kgReference

4WD Operating3950 kgReference

2WD Ballasted4483 kgReference

4WD Ballasted4774 kgReference

CaseIH JX100U attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps85Reference

Battery CCA960Reference

Battery volts12Reference

Attachment overview

CaseIH LX132 loaderReference

CaseIH LX152 loaderReference

CaseIH JX100U Height

ROPS276 cmReference

Cab262 cmReference

Exhaust278 cmReference

Test results

Diesel 24-speed 4WDOctober 1, 2002 - December 1, 2003Link: OCED Tractor Test 2079 fileReference

PTO performanceReference

Fuel use18.5 l/hourReference

Fuel use17.8 l/hourReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
