Tractor · 2004Unverified

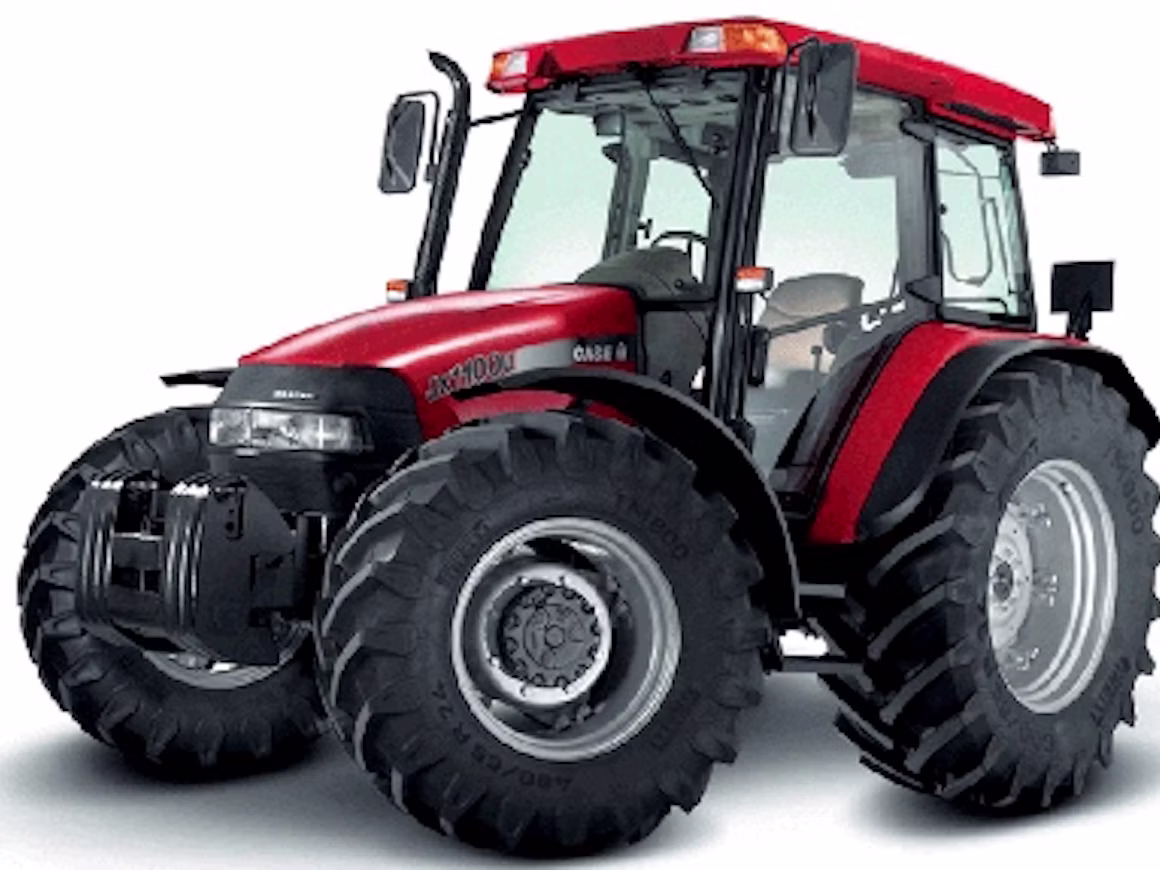

CaseIH JX1070U
CaseIH JX1070U — JXU Maxxima Series · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Weight
7826 to 8488 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Cab standard with available air-conditioning.Reference
Engine
CaseIH 4.5L 4-cyl dieselReference
Fuel tank104.8 LReference
Fuel tank127.2 LReference
Engine (gross)52.9 kWReference
CaseIHReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
Rated Power (gross)52.9 kWReference
Air cleanerdual paper elementsReference
Pre-heatinggrid heaterReference
Rated RPM2500Reference
Torque280.0 NmReference
Torque RPM1400Reference
Transmission
12-speed synchronized shuttleReference
24-speed partial power shift with power shuttleReference
20-speed synchronized shuttle with creeperReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in three ranges (I, II, III) with synchronized mechanical shuttle. Separate right-hand gear and range levers. Left-hand shuttle lever on fender.Reference
Typepartial power shift with power shuttleReference
Gears24 forward and reverseReference
Four gears (1-4) in three ranges (I, II, III) with push-button power shift and power shuttle. The reverser lever for the power shuttle is located on the steering column.Reference
Typesynchronized shuttle with creeperReference
Gears20 forward and 12 reverseReference
The creeper option adds an additional eight forward speeds to the basic 12x12 transmission.Reference
PTO & Hydraulics
Typeopen centerReference
Valves3Reference
Pump flow59.0 lpmReference
Steering flow39.4 lpmReference
Rear TypeIIReference
Rear lift4550 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000 (1.375)Reference
Engine RPM540@2199Reference
Engine RPM540E@1715Reference
Engine RPM1000@2382Reference
Dimensions
2WD Wheelbase234 cmReference
4WD Wheelbase180 cmReference
Weight7826 to 8488 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9R30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9R30Reference
2WD Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference
Length391 cmReference
Width201 cmReference
Height (cab)253 cmReference
2WD Ground clearance37 cmReference
2WD Ground clearance45 cmReference
2WD Front tread140 to 216 cmReference
4WD Front tread130 to 220 cmReference
Rear tread141 to 220 cmReference
2WD3549 kgReference
4WD3850 kgReference
Capacities
Max capacity5400 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
