Tractor · 2005Unverified

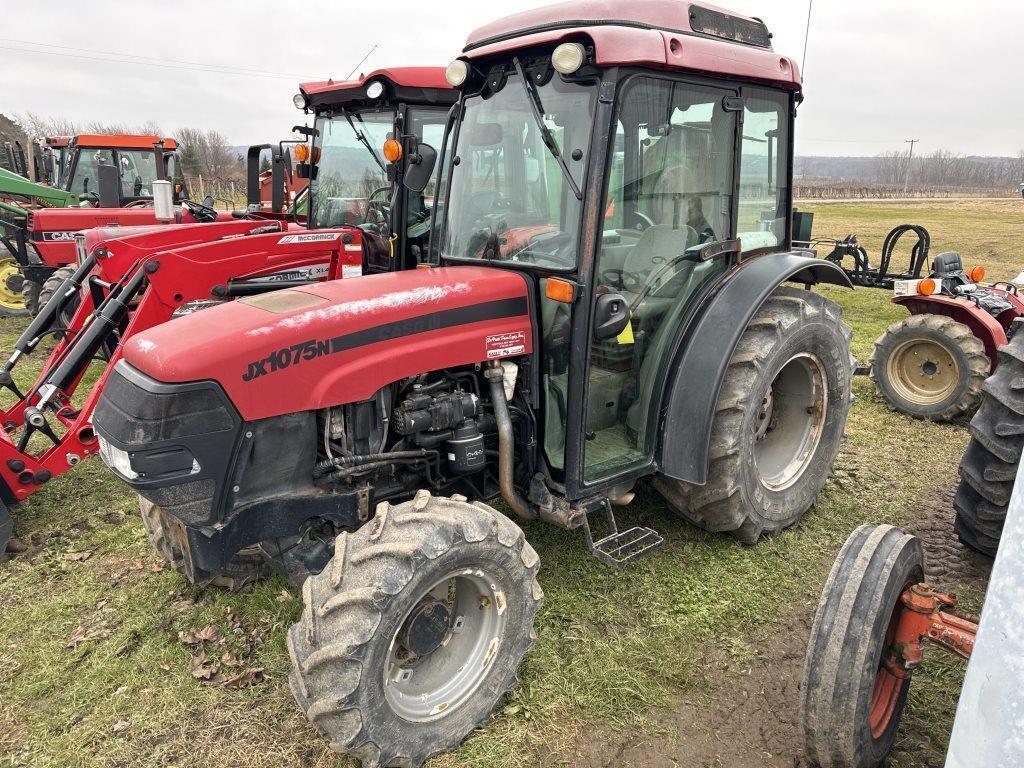

CaseIH JX1075N

Name: CaseIH JX1075N
Brand: CaseIH

CaseIH JX1075N — JXN Series · 75 hp. Reference specifications; pending source verification.

The CaseIH JX1075N is a tractor model rated at 75 hp, situated in the middle of its class for power output. Manufactured from 2005 to 2008, this model features a 3-cylinder turbocharged diesel liquid-cooled engine, transmitting power through four-wheel drive via a 16-speed gearbox. The listed operating weight ranges from 5027 to 5886 pounds. It is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

75 hp

Weight

5027 to 5886 pounds

Catalogue coverage

Variants represented

Richest spec table

64 rows

Recorded power

75 hp

Transmissions

16-speed mechanical shuttle

Production years

2005-2008

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post mid-mount foldable ROPS. Cab optional.Reference

Engine

Case IH 2.9L 3-cyl dieselReference

Fuel tank56.8 LReference

Engine (gross)55.9 kWReference

Case IHReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke99 x 129 mmReference

EmissionsTier IIReference

Power (gross)55.9 kWReference

Fuel systemmechanical direct injectionReference

Rated RPM2300Reference

Torque299.7 NmReference

Torque RPM1400Reference

Starter volts12Reference

Transmission

16-speed mechanical shuttleReference

Typemechanical shuttleReference

Gears16 forward and reverseReference

Four synchronized gears in four ranges with mechanical shuttle.Reference

PTO & Hydraulics

PTO (claimed)46.2 kWReference

Typeopen centerReference

Pressure180.0 barReference

Rear valves2Reference

2WD Pump flow46.9 lpmReference

4WD Pump flow64.0 lpmReference

2WD Total flow71.5 lpmReference

4WD Total flow88.6 lpmReference

Steering flow24.6 lpmReference

Rear TypeIIReference

Controlmechanical lower-link draft sensingReference

Rear lift1797 kgReference

Rear PTOindependentReference

Clutchmechanical dry discReference

Rear PTO Type540Reference

Dimensions

2WD Wheelbase203 cmReference

4WD Wheelbase205 cmReference

Weight5027 to 5886 poundsReference

2WD Length386 cmReference

4WD Length389 cmReference

2WD Width134 cmReference

4WD Width135 cmReference

Ground clearance26 cmReference

2WD ROPS2280 kgReference

2WD Cab2419 kgReference

4WD ROPS2522 kgReference

4WD Cab2669 kgReference

Max front axle1599 kgReference

Max rear axle3000 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps65Reference

Battery CCA730Reference

Battery volts12Reference

CaseIH JX1075N Height

Hood129 cmReference

ROPS220 cmReference

Cab230 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
