Tractor · 2004Unverified

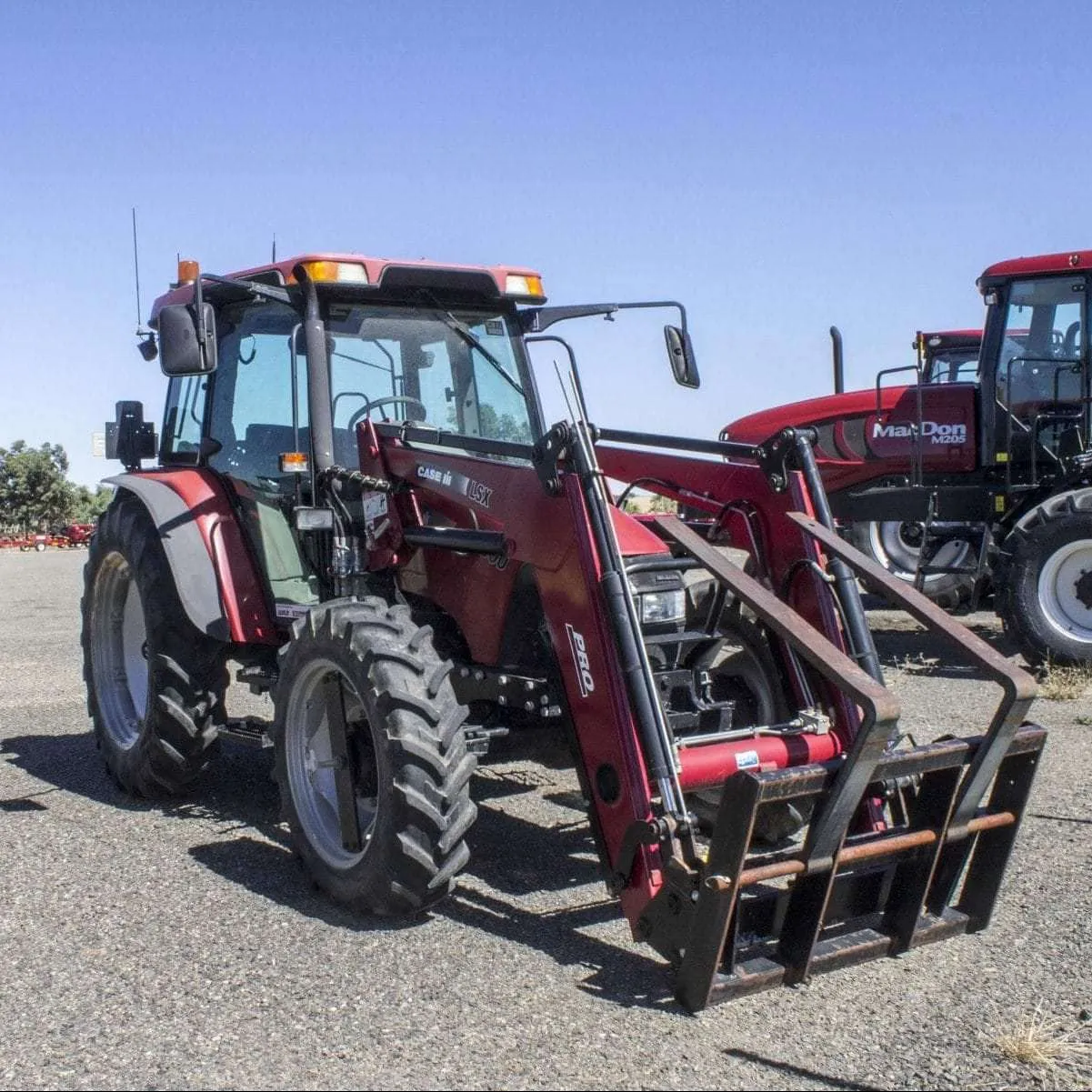

CaseIH JX1080U

Name: CaseIH JX1080U
Brand: CaseIH

CaseIH JX1080U — JXU Maxxima Series · 80 hp. Reference specifications; pending source verification.

The CaseIH JX1080U is a tractor with a rated output of 80 hp, positioning it in the middle of its class in terms of power. Manufactured from 2004 to 2008, this model features a 4-cylinder diesel liquid-cooled engine, which drives through four-wheel drive and a powershift transmission. The listed weight of the CaseIH JX1080U is 6393 to 8875 pounds. It is suitable for jobs covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

80 hp

Max power

43.4 kW

Weight

6393 to 8875 pounds

Catalogue coverage

Variants represented

Richest spec table

96 rows

Recorded power

80 hp

Transmissions

12-speed synchronized shuttle

Production years

2004-2008

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Jesi, ItalyReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Flat-platform with two-post folding ROPS. Optional cab with air-conditioning.Reference

Engine

CaseIH 4.5L 4-cyl dieselReference

Fuel tank126.8 LReference

Engine (gross)59.7 kWReference

Drawbar (tested)43.4 kWReference

CaseIHReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

Power (gross)59.7 kWReference

Fuel systemBosch direct injectionReference

Air cleanerdual paper elementsReference

Pre-heatinggrid heaterReference

Compression17.5:1Reference

Rated RPM2500Reference

Starter volts12Reference

Power at rated engine speed53.4 kWReference

Max power43.4 kWReference

Transmission

12-speed synchronized shuttleReference

24-speed partial power shift with synchronized shuttleReference

24-speed partial power shift with power shuttleReference

20-speed synchronized shuttle with creeperReference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

Four gears (1-4) in three ranges (I, II, III) with synchronized mechanical shuttle. Separate right-hand gear and range levers. Left-hand shuttle lever on fender.Reference

Typepartial power shift with synchronized shuttleReference

Gears24 forward and 12 reverseReference

Four gears (1-4) in three ranges (I, II, III) with two-speed (lo/hi) power shift. Push-button power shift located on the gear shift lever and provides a lower downshift for every forward gear. Mechanical synchronized shuttle.Reference

Typepartial power shift with power shuttleReference

Gears24 forward and reverseReference

Four gears (1-4) in three ranges (I, II, III) with push-button power shift and power shuttle. The reverser lever for the power shuttle is located on the steering column.Reference

Typesynchronized shuttle with creeperReference

Gears20 forward and 12 reverseReference

The creeper option adds an additional eight forward speeds to the basic 12x12 transmission.Reference

PTO & Hydraulics

PTO (claimed)51.5 kWReference

PTO (tested)53.4 kWReference

Typeopen centerReference

Valves2 to 3Reference

Pump flow54.9 lpmReference

Total flow75.7 lpmReference

Steering flow20.8 lpmReference

Rear TypeII/IReference

Controlmechanical lower linkReference

Controlelectronic draft control optional with cabReference

Rear lift (at 24"/610mm)2605 kgReference

Rear lift (at 24"/610mm)2923 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Engine RPM540@2200Reference

Engine RPM1000@2380Reference

Power at rated PTO speed53.8 kWReference

Dimensions

2WD Wheelbase234 cmReference

4WD Wheelbase231 cmReference

Weight6393 to 8875 poundsReference

2WD Front tread140 to 217 cmReference

4WD Front tread142 to 213 cmReference

Rear tread163 to 213 cmReference

2WD ROPS Shipping2899 kgReference

2WD cab Shipping3099 kgReference

4WD ROPS Shipping3200 kgReference

4WD cab Shipping3400 kgReference

2WD Operating3934 kgReference

4WD Operating4025 kgReference

Ballasted4830 kgReference

CaseIH JX1080U attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA960Reference

Battery volts12Reference

Attachment overview

CaseIH LX252 loaderReference

CaseIH LX232 loaderReference

CaseIH Maxxima sales literature claimed a ten-minute mounting time to attach the loader to the tractor, and five minutes to mount an attachment to the loader.Reference

CaseIH JX1080U Height

ROPS265 cmReference

ROPS213 cmReference

Cab260 cmReference

Exhaust298 cmReference

Test results

Diesel 12-speed 4WDSeptember 1 - November 1, 2004Link: OCED Tractor Test 2280 fileReference

PTO performanceReference

Fuel use18.5 l/hourReference

Fuel use18.2 l/hourReference

Drawbar performanceReference

Gear 4-I used for power test.Reference

Max pull4302 kgReference

Gear 2-I used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
