Tractor · 2004Unverified

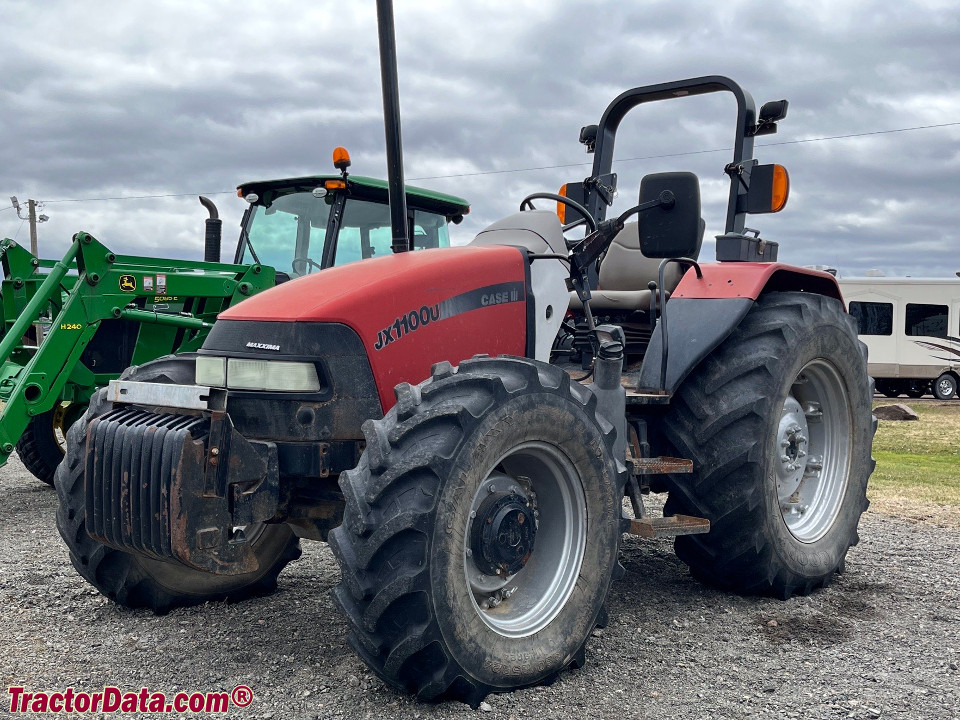

CaseIH JX1100U
CaseIH JX1100U — JXU Maxxima Series · 98 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
98 hp
Max power
52.5 kW
Weight
6834 to 9095 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Jesi, ItalyReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Flat-platform with two-post folding ROPS. Optional cab with air-conditioning.Reference
Engine
CNH 4.5L 4-cyl dieselReference
Fuel tank126.8 LReference
Engine (gross)73.1 kWReference
Drawbar (tested)52.5 kWReference
CNHReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
Power (gross)73.1 kWReference
Fuel systemBosch direct injectionReference
Pre-heatinggrid heaterReference
Compression17.5:1Reference
Rated RPM2500Reference
Starter volts12Reference
Power at rated engine speed65.1 kWReference
Max power52.5 kWReference
Transmission
12-speed synchronized shuttleReference
24-speed partial power shift with synchronized shuttleReference
24-speed partial power shift with power shuttleReference
20-speed synchronized shuttle with creeperReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in three ranges (I, II, III) with synchronized mechanical shuttle. Separate right-hand gear and range levers. Left-hand shuttle lever on fender.Reference
Typepartial power shift with synchronized shuttleReference
Gears24 forward and 12 reverseReference
Four gears (1-4) in three ranges (I, II, III) with two-speed (lo/hi) power shift. Push-button power shift located on the gear shift lever and provides a lower downshift for every forward gear. Mechanical synchronized shuttle.Reference
Typepartial power shift with power shuttleReference
Gears24 forward and reverseReference
Four gears (1-4) in three ranges (I, II, III) with push-button power shift and power shuttle. The reverser lever for the power shuttle is located on the steering column.Reference
Typesynchronized shuttle with creeperReference
Gears20 forward and 12 reverseReference
The creeper option adds an additional eight forward speeds to the basic 12x12 transmission.Reference
PTO & Hydraulics
PTO (claimed)63.4 kWReference
PTO (tested)65.1 kWReference
Typeopen centerReference
Valves2 to 3Reference
Pump flow54.9 lpmReference
Total flow75.7 lpmReference
Steering flow20.8 lpmReference
Rear TypeII/IReference
Controlmechanical lower linkReference
Controlelectronic draft control optional with cabReference
Rear lift (at 24"/610mm)2605 kgReference
Rear lift (at 24"/610mm)2923 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Engine RPM540@2200Reference
Engine RPM1000@2380Reference
Power at rated PTO speed65.7 kWReference
Dimensions
2WD Wheelbase234 cmReference
4WD Wheelbase231 cmReference
Weight6834 to 9095 poundsReference
2WD Front tread140 to 217 cmReference
4WD Front tread142 to 213 cmReference
Rear tread173 to 213 cmReference
2WD3959 kgReference
4WD4125 kgReference
2WD ROPS Shipping3099 kgReference
2WD cab Shipping3299 kgReference
4WD ROPS Shipping3400 kgReference
4WD cab Shipping3599 kgReference
Ballasted4930 kgReference
CaseIH JX1100U attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA960Reference
Battery volts12Reference
Attachment overview
CaseIH LX252 loaderReference
CaseIH LX232 loaderReference
CaseIH Maxxima sales literature claimed a ten-minute mounting time to attach the loader to the tractor, and five minutes to mount an attachment to the loader.Reference
CaseIH JX1100U Height
ROPS265 cmReference
ROPS213 cmReference
Cab260 cmReference
Exhaust298 cmReference
Test results
Diesel 12-speed 4WDSeptember 1 - 30, 2004Link: OCED Tractor Test 2278 fileReference
PTO performanceReference
Fuel use21.2 l/hourReference
Fuel use20.8 l/hourReference
Drawbar performanceReference
Gear 2-II used for power test.Reference
Max pull4592 kgReference
Gear 2-I used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
